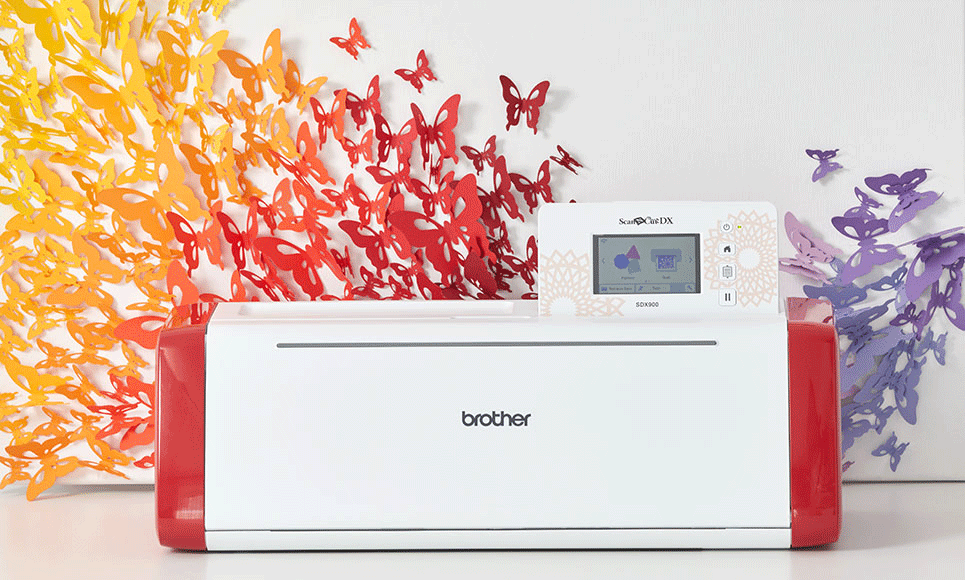

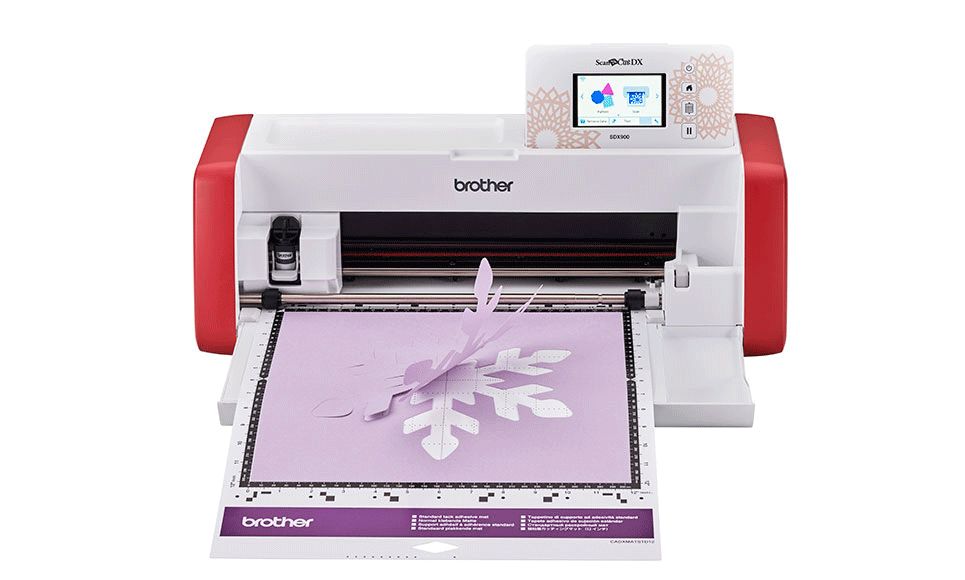

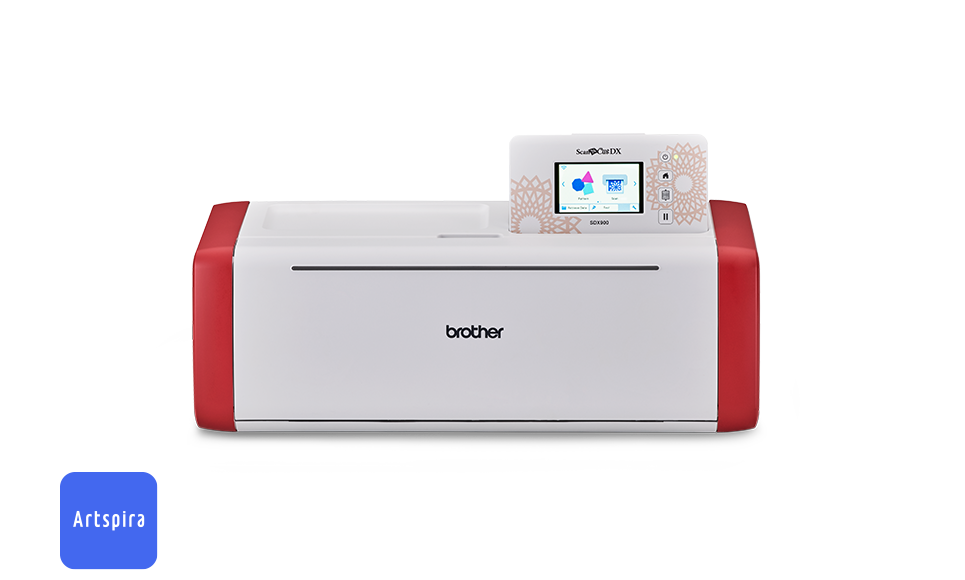

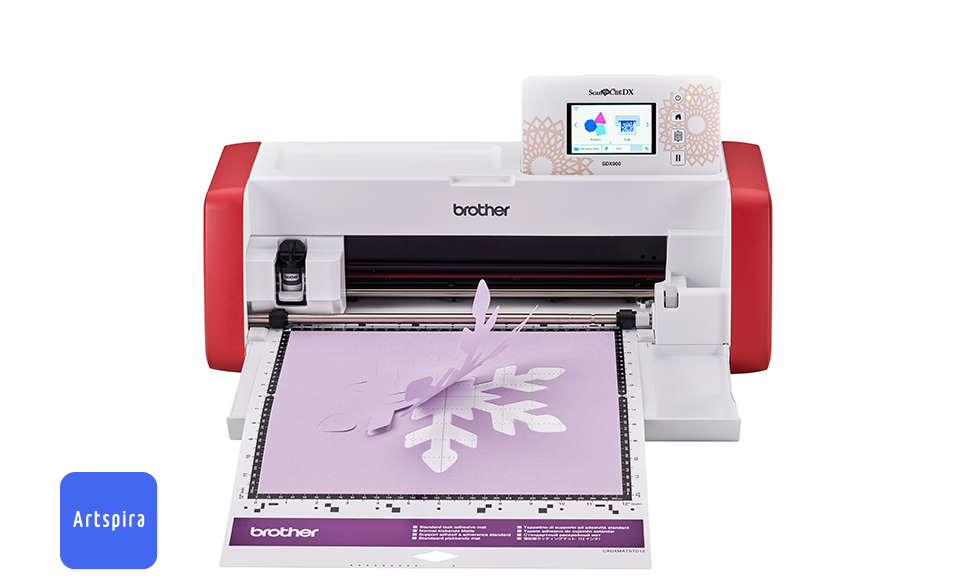

ScanNCut SDX900 Home and hobby cutting machine

Scan it. Convert it. Cut it. Create it! Enter the creative world of ScanNCut, the only home and hobby cutting machine with a built-in scanner. No more cutting dies, no need for a PC. The ScanNCut is a totally standalone electronic cutting machine. Create and edit directly on the LCD touchscreen - the possibilities are virtually endless.

Overview

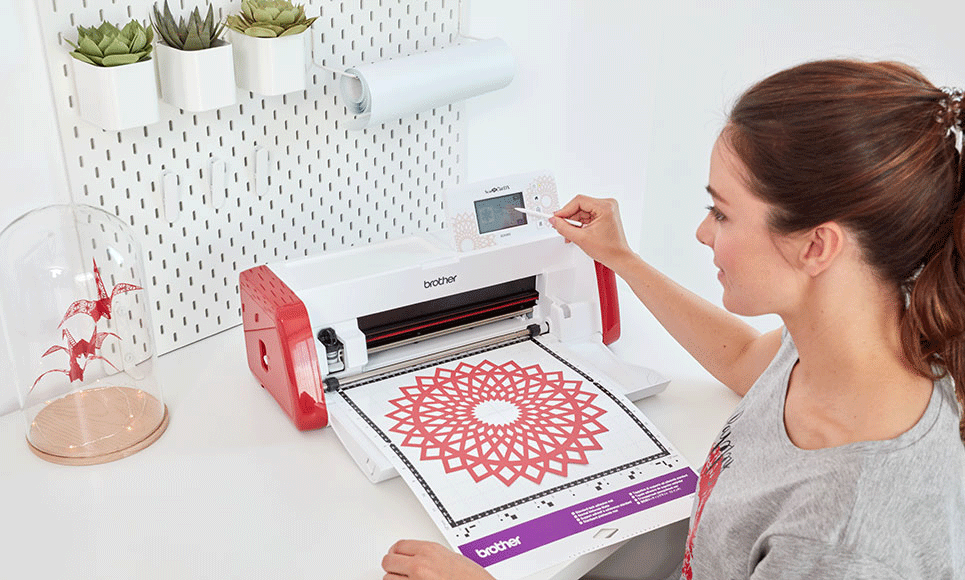

Creativity at your fingertips - The ScanNCut SDX900 is the ultimate electronic cutting machine.

Spend less time on laborious hand cutting, and spend more time on being creative! With the ScanNCut SDX900 you can scan in any image or hand drawing using the 600dpi built-in scanner, and then precisely cut the shapes and outlines. All in a few simple steps. You can even edit the design onscreen - enlarge, reduce, mirror, weld, duplicate... the options are endless.

Cut materials up to 3mm thick with the fully automatic blade - no need to fiddle with pressure settings. The auto blade automatically detects the thickness of your material and adjusts the pressure automatically, eliminating guesswork and miscuts.

The SDX900 comes with 682 built-in designs and 7 fonts. Create your own unique designs either onscreen, or with our free software CanvasWorkspace.

Expand your craft even further by adding premium functions and other accessories, like the roll feeder, rhinestone kit, paper piercing, embossing and much more. Additional design collections, like Tattered Lace and Disney ranges are also available additionally.

For in-depth information on ScanNCut uses, try our FAQ Support Page and our video gallery section or start your creative journey by having a look at our free projects. For help and advice on setting up your machine, visit support.brother.com, and you can also take a look at our accessories page to make sure you have everything you need to get started.

Key Features

  • Large 3.47" (8,8cm) LCD touchscreen
  • Built-in scanner
  • Totally standalone - no PC needed
  • 682 built-in designs, 7 fonts
  • Up to 3mm cutting depth
  • Fully automatic blade
  • 11.7" (297mm) width cutting area
  • Wireless LAN connectivity
  • Precise, faster, quieter cutting

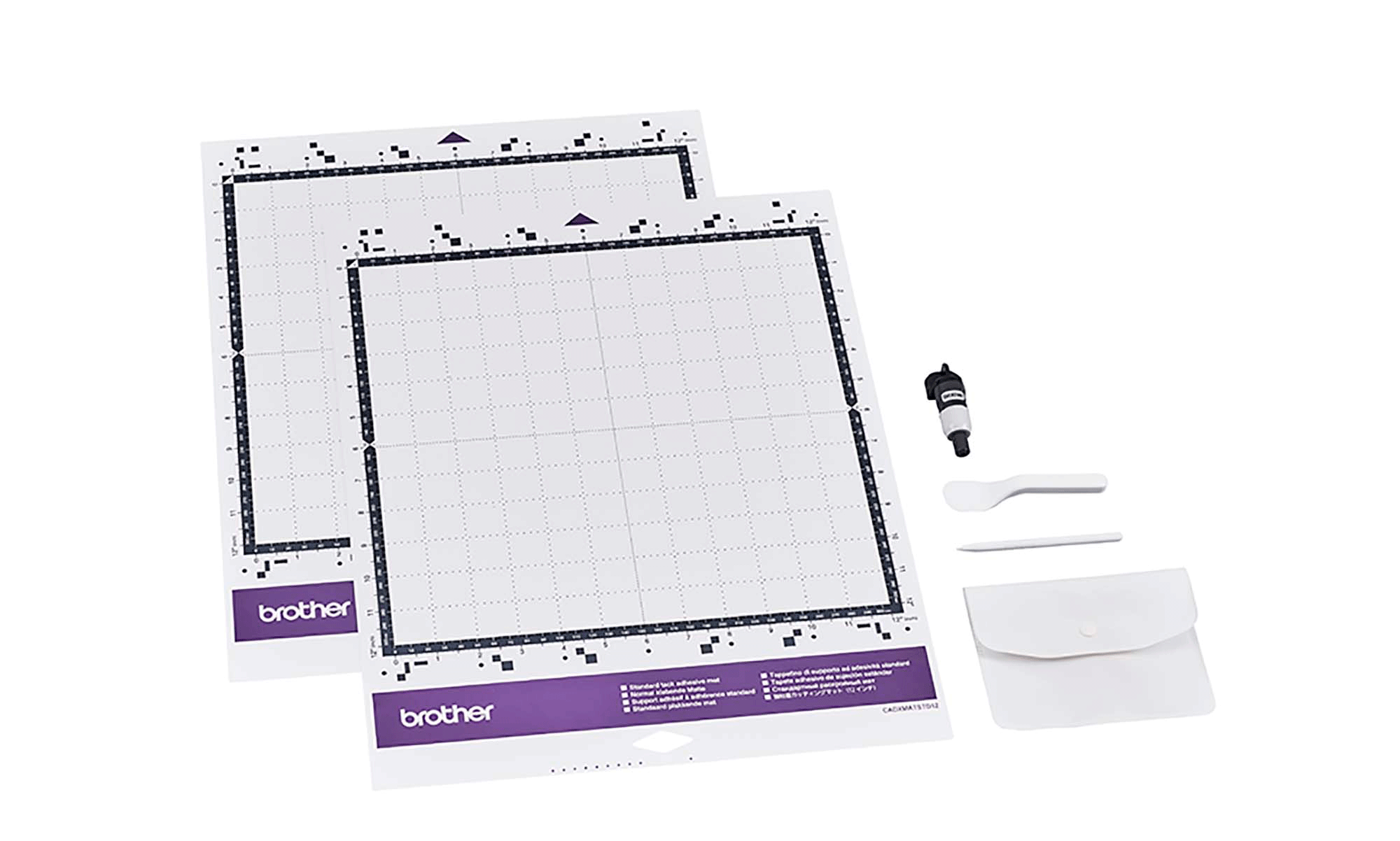

What's in the box

  • 3mm automatic blade and holder
  • 2 x Standard tack mat 12 x 12" (305 x 305mm)
  • Spatula
  • Accessory pouch
  • Touch pen
  • Sample cardstock (1pc navy)

Features in Depth

Stand-alone

Create and edit your designs, all on the bright colour 3.47 (8,8cm) touchscreen. The extra-large non-glare touchscreen makes it easier than ever to edit, zoom and customise your designs with no PC or mobile device required.



Blade sensor technology

Saving you time and making your cutting effortless the fully automatic blade system takes the away any guesswork, automatically detecting the correct cutting depth and pressure needed for the perfect cut. For even finer results you can manually tweak the settings to suit you.



Built-in scanner

Scan virtually anything – a handmade drawing, a magazine clipping, cherished photos and more – create endless cut and draw designs and save to the machine’s memory.



Scan-to-cut-data

Scan, edit and create your own designs and save it as a cut file. ScanNCut will automatically create cut lines, which can be used to cut, draw or emboss*. *Additional purchase needed for embossing function



Direct cut & half cut

Scan your material, create the outline cuts and select your design straight from the surface to cut out. Remove the hassle of hand-cutting designs from your favourite papers and fabrics.

Also great for cutting personalised stickers, with the handy half cut function.



600dpi Scan to USB

Scan in your favourite photos, drawings or large patterns on the generous scanning area of up to 297 x 297mm.



Background scanning

Don’t let small or awkward pieces of card and fabric go to waste. With our background scanning function you can place your design exactly on your leftovers, saving you mis-cuts, time and money!



Cut up to 3 mm

Cut thicker materials like felt and foam up to 3 mm. The new 3 mm cutting blade gives you the freedom to explore a variety of materials, all with one versatile blade.



WLAN connection

Wireless connection allows you to send designs directly from your free CanvasWorkspace account.
No need for cables or USB flash drives.



Built-in patterns

Packed with 7 fonts and 682 built-in designs, including 100 quilt patterns, the SDX900 has something for every person, project or occasion. Choose from basic shapes, intricate designs, borders, quilt patterns, fonts and much, much more.



SVG data readability

With the ScanNCut SDX900 there is no need to convert SVG files before cutting out, as the machine can read them directly. More time crafting, less time converting.



Fabric cutting*

Calling all quilters! Cut perfect quilting and patchwork pieces at the touch of a button. ScanNCut can even draw in and cut your desired seam allowance, so you can spend time on what you really enjoy – creating to your heart’s content.
*additional purchase of High Tack Adhesive Support sheets and Thin Fabric Blade necessary



Pen draw *

With ScanNCut you can change your cut file – whether it’s from a previous scanned image or a built-in design – then recreate the design into a drawing in a matter of seconds, with a selecton of fill patterns to choose from..

*additional purchase of Pen Holder or Universal Pen Holder necessary



Matt-less loading for Roll Stickers*

With the roll feeder function, you can now load and cut rolled sticker material without the

need for a mat.

*Additional purchase of roll feeder necessary. CanvasWorkspace (PC or Mac version) is necessary to be installed when you use Roll Feeder function



Never stop creating

With our extensive range of accessories, Brother and the ScanNCut DX will help you take your creative projects to the next level. Check out the rhinestone kit, printable sticker kit, line and region embossing kit, stencil sheets and so much more.







Supplies and Accessories

Specification Details

Specification Details

Machine Size Compact and Lightweight
Product Type Crafting, ScanNCut, Small Business Use
Skill Level Beginner, Expert, Intermediate, Small Business Use
Deep Cut Blade Yes
Full Auto Blade Yes
Standard Blade Yes
Thin Fabric Blade (auto blade) Yes
Direct Connection via USB Cable (cable not included) Yes
Wireless Interface WLAN Connection
USP Port for Media 1 USB Port
Scanner Resolution (optical) 600dpi
Scanning Area 305 x 305 mm (12" x 12")
Display Type LCD Colour Touchscreen
Display Size 3.47"
Auto Power Off Yes
Sleep Mode Yes
Adjustable Holder Pressure Automatic
Blade Depth Adjustment Automatic
Built-In Designs 682
Maximum Thickness for Cutting Auto Blade: 3mm, Deep Cut Blade: 1.5mm, Standard Blade: 0.7mm, Thin Fabric Auto Blade: 3mm
Built-In Fonts 7
Built-In Quilt Patterns 100
SVG Via Canvas Workspace or Direct Import to the Machine
Scanning Area 11.7 x 11.7" (297 x 297mm)
Edit On-screen Yes
Max Cutting Depth 3mm
Scanner Yes
Standalone/PC Peripheral Standalone
WLAN Capability Yes
Accessories Brayer (CABRY1), Precision Tweezers (CATWZ1), Scraper Tool (CASCP1), Spatula and Hook Set (CASPHK1)
Roll Feeder Roll Feeder (CADXRF1), Roll Feeder Cutter (CADXRFC1)
Consumables Auto Blade 3mm (CADXBLD1), Auto Blade Holder (CADXBLD1), Colour Pen - 6pcs (CAPEN1), Deep Blade Holder (CAHFL1), Deep Cut Blade (CABLDF1), Erasable Pen - 2pcs (CAPEN 2), Fabric Mat (CADXMATF12), High Tack Sheet for Fabric Cutting (CASTBL2), Iron-on Contact Sheet (CASTBL1), Low Tack Mat 12 x 12" "/305 x 350mm (CADXMATLOW12), Low Tack Mat 12 x 24" "/305 x 610mm (CADXMATLOW24), Pen Holder (CAPENHL1), Scanning Mat 12 x 24"/305 x 610mm (CADXMATS24), Small Barrel Pen Holder (CAUNIPHL2), Standard Blade Holder (CAHLP1), Standard Cut Blade (CABLDP1), Standard Mat 12 x 24" "/305 x 610mm (CADXMATSTD24), Standard Mat 12 x 12" "/305 x 350mm (CADXMATSTD12), Thin Fabric Auto Blade (CADXBLDQ1), Thin Fabric Auto Blade Holder (CADXHLDQ1), Vinyl Auto Blade (CADXBLDV1)
Design Collections 3D model Pattern USB4 (CAUSB4), Applique Pattern USB2 (CAUSB2), Box Collection (CAPPNP02), Calligraphy Font Collection - Gothic and Uncial (CADXCLGFP01), Christmas Decoration Collection (CACDCP01), Design Collection 1 for Roll Feeder (CADXRFDP01), Disney Frozen Ⅱ Design Collection for Vinyl Auto Blade (CADXDSNP11), Disney Alice in Wonderland Design Collection (CADSNP09), Disney Cinderella and Ariel Paper Craft Collection (CADSNP07), Disney Rapunzel and Aurora Paper Craft Collection (CADSNP08), Home Decor USB3 (CAUSB3), Paper Piercing Design Collection (CADXPPDP01), Quilt Pattern USB1 (CAUSB2), Rhinestone Design Collection (CARSDP01), Tattered Lace Collection 1 (CATTLP01), Tattered Lace Collection 10 (CATTLP10), Tattered Lace Collection 11 (CATTLP11), Tattered Lace Collection 12 (CATTLP12), Tattered Lace Collection 13 (CATTLP13), Tattered Lace Collection 14 (CATTLP14), Tattered Lace Collection 15 (CATTLP15), Tattered Lace Collection 2 (CATTLP02), Tattered Lace Collection 3 (CATTLP03), Tattered Lace Collection 4 (CATTLP04), Tattered Lace Collection 5 (CATTLP05), Tattered Lace Collection 6 (CATTLP06), Tattered Lace Collection 7 (CATTLP07), Tattered Lace Collection 8 (CATTLP08), Tattered Lace Collection 9 (CATTLP09)
Premium Functions Print to Cut for CanvasWorkspace (CADXPRNTCUT1), ScanNCut Canvas Premium Pack No. 1 (Enhanced Image Tracing / 125 design patterns) (CACVPPAC1), ScanNCut Canvas Premium Pack No. 2 (Enhanced Image Tracing / 25 design patterns) (CACVPPAC2), ScanNCut Link Plug-in for Adobe® Illustrator® (CADXSNCLNK1)
Premium Kits and Refills Acrylic Stamp Block Set (CASTPBLS1), Calligraphy Pen Set (CADXCLGPEN1), Calligraphy Starter Kit (CADXCLGKIT1), Disney Vinyl Auto Blade Kit (CADXVBDSNKIT1), Embossing Mat (CAEBSMAT1), Embossing Metal Sheets (Bronze) (CAEBSBMS1), Embossing Metal Sheets (Silver) (CAEBSSMS1), Embossing Starter Kit (CAEBSKIT1), Embossing Template Sheets (CAEBSTS1), Embossing Tool Set (CAEBSKIT1), Foil Blue (CAFTSBLU1), Foil Glue Pens (CAFTGP1), Foil Gold (CAFTSGLD1), Foil Green (CAFTSGRN1), Foil Pink (CAFTSPNK1), Foil Red (CAFTSRED1), Foil Silver (CAFTSSIL1), Foiling Starter Kit (CAFTKIT1), Paper Piercing (CADXPPKIT1), Paper Piercing Mat 12" × 12" (305 mm × 305 mm) (CADXPPMAT1), Paper Piercing Tools (CADXPPTL1), Printable Mini Sticker Sheet Set (CAPSSMINI1), Printable Sticker Sheet Set (CAPSS1), Printable Sticker Starter Kit (CAPSKIT1), Rhinestone Sheet Set (CARSSH1), Rhinestone Starter Kit (CARSKIT1), Rhinestone Transfer Sheets (CARSTS1), Stamp Sheets (CASTPS1), Stamp Starter Kit (CASTPKIT1), Stencil sheet (CASTCL1), Vinyl Auto Blade Kit (CADXVBKIT1)
CanvasWorkspace for PC and Mac Yes
CanvasWorkspace for Web Yes
Size 531 x 215 x 173 mm
Weight 6 kg
Warranty Brother 2 year Warranty *Commercial use only 1 year warranty
