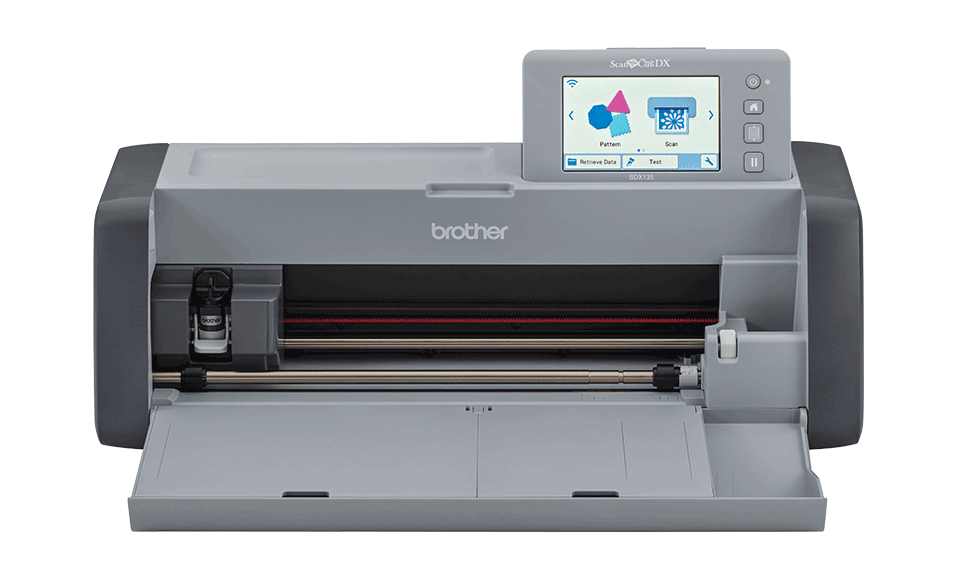

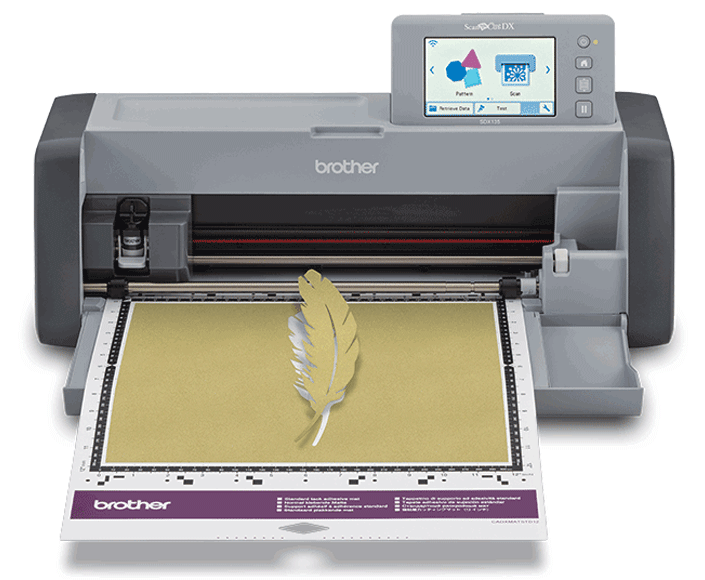

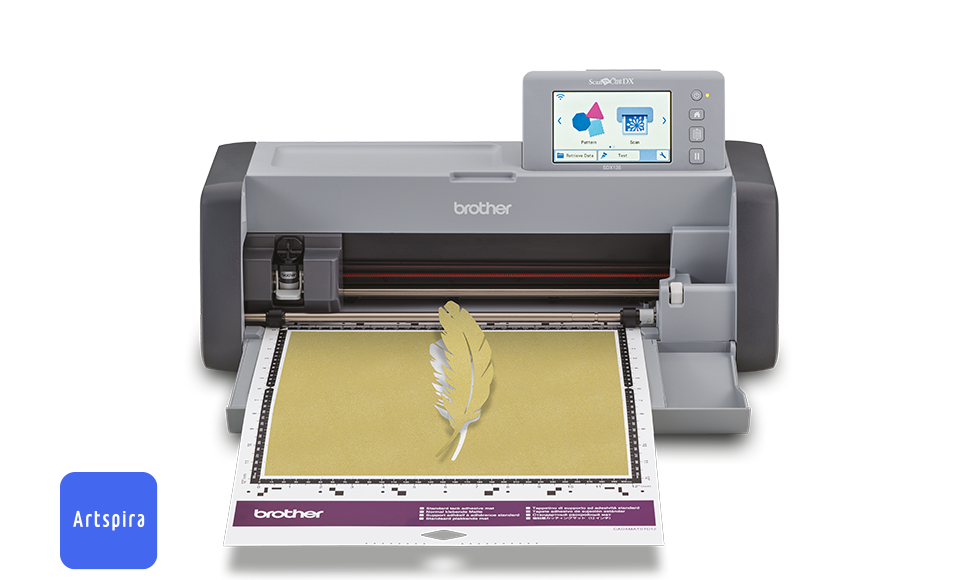

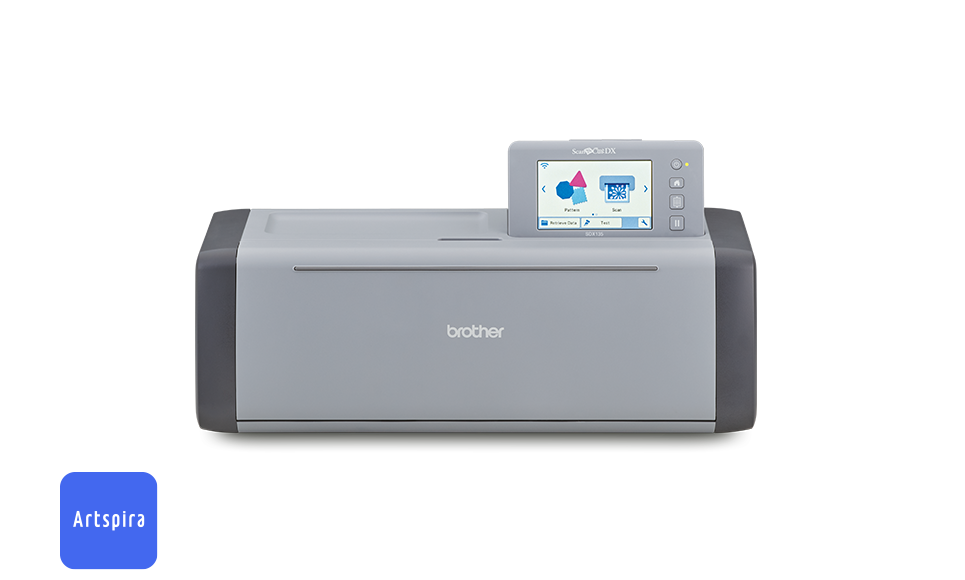

SDX135 ScanNCut Machine

Brother ScanNCut Electronic cutting machine with built-in scanner. Scan, Draw and Cut images, logos and slogans for all your personalisation needs. The SDX135 makes an ideal low-cost desktop addition to your decoration business.

Overview

Now, the only cutting machine with a built-in scanner has Brother's revolutionary auto-blade sensor technology, an incredible time-saving feature that detects material thickness to cut precise custom and built-in patterns from card, vinyl, felt, leather and foam without adjusting the blade. Add optional accessories (sold separately) to use your SDX135 to make Rhinestone Transfers, Stamps, Fabric Appliques and Stencils. Plus, mat-less cutting is now a reality with the optional roll feeder for vinyl. It’s never been easier to see it, scan it, cut it and create it.

For help and advice on setting up your ScanNcut machine, visit support.brother.com, and you can also take a look at our accessories page for our rhinestone, foiling and embossing, calligraphy, stickers and stencils kits, plus so much more.

Key Features

  • Extra-large LCD touchscreen – 5” / 12.7cm
  • Built-in scanner - scanning area 12" x 12" (305 mm x 305 mm)
  • Totally standalone – no PC needed
  • 682 re-sizable built-in designs
  • 9 built-in fonts

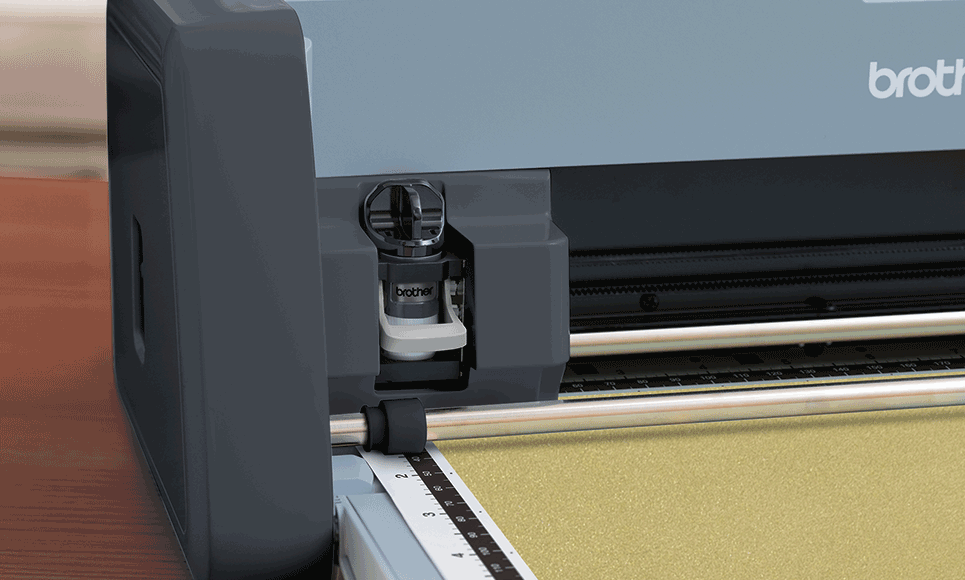

  • Up to 3mm cutting depth with fully automatic blade
  • Scan your design and convert it into cut or draw data
  • 11.7” (297 mm) width cutting area
  • Wireless LAN connectivity
  • 2 year warranty *Commercial use only 1 year warranty

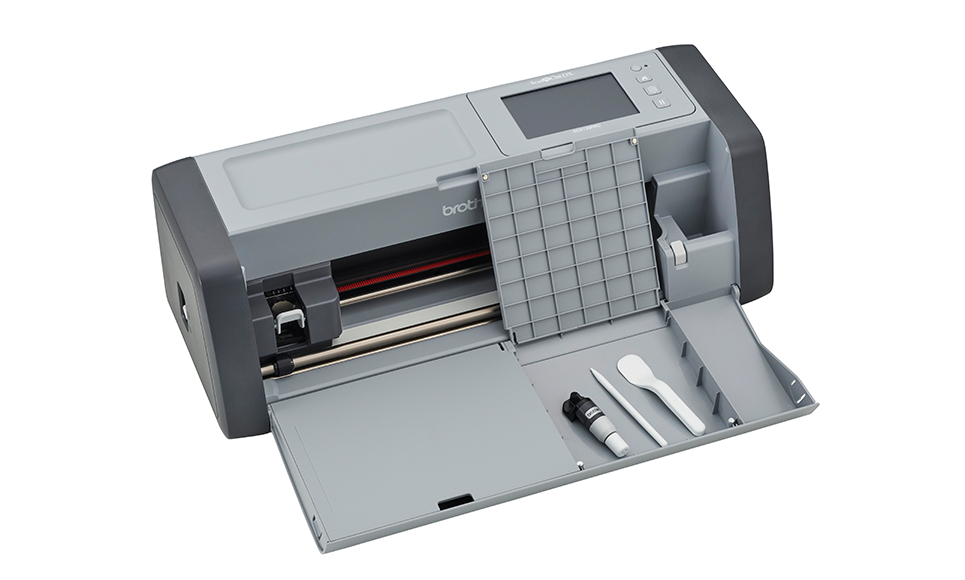

What's in the box

  • 3mm automatic cut blade holder
  • 3mm automatic cut blade
  • Standard tack mat 12" x 12" (305 mm x 305 mm)
  • Spatula
  • Accessory pouch
  • Touch pen

Specification Details

Specification Details

Machine Size Compact and Lightweight
Product Type Crafting, ScanNCut, Small Business Use
Skill Level Beginner, Expert, Intermediate, Small Business Use
Included Accessories Accessories Pouch, Auto Blade 3mm (CADXBLD1), Auto Blade Holder (CADXBLD1), Power Cord, Quick Reference Guide, Spatula, Touch Pen
Deep Cut Blade Yes
Full Auto Blade Yes
Standard Blade Yes
Thin Fabric Blade (auto blade) Yes
Direct Connection via USB Cable (cable not included) Yes
Wireless Interface WLAN Connection
Scanner Resolution (optical) 600dpi
Scanning Area 12 x 24" (305 x 610 mm)
Display Type LCD Colour Touchscreen
Auto Power Off Yes
Sleep Mode Yes
Adjustable Holder Pressure Automatic
Blade Depth Adjustment Automatic
Built-In Designs 682
Built-In Fonts 9
Cutting Area 11.7 x 11.7" (297 x 297mm), 11.7 x 24" with optional mat (297 x 610mm)
Maximum Thickness for Cutting Auto Blade: 3mm, Deep Cut Blade: 1.5mm, Standard Blade: 0.7mm, Thin Fabric Auto Blade: 3mm
SVG Via Canvas Workspace or Direct Import to the Machine
Edit On-screen Yes
Max Cutting Depth 3mm
Scanner Yes
Standalone/PC Peripheral Standalone
WLAN Capability Yes
Accessories Brayer (CABRY1), Precision Tweezers (CATWZ1), Scraper Tool (CASCP1), Spatula and Hook Set (CASPHK1)
Consumables Auto Blade 3mm (CADXBLD1), Auto Blade Holder (CADXBLD1), Colour Pen - 6pcs (CAPEN1), Deep Blade Holder (CAHFL1), Deep Cut Blade (CABLDF1), Erasable Pen - 2pcs (CAPEN 2), High Tack Sheet for Fabric Cutting (CASTBL2), Iron-on Contact Sheet (CASTBL1), Pen Holder (CAPENHL1), Standard Blade Holder (CAHLP1), Standard Cut Blade (CABLDP1), Thin Fabric Auto Blade (CADXBLDQ1), Thin Fabric Auto Blade Holder (CADXHLDQ1)
Design Collections 3D model Pattern USB4 (CAUSB4), Applique Pattern USB2 (CAUSB2), Home Decor USB3 (CAUSB3), Quilt Pattern USB1 (CAUSB2), Tattered Lace Collection 1 (CATTLP01), Tattered Lace Collection 2 (CATTLP02), Tattered Lace Collection 3 (CATTLP03), Tattered Lace Collection 4 (CATTLP04)
Premium Functions ScanNCut Canvas Premium Pack No. 1 (Enhanced Image Tracing / 125 design patterns) (CACVPPAC1), ScanNCut Canvas Premium Pack No. 2 (Enhanced Image Tracing / 25 design patterns) (CACVPPAC2)
Premium Kits and Refills Acrylic Stamp Block Set (CASTPBLS1), Embossing Mat (CAEBSMAT1), Embossing Metal Sheets (Silver) (CAEBSSMS1), Embossing Metal Sheets (Bronze) (CAEBSBMS1), Embossing Starter Kit (CAEBSKIT1), Embossing Template Sheets (CAEBSTS1), Embossing Tool Set (CAEBSKIT1), Foil Blue (CAFTSBLU1), Foil Glue Pens (CAFTGP1), Foil Gold (CAFTSGLD1), Foil Green (CAFTSGRN1), Foil Pink (CAFTSPNK1), Foil Red (CAFTSRED1), Foil Silver (CAFTSSIL1), Foiling Starter Kit (CAFTKIT1), Printable Mini Sticker Sheet Set (CAPSSMINI1), Printable Sticker Sheet Set (CAPSS1), Printable Sticker Starter Kit (CAPSKIT1), Rhinestone Sheet Set (CARSSH1), Rhinestone Starter Kit (CARSKIT1), Rhinestone Transfer Sheets (CARSTS1), Stamp Sheets (CASTPS1), Stamp Starter Kit (CASTPKIT1), Stencil sheet (CASTCL1)
Roll Feeder Roll Feeder (CADXRF1), Roll Feeder Cutter (CADXRFC1)
CanvasWorkspace for PC and Mac Yes
CanvasWorkspace for Web Yes
Warranty Brother 2 year Warranty *Commercial use only 1 year warranty
