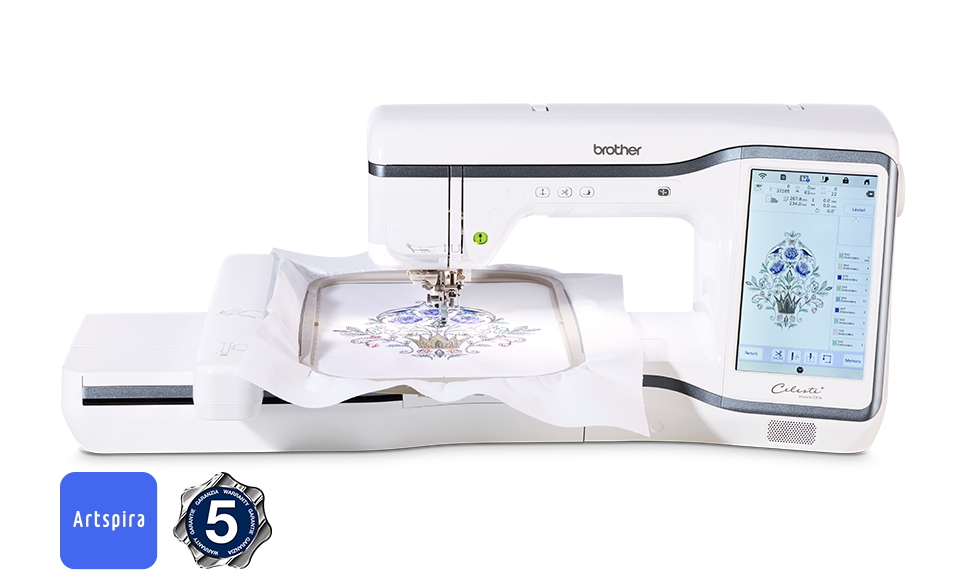

Celeste Innov-is CX1e embroidery machine

Embroidery is your game, and you’re clearly leading the way in your chosen craft. That’s why the Celeste CX1e has been built for serious embroiderers like you. We’ve created a machine that’s full of cutting-edge embroidery innovation, while leaving out the fuss.

Overview

Your embroidery is your art, which is why we’ve built the Celeste for serious crafters like you. This machine brings you the best of Brother’s embroidery innovation, giving you precise, fast stitch outs that really let your creative side stand out.

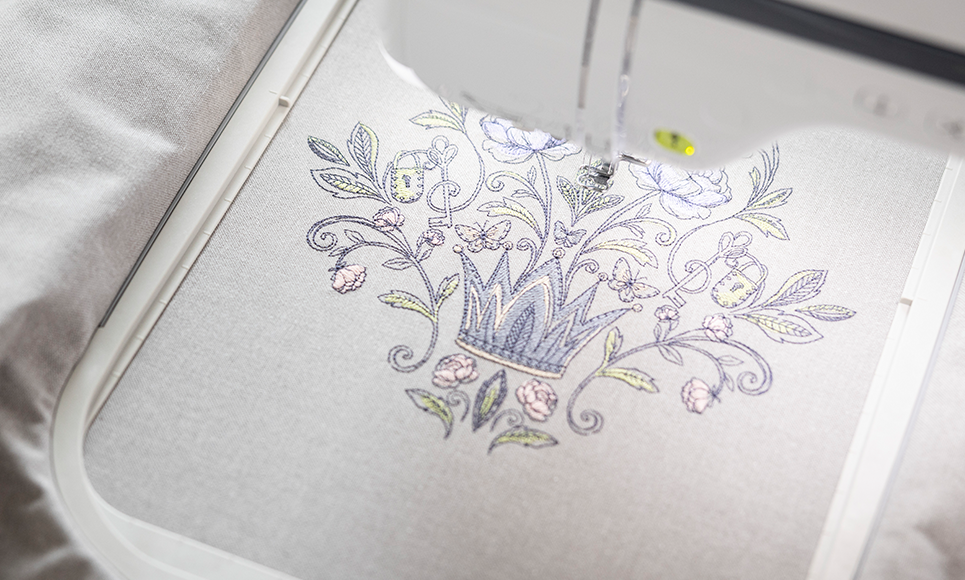

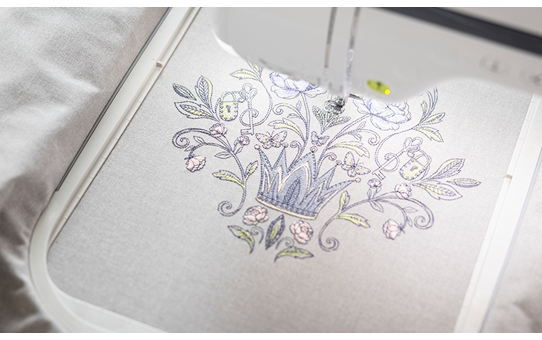

Every Brother Celeste CX1e has an extra-large embroidery area of 360 x 240mm (14 x 9.5”), so you can see your designs come alive before your eyes.

If you need some inspiration, there are 523 built-in patterns (17 of which are in 5 sizes L/M/S/SS/XS), 26 embroidery fonts and 22 craft patterns, which you can combine, flip and rotate. There are also 140 decorative frames and over 27 decorative buttonhole designs.

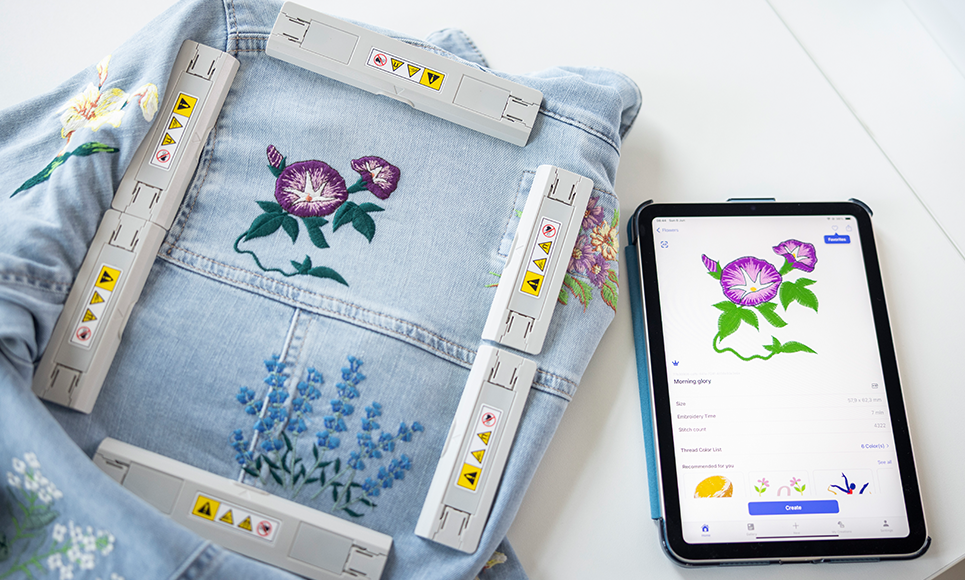

The USB ports and WLAN wireless connectivity let you send your own embroidery designs, and those you’ve purchased, to your machine at the touch of a button. Celeste users can take their imagination to the next level with Brother’s Artspira mobile design app – access a huge library of designs, draw your own embroidery, convert your own images into embroidery patterns, buy Disney-inspired embroidery patterns and much more*!

With a generous 10.1” HD LCD touchscreen, colour sorting, advanced colour shuffling, multi-brand colour palettes, and text editing you can quickly personalise and perfect. Use the Matrix Copy feature to stitch multiples of the same pattern in the same hoop. Easy Echo and Deco fill let you add decorative textures with just the touch of a button. Don’t want to stitch out part of a design – use the Celeste’s No Sew feature!

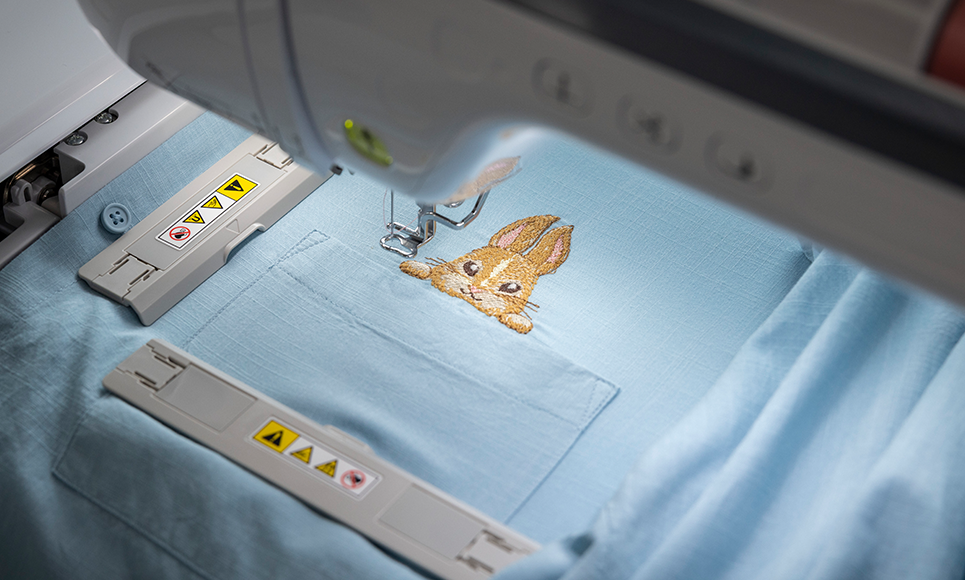

Achieve nothing less than absolute precision with the needle drop LED pointer, which will show you exactly where your embroidery will start. Position embroidery patterns along sewing lines, above pockets and along plackets with the two point positioning feature.

Work smarter, not harder with the Celeste’s built-in innovation – advanced auto needle threader, jump stitch trimmer, auto tension, independent bobbin winder, auto presser foot lift, upper and lower thread sensors, Start/stop button and more. Be alerted when it’s time to change the thread or when your project is complete with the My Stitch Monitor App.

Isn’t it time you got serious about your embroidery?

For help and advice on setting up your embroidery machine, visit support.brother.com, and you can also take a look at our accessories page to make sure you have everything you need to get started. Or visit our Video Gallery for more feature videos.

(*Artspira is Brother’s mobile embroidery, cutting and printing design app which is free to download and use. However, some features require in-app purchases or a subscription to Artspira+).

Key Features

  • Extra-large embroidery area: 360 x 240mm (14 x 9.5”)
  • 523 built-in embroidery designs, plus 140 frames, and 26 fonts
  • Fast – up to 1050spm embroidery speed
  • Precise – LED pointer embroidery foot and two-point positioning function
  • Stitch to Block function – change size of embroidery while keeping the stitch density

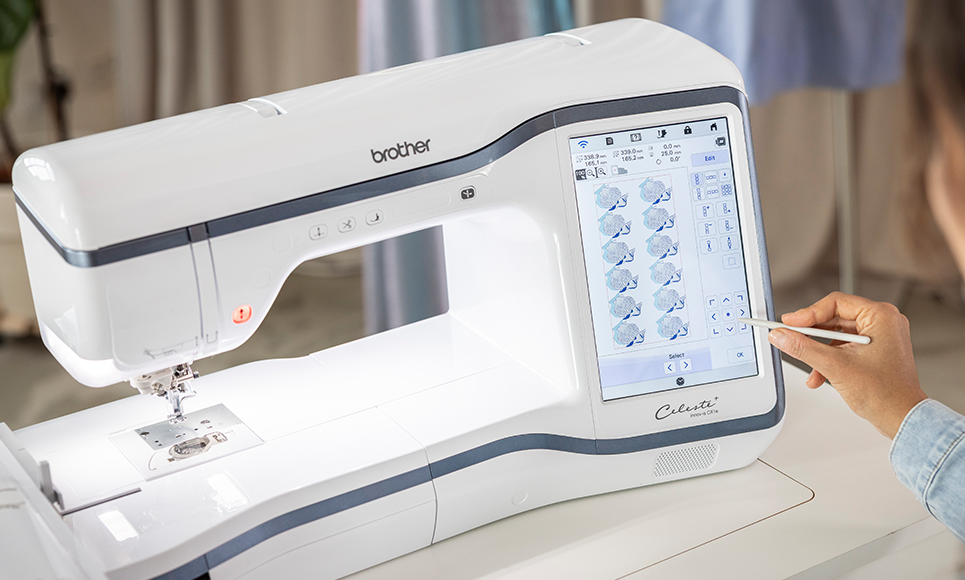

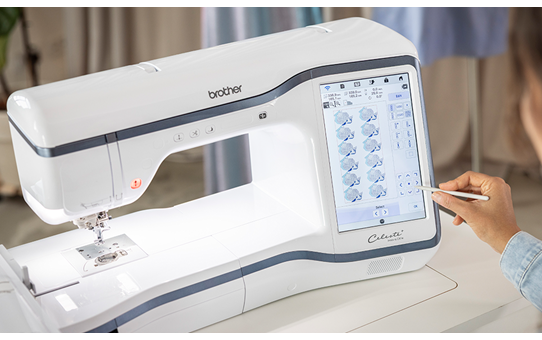

  • Matrix setting – automatically place repeated designs for the perfect layout
  • Advanced colour shuffling and colour sorting
  • Auto jump stitch trimmer and auto needle threader
  • Wireless connectivity and 2 USB ports – making it easy to import designs
  • 5-year warranty

What's in the box

  • Embroidery foot “W+” with LED pointer (on machine)
  • Needle set
    - 75/11 6 needles: ball point needle for embroidery
  • Bobbin × 10 (one in machine)
  • Seam ripper
  • Scissors
  • Cleaning brush
  • Screwdriver (small)
  • Screwdriver (large)
  • Disc-shaped screwdriver
  • Spool cap (small)
  • Spool cap (medium) × 2 (one is on machine)
  • Spool cap (large)
  • Thread spool insert (mini king thread spool)
  • Vertical spool pin
  • Bobbin clip × 10
  • Spool felt (on machine)
  • Spool net × 2
  • Embroidery needle plate cover
  • Stylus
  • Bobbin case (no colour on the screw)
  • Bobbin cover (on machine)
  • Embroidery frame with decal set
    - 36 cm (H) × 24 cm (W) (approx. 14 inches (H) × 9 1/2 inches (W))
  • Embroidery frame with decal set
    - 18 cm (H) × 13 cm (W) (approx. 7 inches (H) × 5 inches (W))
  • Embroidery bobbin thread (#90, white)
  • Stabilizer material
  • Accessory bag
  • Operation manual
  • Embroidery design guide

Features in depth

Embroidery Features

Embroidery area
Large 14 x 9.5” / 360 x 240mm embroidery area.

Embroidery speed
Embroidery up to 1,050 stitches per minute.

Built-in designs
523 built-in embroidery designs, plus 140 frames 22 craft patterns and over 27 styles of decorative buttonholes.

Built-in fonts
Built-in 26 embroidery fonts (24 alphabet and 2 Cyrillic).

Text edit functions

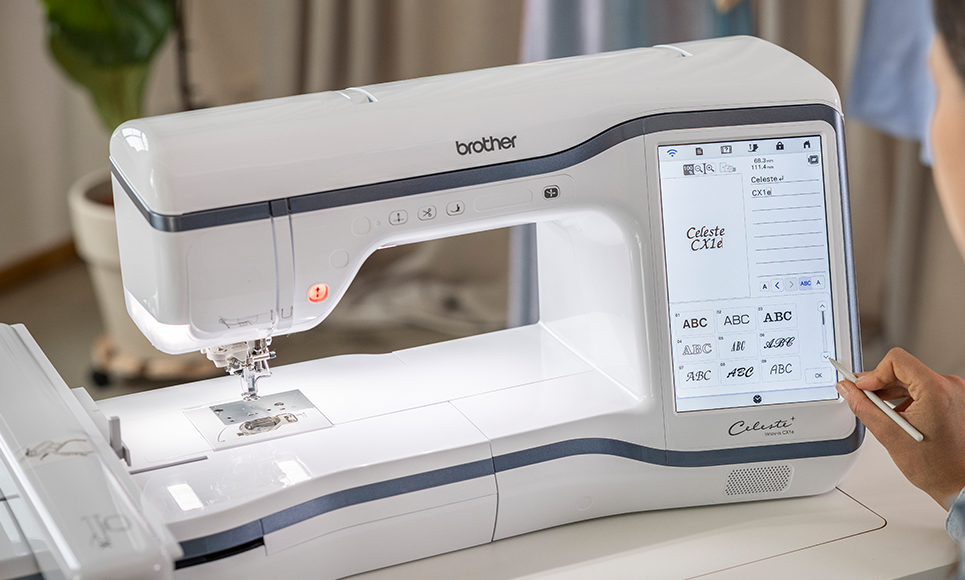

Simplified user interface for text input and editing, with various editing capabilities such as curving, arraying and space adjustment.

Font sizes
S/M/L size for font designs.

Built-in frame designs

140 frame pattern combinations.

Thread trimming
Jump stitch thread trimming with thread wiper.

Density
On-screen auto density adjustment (Stitch-To-Block) available for embroidery and letters.

LED pointer
Laser pointer for precise pattern placement.

Advanced editing functions
Design editing, flip designs horizontally, pattern rotating (0.1, 1, 10 and 90 degrees), drag and drop operation, zoom up to 200%.

Basting
Embroidery basting.

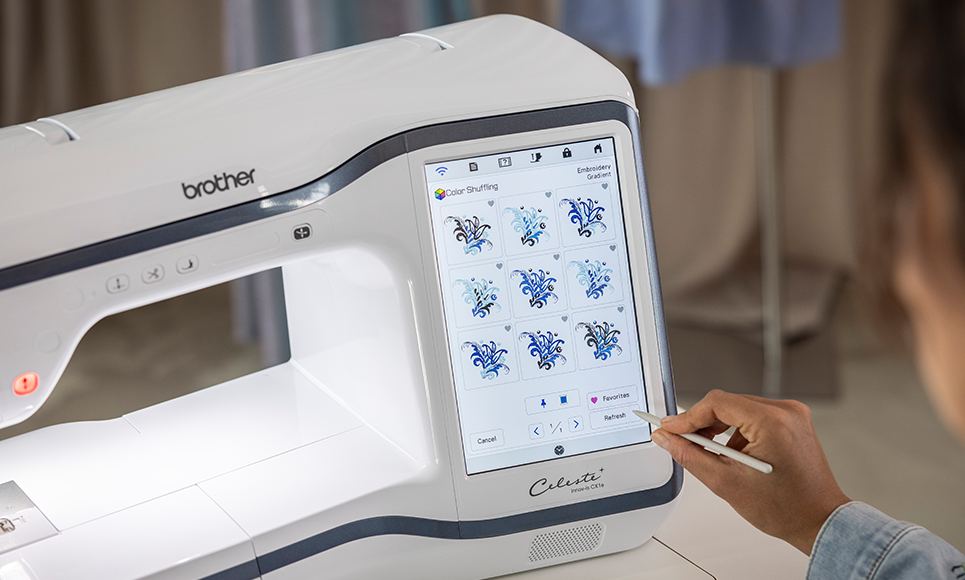

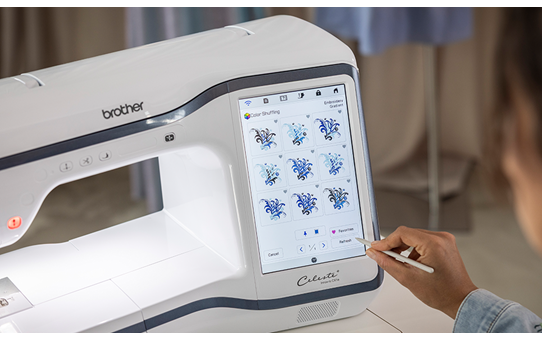

Colour shuffling

Choose from your favourite thread brands with more colour variations, pinning, and favourite mark capability.

Stippling
No-fuss stippling in embroidery edit.

Selecting designs
Advanced multiple design selection.

Colour change
Direct touch button for changing colours of embroidery patterns.

Resume function
Resume your embroidery at the exact spot where you stopped in case of a power failure or accidental interruption.

Appliqué creator
Built-in Appliqué Creator; create multiple appliqués in one hoop with automatic best-placement repetition.

Optimised colour sorting
Quickly sort colours in different designs for optimised stitching order and to minimise thread changes.

Frame detection
Automatic embroidery frame size detection.

Progress bar
View the progress of an embroidery pattern or individual colour and use to move forwards/backwards through the design.

Thread palettes
Select various thread brands for built-in and external designs and save up to nine of your favourite combinations.

Included frames
Two standard frames, included – 360 x 240mm (14 x 9.5”) and 180 x 130mm (7 x 5”).



General Features

Lighting
Almost 11” of full-spectrum lighting around the needle with five adjustable brightness settings including off.

Needle threader
Easy to use, automatic needle threading system.

Bobbin winder
Independent bobbin winder system with adjustable winding speed.

Wireless
Wireless LAN capability for exchange of embroidery data with PE-Design 11 and Brother BE Embroidery Studio software, mobile apps like Artspira and My Stitch Monitor, and updates.

Thread tension
Automatic thread tension.

Thread cutter
Trims upper and lower threads automatically.

Presser foot
Automatic presser foot lift and extra high lift.

Thread sensors
Gives you a warning when your upper and lower threads are running low.

Teaching movies
Wide selection of built-in tutorial videos and MP4 playability.

Start/stop button
Ergonomic large start/stop button.

Environment
Save energy with the Eco and Deep Sleep modes.

LCD Display

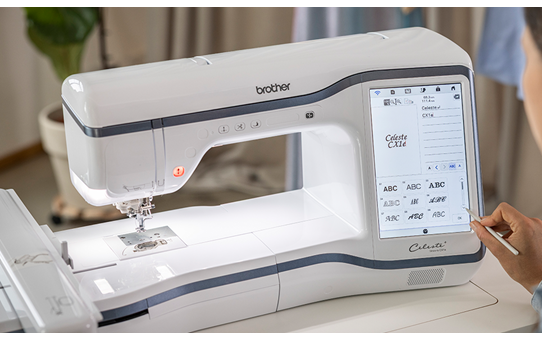

Large and clear 10.1” (800 x 1280px) built-in HD LCD display.

Intuitive user interface
Easy-to-use screen layout and realistic preview of selected embroidery patterns.

USB connectivity
Two high-speed ports, can connect by mouse as well as optional external USB embroidery card reader.

Multilingual operational languages
12 built-in languages.

Safety features
Easily disengage needle to make changing presser feet and needles safer and lock the screen to avoid any accidental stitch changes.

Updates
Automatic software update capability.

Specification Details

Specification Details

Machine Size X-Large
Product Type Embroidery, Small Business Use
Skill Level Expert, Small Business Use
Bobbin Type Horizontal
Machine Type Electronic
Insertion of Bobbin Quick Set Bobbin
Instructional Manual PDF Viewer Yes
Lighting 7 LEDs
Number Of Needles 1
Design Database Transfer app for Windows PC Yes
My Stitch Monitor App Yes
USB Port 2 Hosts (2.0/2.0) / 0 Slave
Wi-LAN Function Yes
Wireless firmware updates Yes
Display Size 10,1"
Stitch Selection LCD Touchscreen
Type of Screen High-Resolution IPS LCD-Touchscreen
Built-in Embroidery Frame Patterns 140 (10 shapes x 14 stitch types)
Built-In Lettering Styles (Embroidery) 26(24 Alphabet, 2 Cyrillic)
Built-In Patterns 523
Colour Shuffling Yes
Creating a Custom Thread Table Yes
Echo Quilting Around the Motif Button Yes
Embroidery Area in mm 360 x 240 (14 x 9.5")
Embroidery Frame Clearance for Bobbin Change Yes
Embroidery Positioning Function LED pointer
Font Editing Functions/Multiple Lines and Alignment (L-C-R) L-C-R
Font Size Selection (L-M-S) Yes
Frames Included 180 x 130 mm (7 x 5”), 360 x 240 mm (14 x 9.5”)
Jump Stitch Trim Yes
LED Pointer Embroidery foot included
Max Embroidery Speed (Stitches per Minute) 1050
Multiple Line Text Input Yes
New UI (Slide Scroll Operation) Yes
Number of Hoops (Standard Accessory) 2
Number of Spool Stands 2
On Screen Video Tutorials Yes
Pattern - Size, Change Rotation & Mirror Yes
Realistic Preview of Patterns Yes
Single Colour Pattern Converter Yes
Thread Colour Sorting Yes
Eco Mode (Auto Power Off/Sleep Mode) Yes
Warranty Brother 5 year Warranty *Commercial use only 1 year warranty
Adjustable Thread Tension Automatic
Automatic Thread Cutter Yes
Bobbin Winder Independant
Lower Thread Sensor Yes
Needle Threading System Automatic
Upper Thread Sensor Yes
Machine Dimension (mm) 612x324x348
Weight (kg) 15.3
