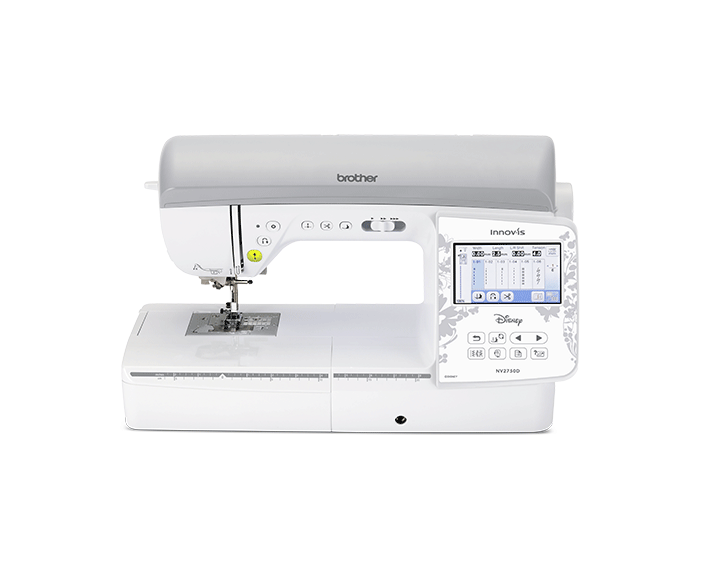

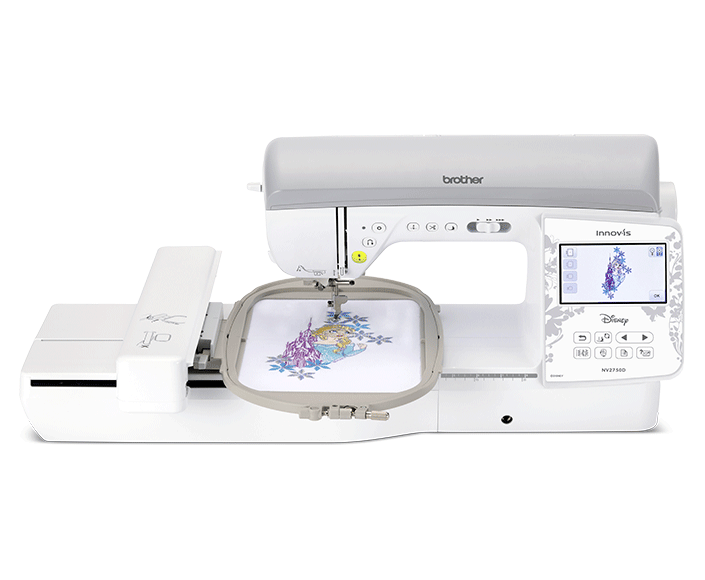

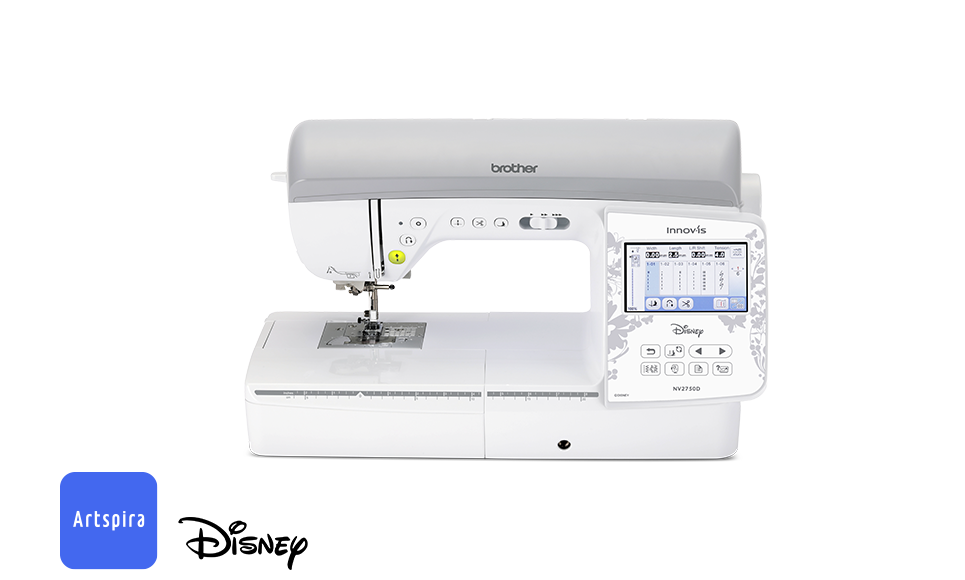

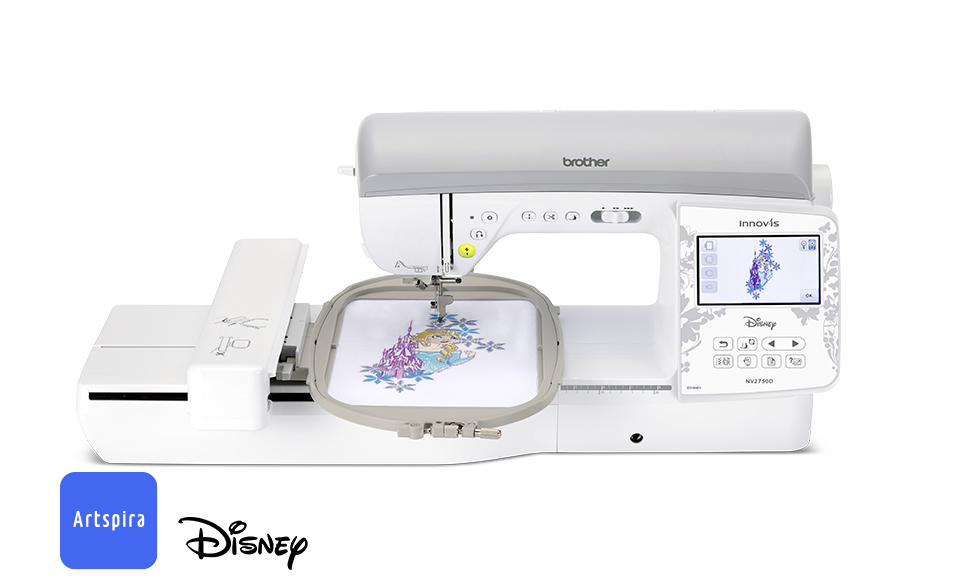

Innov-is NV2750D Disney sewing, quilting and embroidery machine

Want to get seriously creative and take your sewing, quilting and embroidery to the next level? With Brother’s Innov-is NV2750D Disney machine you’ll make magic whatever you’re working on.

Overview

This Innov-is NV2750D is the perfect answer for those looking to take their hobby and skills to the next level. Once you sit down and start working, you’ll see just how intuitive and packed full of Brother’s trademark technology it is. It’s great value, full of great features, and great fun.

The large working area and generous embroidery space of 260 x 160mm means there are no limits to what you can make. With the LED pointer, whatever you make will be perfectly positioned.

Push that creativity even further with the 291 built-in stitches inc. 10 one-step buttonholes and 5 lettering fonts, now including blanket stitch. We’ve also included 35 satin stitch patterns. With Brother’s innovative My Custom StitchTM stitch designer you can create your own unique stitch patterns or edit built-in stitches on the 4.9” colour touchscreen.

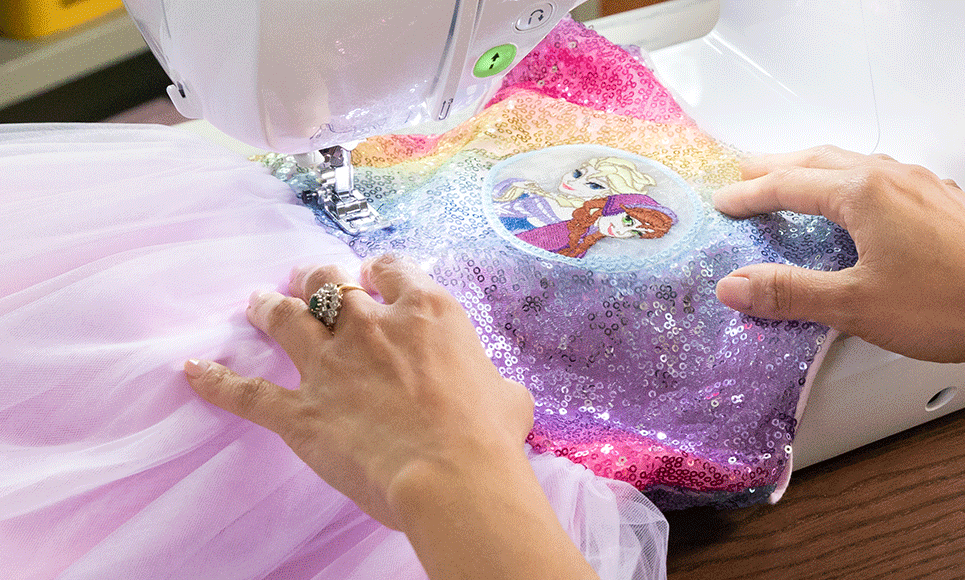

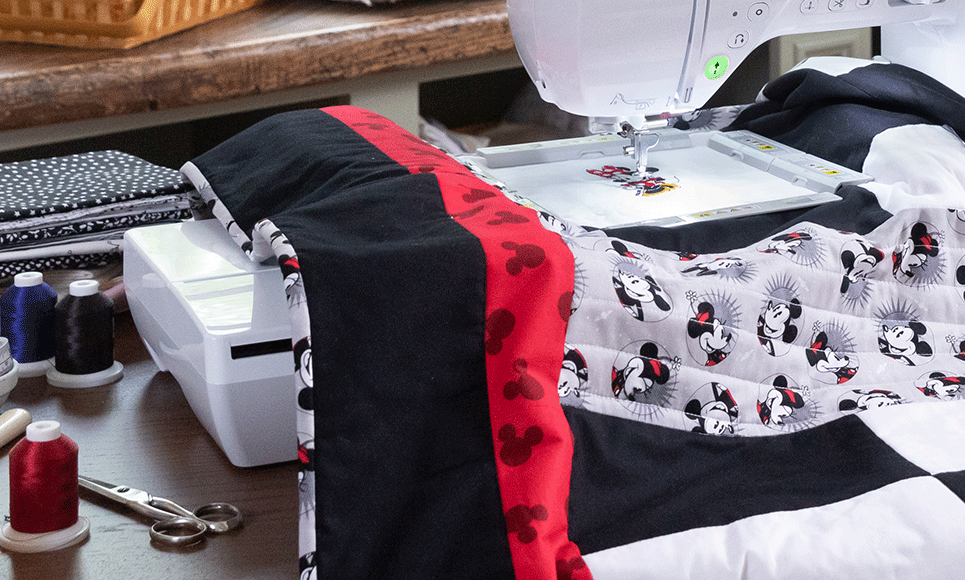

You’ll make magic whenever you sit down to embroider. The NV2750D comes with 313 included embroidery designs, and of those 55 are Disney patterns. And for the quilters there are 13 quilt borders and designs built in. Combined with 13 embroidery fonts, pattern editing and colour sorting, your projects will be second to none.

Expand your creative horizons with the wireless functionality. Transfer embroidery data with the free Design Database Transfer app (Windows only) or create your own embroidery designs using Artspira.

Brother’s SFDS (square feed drive system) gives even feeding action for superior stitch quality on any weight of fabric. Our ICAPS system automatically detects changes in fabric thickness and adjusts foot pressure for the smoothest of stitching. There’s automatic thread tension, pivot function, automatic thread cutter, slide speed control and so much more just waiting to be discovered.

Isn’t it time you sat down and made magic with the Brother Innov-is NV2750D?

For more techniques, tutorials and inspiration download the Brother SupportApp here. Or visit the Brother Support Center to download manuals, check for updates and access even more tutorials.

If you wish to push your creative experience even further you can explore our range of optional accessories on our accessories page. The only limit is your imagination!

Key features

  • 4.9” colour touchscreen
  • 260 x 160mm embroidery area
  • 313 built-in patterns (55 Disney) and 13 fonts
  • Advanced needle threader
  • Auto jump stitch trimmer
  • Auto foot down
  • Colour sorting
  • LED pointer
  • 291 built-in stitches, inc 10 buttonholes
  • 35 satin stitch patterns
  • Design your own stitches with My Custom StitchTM
  • SFDS Sideways feed
  • ICAPS
  • Wireless connectivity
  • Walking foot and quilting guide included!


What's in the box

  • Zigzag foot “J” (on machine)
  • Monogramming foot “N”
  • Overcasting foot “G”
  • Zipper foot “I”
  • Buttonhole foot “A”
  • Blind stitch foot “R”
  • Button fitting foot “M”
  • Embroidery foot with LED pointer “U+”
  • Open toe foot
  • Free motion open toe quilting foot “O”
  • Non stick foot
  • Stitch guide foot “P”
  • Adjustable zipper/piping foot
  • Walking foot
  • 1/4" piecing foot
  • Side cutter “S”
  • Quilting guide
  • Needle set
  • Twin needle
  • Bobbin (4) (One bobbin is on machine.)
  • Seam ripper
  • Scissors
  • Cleaning brush
  • Eyelet punch
  • Set of screwdrivers
  • Horizontal spool pin
  • Spool cap (large)
  • Spool cap (medium) (2) (One spool cap is on machine.)
  • Spool cap (small)
  • Thread spool insert (mini king thread spool)
  • Spool net
  • Knee lifter
  • Alternate bobbin case (no color on the screw)
  • Standard bobbin case (green marking on the screw) (on machine)
  • Foot controller
  • Embroidery hoop and sheet 260 x 160 mm
  • Embroidery hoop and sheet 180 x 130 mm
  • Embroidery bobbin thread (60 weight, white)
  • Accessory bag
  • Dust cover
  • Grid sheet set
  • Operation Manual
  • Quick Reference Guide
  • Embroidery Design Guide

Features in Depth

General features

LCD display
4.9” colour touch screen

Compact face plate
The angle of the faceplate has been improved so it is easier to reach the needle when it needs changing.

Advanced needle threader
Follow the guide, thread the needle and press the lever.

Drop-in bobbin
Just drop in a full bobbin and you’re ready to go.

Central control panel
All important functions within easy reach.

Thread sensors
Upper and lower thread sensors alert you to broken threads and automatically stops your stitching.

Start/stop button
Ergonomic large start/stop button.

Speed
850 stiches per minute - achieve more with a quicker stitch out.

USB connectivity
Transfer even more embroidery patterns to your machine.

WLAN data transfer enabled

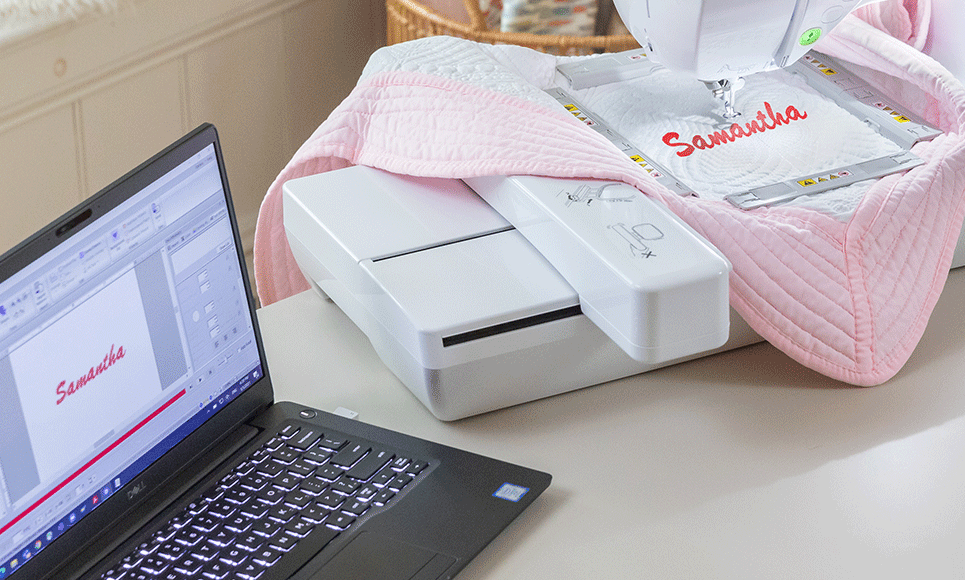

Transfer embroidery designs via Wireless LAN with Design Database Transfer program* or Artspira. Make updates to your machine wirelessly so your machine will continue to grow with you, and with future Brother developments.
*Compatible with Windows Desktop devices only.

Built-in tutorials
A sewing tutor always at your side. Easily learn how to operate your machine.

Embroidery features

Embroidery area

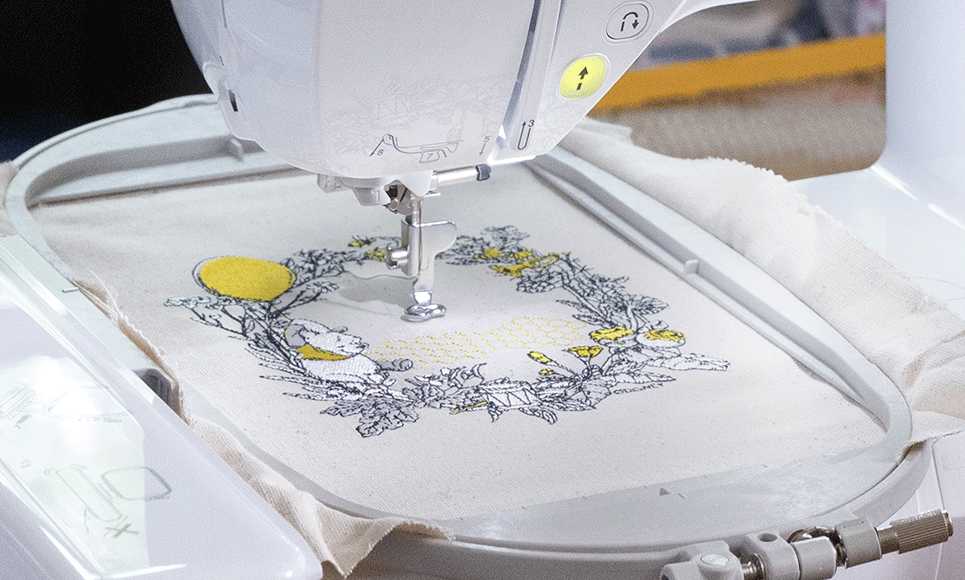

260 x 160mm embroidery area - space to stitch out large, intricate designs.

Built-in designs

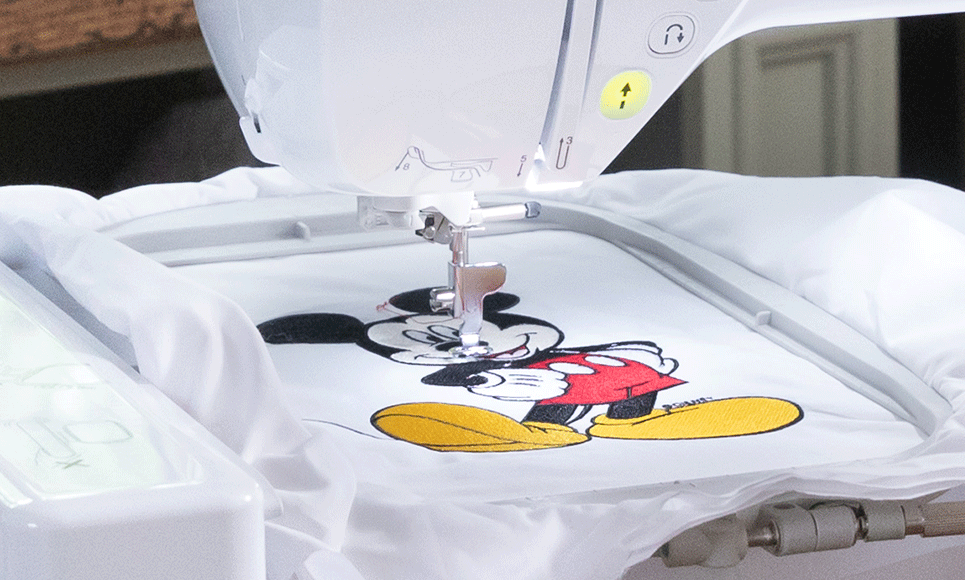

313 built-in embroidery patterns - including 55 magical Disney designs.

Built-in fonts
13 fonts (nine alphabet, one Cyrillic, three Japanese) - make anything you want to say beautiful.

Text edit functions
Simplified user interface for text input and editing, with various editing capabilities such as curving, arraying and space adjustment.

140 built-in frame patterns
Add frames to monograms and other embroidery patterns.

Thread trimming
Programmable jump stitch cutting - trims any excess treads for you.

Monogramming patterns

Personalise projects, homewares, gifts, clothing and much more.

LED pointer
For easy positioning of embroidery patterns.

Advanced editing functions
Design editing, flip designs horizontally, pattern rotating (0.1, 1, 10 and 90 degrees), drag and drop operation, zoom up to 200%

Colour sorting
Groups the same colours together so avoids you having to rethread as much.

Colour change

Easily change colours of your embroidery via the LCD touchscreen.

Frame detection
Automatic embroidery frame size detection.

Included frames
Two versatile sized frames included: 260 x 160mm, 180 x 130mm.

Sewing features

Workspace
8.3” workspace – there’s plenty of space to spread out.

Built-in sewing stitches
291 built-in stitches incl. 10 one step buttonholes - whatever you’re sewing, there’s a stitch to suit.

Lettering fonts
Five built-in lettering fonts (three alphabet fonts, one Cyrillic font, one Japanese font)

Combination stitches
Individual adjustment for combined stitches (depending on category)

My Custom Stitch™
Sew stitch patterns you’ve designed yourself, or edit pre-existing patterns.

Sideways feed
Sew decorative stitches up to 40mm wide.

ICAPS fabric sensor system
Machine can detect fabric thickness and automatically adjust its foot pressure, providing a superior, even stitch quality.

Pivot function
Automatically lift the foot with the needle down. Great for sewing corners.

SFDS
Square Feed Drive System for superior stitch quality on any weight of fabric.

Drop feed function
Drop the feed dogs out of the way for free motion or free hand sewing.

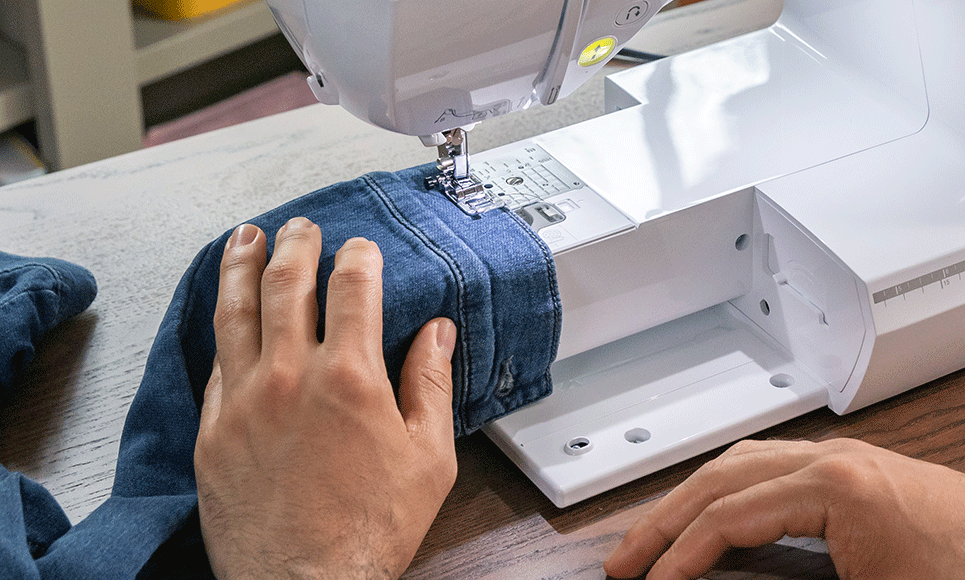

Free arm
Remove the accessory drawer to make sewing tubular items, likes sleeves, easier.

Automatic presser foot functions
Bring presser foot down automatically using the Start/Stop button, knee lift and foot pedal.

Programmable functions
Needle up/down, foot up/down, auto thread cutting, jump stitch cutting, reinforcement priority and other useful sewing functions.

Central controls
Lockstitch, reverse sewing, needle up/down, thread cutter and speed slide control are all conveniently located on the central panel for easy use.

Knee lift
Free up both hands by lifting the presser foot with your knee.

Free motion
Free motion foot height adjustment depending on the thickness of your fabric.

Specification Details

Specification Details

Machine Size Medium
Product Type Embroidery, Sewing
Skill Level Intermediate
Accessory Compartment Yes
Bobbin Type Horizontal
Case Hard Case
Machine Type Electronic
Insertion of Bobbin Quick Set Bobbin
Lighting 2 LEDs
Number Of Needles 1
Design Database Transfer app for Windows PC Yes
USB Port USB Port
Wi-LAN Function Yes
Display Resolution (Pixel) 432 x 240
Type of Screen LCD-Touchscreen Colour
Built-In Lettering Styles (Embroidery) 13
Built-In Patterns 313
Embroidery Area in mm 160 x 260
Embroidery Positioning Function LED pointer
Font Size Selection (L-M-S) Yes
Frames Included 260 x 160 mm (10.25 x 6.25”), 130 x 180 mm (5 x 7")
Jump Stitch Trim Yes
LED Pointer Embroidery foot included
Max Embroidery Speed (Stitches per Minute) 850
Multiple Line Text Input Yes
Number of Hoops (Standard Accessory) 2
Number of Spool Stands 1
Pattern - Size, Change Rotation & Mirror Yes
Realistic Preview of Patterns Yes
Thread Colour Sorting Yes
Consumption Power 55 W
7 Point Feed Dog Yes - SFDS (Square Feed Drive System)
Adjustable presser foot Electronic
Automatic reverse / reinforcement stitch Yes
Bobbin Work Optional
Built-In Lettering Styles 5
Buttonholes 10
Circular Sewing Optional
Combine stitches Yes
Continuous Automatic Pressure System (ICAPS) Yes
Drop feed setting Manual
Electronic slide speed control yes
Extension Wide Table Optional
Free arm sewing Yes
Free Motion Embroidery Kit Optional
Knee lift Yes
Lock stitch button Yes
Longer Feed Dog Yes
Longer J-Foot Yes
Max. Sewing Speed (Stitches per minute) 850
Mechanical Dual Feed Yes
Mirror imaging Yes
Multi-Directional Sewing Yes (up to 4 sideways)
Multi-function foot controller Optional
My Custom Stitch Yes
Needle Positions 15
Number of sewing stitches *incl. buttonholes 291
Pivot function Yes
Presser Foot Levelling Button Yes
Repeated single sewing Yes
Snap on Presser Feet System Yes
Speed control customised for zigzag width Yes
Workspace (cm) 21
Warranty Brother 3 year Warranty *Commercial use only 1 year warranty
Adjustable Thread Tension Automatic
Automatic Thread Cutter Yes
Bobbin Winder Yes
Lower Thread Sensor Yes
Needle Threading System Advanced
Upper Thread Sensor Yes
Machine Dimension (mm) 480x249.4x300
Weight (kg) 10
