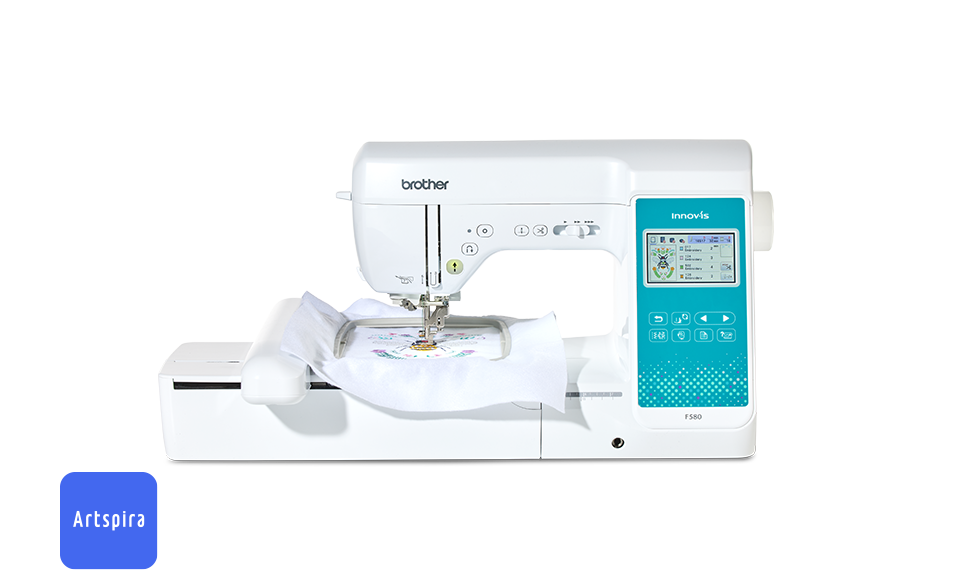

Innov-is F580 sewing, quilting and embroidery machine

Designed for designers - the new Innov-is F580 combination sewing, quilting and embroidery machine. Easy-to-use, it boasts a colour LCD touchscreen and is, of course, packed full of eye-catching embroidery designs and Brother’s trademark sewing innovations.

£1,699.00 Inc. VAT

Where to buy

Overview

See your style come alive with 241 utility and decorative stitches, including 10 one-step buttonholes. There are 193 built-in embroidery patterns, of which 55 are brand new to the F-series!

Words come easily when you have 13 embroidery and 5 lettering fonts at your fingertips. And even easier when you combine them with the on-screen editing function. Use the colour LCD touchscreen to flip, rotate, change the colour and repeat designs and text.

Expand your portfolio even further with My Custom StitchTM. Design your own decorative stitches directly into your machine and save them for future use.

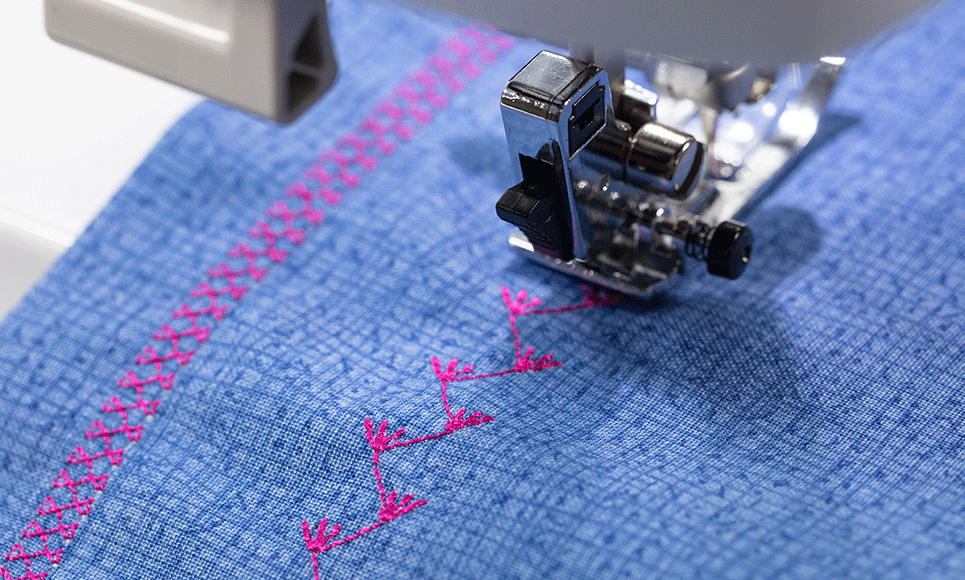

Professional finishes come as standard with Brother’s innovative Square Feed Drive System (SFDS), giving you superior quality, strong stitching on any fabric. With four-way side feeding decorative stitches are precise and crisp. With top auto thread tension you won’t need to worry about the durability or look of your stitches.

Adjustable foot pressure helps you sew pucker-free seams on even the most stretchy of fabrics. Now there’s no need to avoid ‘difficult’ materials. And the included walking foot means you’ll tackle multi-layer makes with ease.

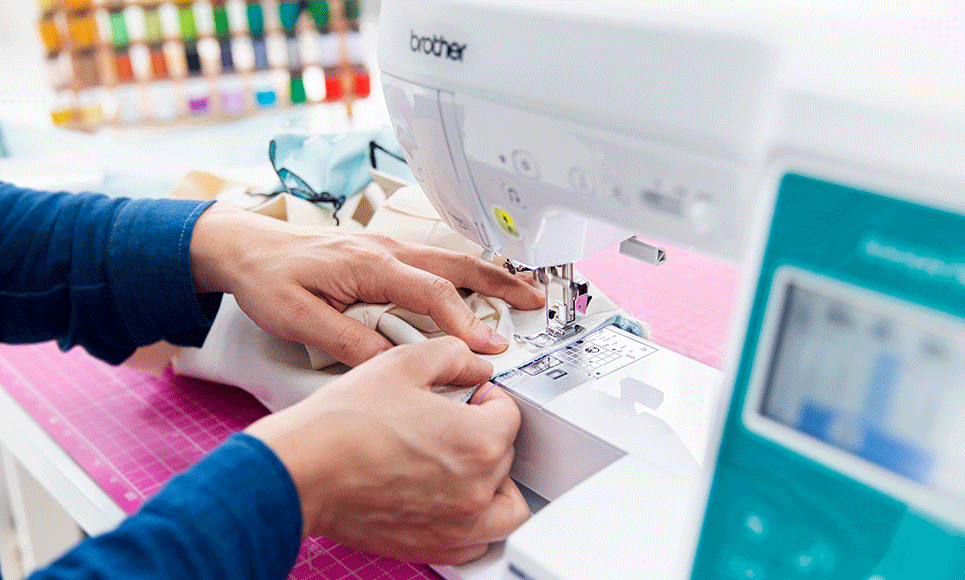

Whether you’ve been sewing for a while, or are just starting out, the advanced needle threader, drop-in bobbin, slide speed controller and easy to thread system make the Innov-is F580 so simple to use.

Nothing can limit your design potential. With wireless LAN capability you can easily transfer new embroidery data to your machine and connect to Artspira, our new creative hub!

For help and advice on setting up your sewing machine, visit support.brother.com. To take your creativity further, why not visit our accessories page and make sure you have everything you need to get started? Or visit our video gallery to see more features in action.

Key features

  • 180 x 130 mm embroidery area

  • 193 built-in embroidery designs – 55 never seen before!

  • 13 embroidery fonts – 2 brand new ones!

  • Jump stitch trimming

  • Colour sorting

  • Advanced needle threader

  • Wireless LAN enabled

  • Connect to the Artspira app

  • 241 sewing stitches, including 10 buttonholes, plus 5 fonts

  • 7.4” (190 mm) workspace

  • Sideways feeding sewing and SFDS

  • Automatic upper thread tension

  • Auto thread cutter

  • My Custom StitchTM

  • Hard case

What's in the box

  • Zigzag foot “J” (on machine)
  • Monogramming foot “N”
  • Overcasting foot “G”
  • Zipper foot “I”
  • Blind stitch foot “R”
  • Button fitting foot “M”
  • Buttonhole foot “A”
  • Embroidery foot “Q”
  • Free motion open toe quilting foot “O”
  • Walking foot
  • 1/4" piecing foot
  • Quilting guide
  • Side cutter “S”
  • Open toe foot
  • Non stick foot
  • Stitch guide foot “P”
  • Adjustable zipper/piping foot
  • Needle set
  • Twin needle
  • Bobbin x 4 (One bobbin is on machine)
  • Seam ripper
  • Scissors
  • Cleaning brush
  • Eyelet punch
  • Screwdriver (large)
  • Screwdriver (small)
  • Disc-shaped screwdriver
  • Horizontal spool pin
  • Spool cap (large)
  • Spool cap (medium) x 2 (One spool cap is on machine.)
  • Spool cap (small)
  • Thread spool insert (mini king thread spool)
  • Spool net
  • Knee lifter
  • Standard bobbin case (on machine)
  • Alternate bobbin case (no color on the screw)
  • Foot controller

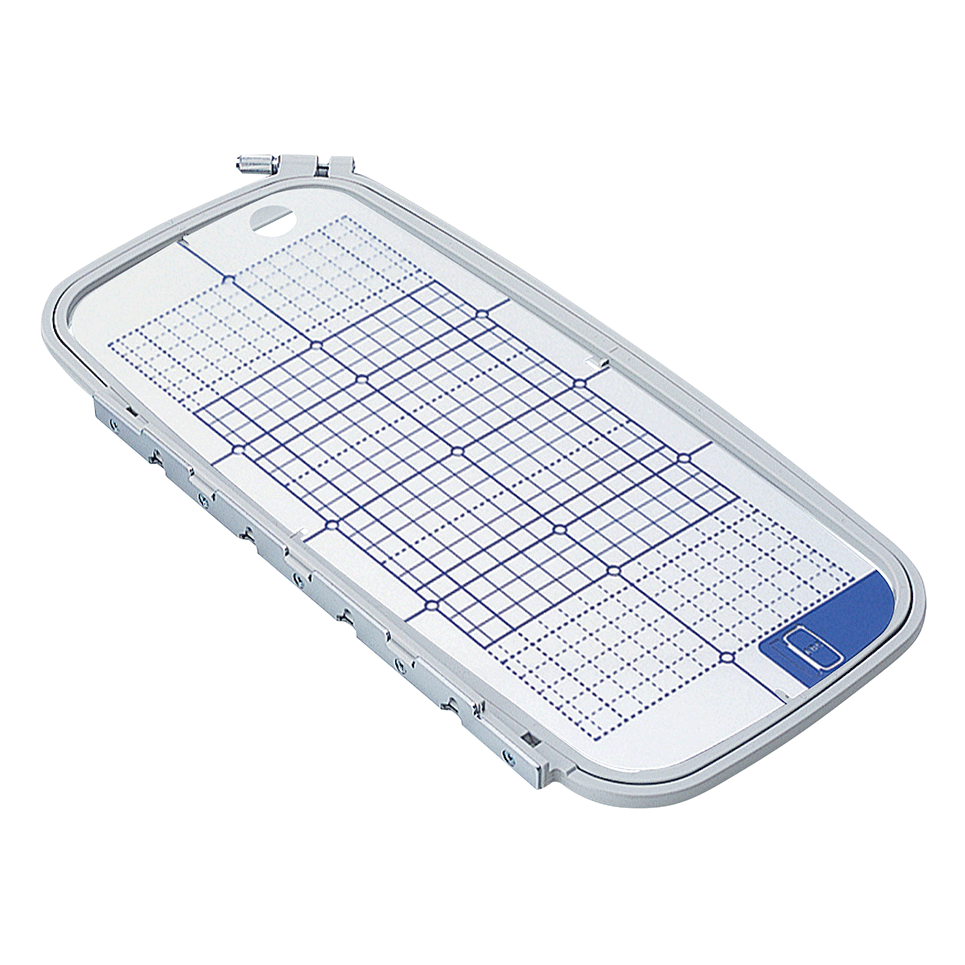

  • Embroidery frame set (extra large (multi-position)) 30 cm (H) × 13 cm (W) (12 inches (H) × 5 inches (W))

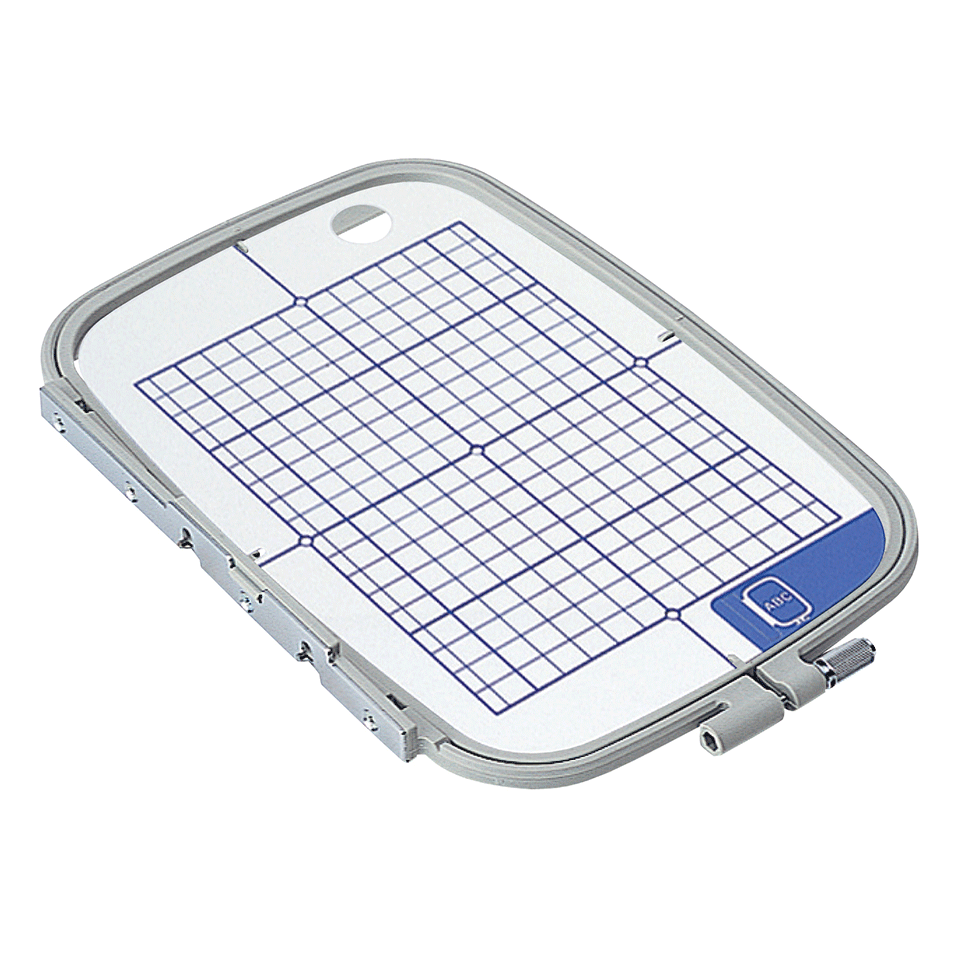

  • Embroidery frame set (large) 18 cm (H) × 13 cm (W) (7 inches (H) × 5 inches (W))

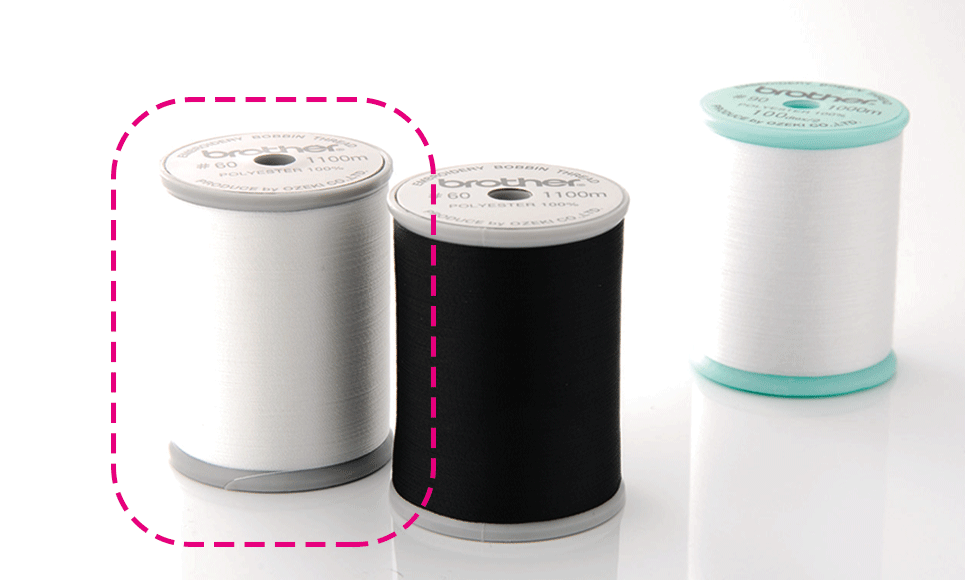

  • Embroidery bobbin thread (60 weight, white)
  • Accessory bag
  • Hard case
  • Grid sheet set
  • Operation Manual
  • Quick Reference Guide
  • Embroidery Design Guide

Features in depth

General Features

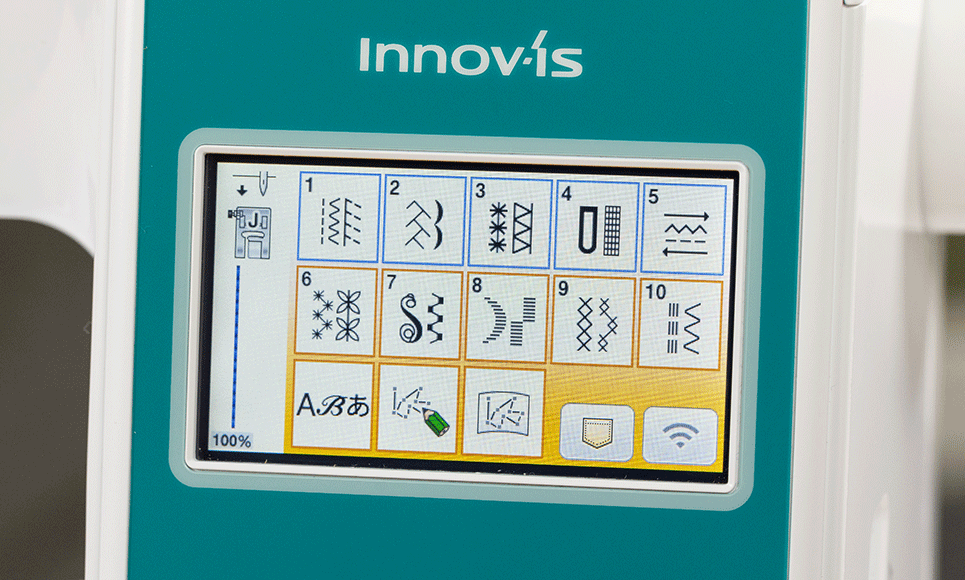

LCD screen 3.7‘‘
All sewing information displayed on a clear, backlit screen. The Innov-is F580 is equipped with a coloured touchscreen display.

Advanced needle threading system
Effortlessly thread the needle by simply lowering the lever.

Bobbin winding system
Fast and simple threading make winding bobbins quick and easy.

Drop-in bobbin
Just drop-in a bobbin and you're ready to sew.

Wireless connectivity
Add patterns, transfer data, receive update notifications and connect to the Artsipra creative hub.


Embroidery features

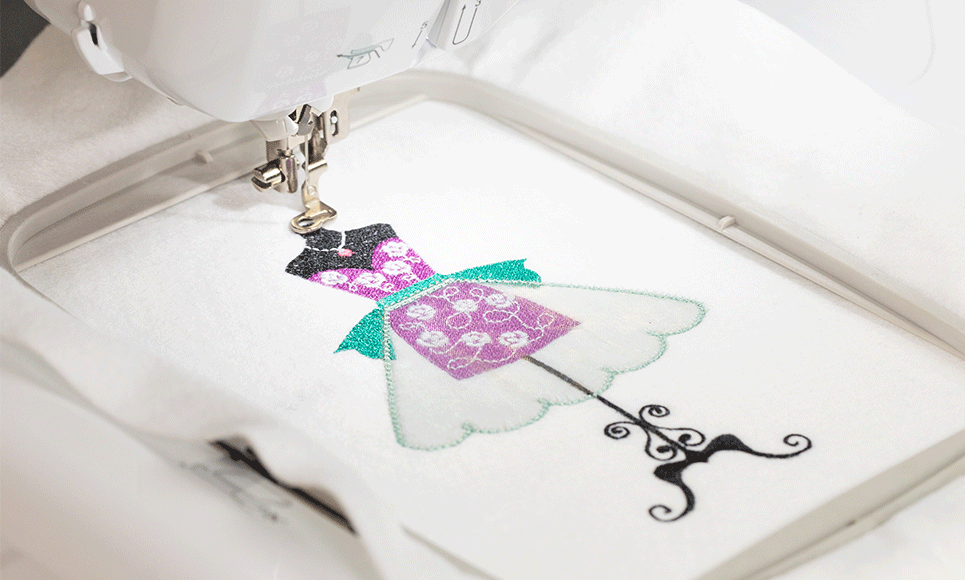

Large embroidery area (180 x 130 mm)
The embroidery machines have a large embroidery area so you can express your creative ideas and make even bigger and more intricate designs.

193 built-in embroidery designs
Choose from a wide variety of florals, animals, geometrics, seasonal designs and much more. With our built-in designs, you can start embroidering right away.

13 built-in font styles
Easily personalise your sewing and embroidery projects by choosing from 13 built-in font styles, available in 3 sizes.

Artspira
Unlock the artist within. Draw your own patterns or download Brother exclusives.
*Artspira to launch late 2022

Colour sorting
Fewer thread changes = more time making.

Jump stitch trimmer
Put your snips away! Jump stitches are automatically trimmed for you.

Patterned frame shapes
Put the finishing touch to your embroidery with an elegant frame. Choose from 10 frame shapes and 14 stitch types for an overall total of 140 different patterns available. Combine with lettering to create unique and stylish monograms.

Editing embroidery patterns
Easily adjust the size, rotation or mirror embroidery patterns with the touch of a button.

Combine embroidery patterns
This function also enables embroidery patterns to be combined or lettering to be added to a design.

Text editing functions
Add multiple lines of text and align it to the left, centre or right. Text rotation and font selection are also available from one single editing panel.

USB port
Connect a USB device such as a USB flash drive or a card reader/writer and load your embroidery design directly to the machine.

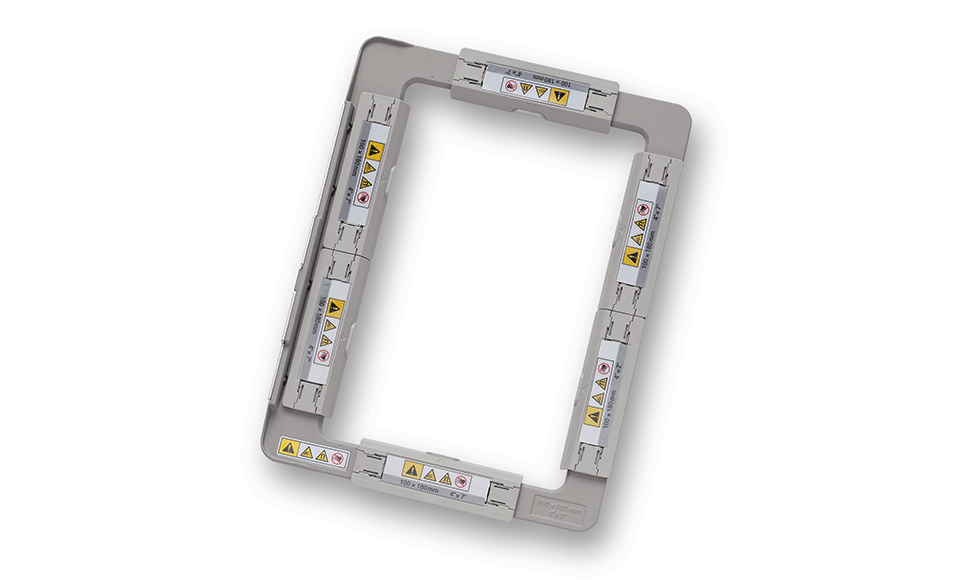

Optional magnet frame 180 x 100 mm
Make hooping a cinch and protect precious fabrics (additional purchase required). Hoop fabrics up to 2mm thick.


Sewing Features

241 built-in stitches, including 10 buttonhole styles
Choose from numerous stitches built-in the machine, giving you unlimited creativity. Also includes 10 one-step buttonholes.

Lettering styles
Includes 5 lettering styles.

Combine stitches
Combine up to 70 stitch patterns and save them to memory.

Stitch reference guide
Choose the required stitch from this useful chart inside the top cover.

My Custom StitchTM
Design your own stitch patterns or edit and change the built-in template designs and save for future use.

Multi-directional sewing
Innov-is F580 offers sewing in four directions.

Automatic thread cutter
Automatically cut upper and lower threads.

Lockstitch button
At the touch of a button, tie-off stitches can be easily sewn at the beginning and end of the stitch.

Slide speed control
Adjust the sewing speed from slow to fast. This can also be used to adjust the stitch width while sewing.

SFDS: Square Feed Drive System
Square Feed Drive System gives you smooth, even feeding action for superior stitch quality on any weight of fabric.

Adjustable presser foot pressure
Helps you stitch pucker-free seams on even the most stretchy of fabrics.

Adjustable thread tension
Achieve the best possible stitch quality across different fabrics by adjusting the tension of the upper thread. Innov-is F580 provides automatic control.

Thread sensor
The Innov-is F580 is equipped with upper and lower thread sensors that warn when thread is broken or has run out.

Free arm
Ideal for sewing tubular items like sleeves, trouser legs, etc.

Knee lift
Free up your hands by using your knee to lift the presser foot.

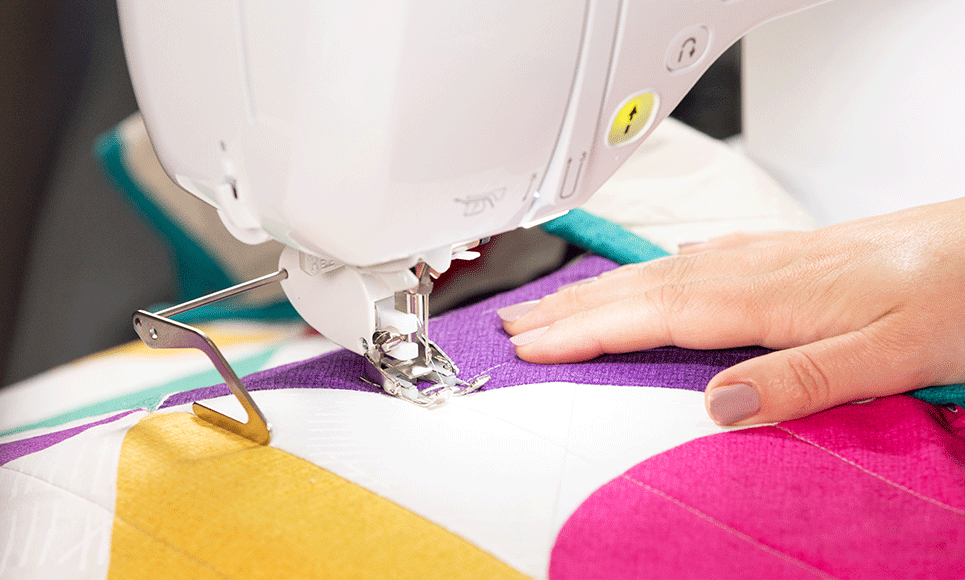

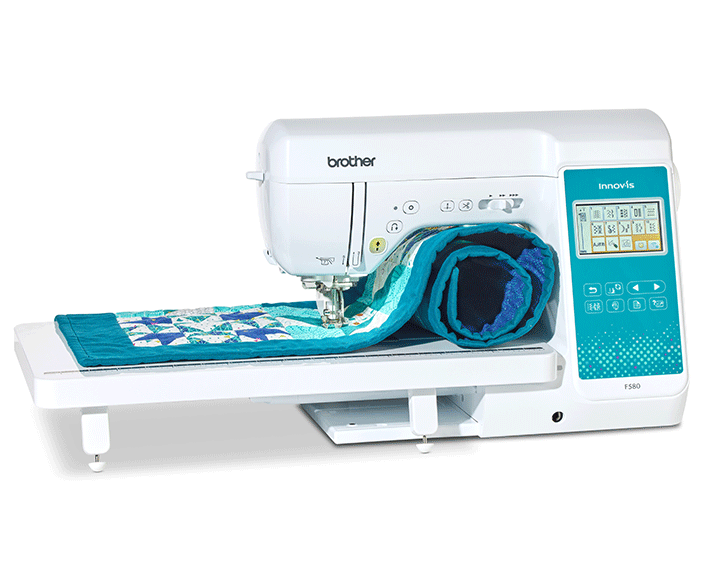

Walking foot included
The included walking foot and quilting guide means you’ll tackle multi-layer quilts with ease, no matter what combinations of materials you use to make them.

Specification Details

Specification Details

Machine Size Medium
Product Type Embroidery, Quilting, Sewing
Skill Level Beginner, Intermediate
Accessory Compartment Yes
Bobbin Type Horizontal
Case Hard Case
Machine Type Electronic
Insertion of Bobbin Quick Set Bobbin
Number Of Needles 1
Lighting 2 LEDs
Design Database Transfer app for Windows PC Yes
My Design Snap App Yes
USB Port USB Port
Wi-LAN Function Yes
Type of Screen LCD-Touchscreen Colour
Display Size 3,7"
Font Size Selection (L-M-S) Yes
Max Embroidery Speed (Stitches per Minute) 650
Number of Hoops (Standard Accessory) 2
Number of Spool Stands 1
Pattern - Size, Change Rotation & Mirror Yes
Realistic Preview of Patterns Yes
Built-in Embroidery Frame Patterns 140 (10 shapes x 14 stitch types)
Built-In Lettering Styles (Embroidery) 13
Built-In Patterns 193
Embroidery Area in mm 180 x 130, 300 x 130
Font Editing Functions/Multiple Lines and Alignment (L-C-R) C
Jump Stitch Trim Yes
Thread Colour Sorting Yes
Voltage 220 - 240V
7 Point Feed Dog Yes - SFDS (Square Feed Drive System)
Automatic reverse / reinforcement stitch Yes
Bobbin Work Optional
Built-In Lettering Styles 5
Buttonholes 10
Circular Sewing Optional
Combine stitches Yes
Drop feed setting Manual
Electronic slide speed control yes
Extension Wide Table Optional
Knee lift Yes
Longer Feed Dog Yes
Longer J-Foot Yes
Max. Sewing Speed (Stitches per minute) 850
Mechanical Dual Feed Yes
Mirror imaging Yes
Multi-Directional Sewing Yes (up to 4 sideways)
Multi-function foot controller Optional
My Custom Stitch Yes
Needle Positions 15
Needle Stop Position Control Up/Down Yes
Presser Foot Levelling Button Yes
Repeated single sewing Yes
Snap on Presser Feet System Yes
Speed control customised for zigzag width Yes
Workspace (cm) 19
Adjustable presser foot Yes
Free arm sewing Yes
Lock stitch button Yes
Number of sewing stitches *incl. buttonholes 241
SFDS (Square Feed Drive System) Yes
Stitch Length (mm) 5
Stitch Width (mm) 7
Warranty Brother 3 year Warranty *Commercial use only 1 year warranty
Automatic Thread Cutter Yes
Bobbin Winder Yes
Lower Thread Sensor Yes
Needle Threading System Extra Advanced
Upper Thread Sensor Yes
Adjustable Thread Tension Automatic
Machine Dimension (mm) 446 x 248 x 300
Weight (kg) 9.3
