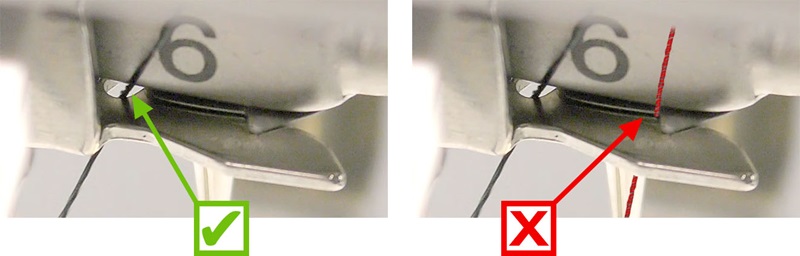

Check the upper thread.
Important: Do not thread your machine with power off. You need to follow the threading instructions when connected to Artspira.
Check the bobbin thread
Make sure you're using the correct size spool cap for the size of the thread spool. (Metallic thread, cone shaped or cross threaded spools of thread, be sure to use a spool net around the spool of thread.)
Ensure fabric, thread, needle & stabiliser combinations are correct.
The tension could be too tight or too loose.
Reset top tension to factory setting and rethread.
Lower bobbin is not inserted into tension adjusting spring correctly.
This error is displayed in Artspira on your smart device.
If you see this error message displayed on your smart device, it means that the needle plate sensor isn’t being made.
This is usually due to the needle plate not being attached correctly.
To attach the needle plate correctly. First line up the needle plate so that the locating pins are in the position shown in the image below.
Next slide it forward at a high angle shown in the image below so that the locating pins are beneath the silver needle plate.
Then lower the needle plate down.
You will see the pin on the needle plate will be positioned to push down on the needle plate sensor switch. (As shown in the image below)
If you attach your needle plate like this and are still getting the error, please contact your local Brother service agent.
This error is displayed in Artspira on your smart device.
This error is informing you that there is some type of mechanical seizure within the machine.
This error can occur when your bobbin case (the black bit the bobbin sits inside) becomes trapped in the wrong position.
This image shows the bobbin case in the incorrect position. (This is just an example of how it may look, your may be trapped in a different position to this).
To fix this error, you must remove the bobbin case.
To do this loosen or completely remove the silver needle plate.
Then remove the bobbin case.
Once the bobbin case is removed, please replace the silver needle plate and screw it down using the disc shaped screwdriver which came with your machine.
At this point, please turn the machine around so you are looking at the back.
Now turn the handwheel anti-clockwise. (It is important you only turn the handwheel in this direction)
Does the handwheel turn freely?
If it does, then this proves that the bobbin case was restricting the movement causing the error.
If the handwheel does not turn freely then please contact your local Brother service agent.
Please check the bobbin case for damage. This is an image of how your bobbin case should look.
If there is any damage to the bobbin case, it will need to be replaced. Please contact your local Brother dealership to purchase a replacement bobbin case.
Now put the bobbin case back into the machine.
This is the correct way for the bobbin case to be inserted.
The white mark on the bobbin case should be lined up with the dot on your machine.
Once in this position place your finger on the bobbin case and move it left and right, it should wobble slightly.
This error is displayed in Artspira on your smart device.
If this error appears then it means that your machine is detecting that your bobbin thread (the lower thread) is running low.
Always press the “move the frame to the attach / detach position” first.
This will move the frame into the correct position for you to safely remove it.
Once the frame is removed from your machine, please remove the bobbin cover by sliding it towards you.
Remove the bobbin.
Wind the bobbin with bobbin thread.
If you are not getting a warning on Artspira informing you that your bobbin thread is almost empty, there are a couple of things you can try.
The machine knows that the bobbin thread is running low by using a sensor that detects a signal being sent from one side of the bobbin to the other.
If this signal is blocked in anyway the machine will think the bobbin is not running low and the warning will not appear.
Things to check are:
If a communication error between your mobile device and the machine occurs, confirm the following conditions to solve the problem:
First: please ensure your machine is running on the latest firmware. If not, please update, as this may solve the problem.
You can find the latest firmware details straight on your Artspira app under Machine Settings.
If the error between the mobile device and the machine that is being paired with the app persists, unpair it and try pairing again.
This machine is calibrated to use 40-50 thread weight on top and 90 weight bobbin thread.
If using improper threads such as a 60wt thread (the most commonly used embroidery bobbin thread) the tension will not properly balance and could lead to other problems such as thread breakage.
When embroidering, the thread tension should be set so that the upper thread can slightly be seen on the underneath of the fabric.
