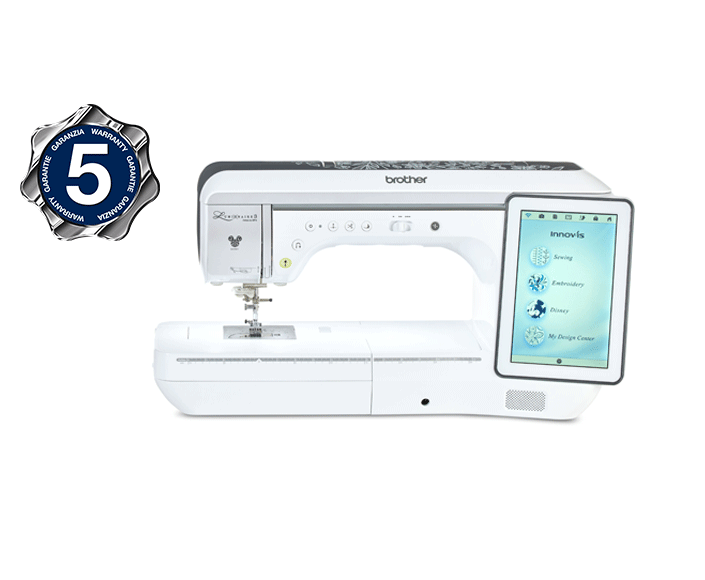

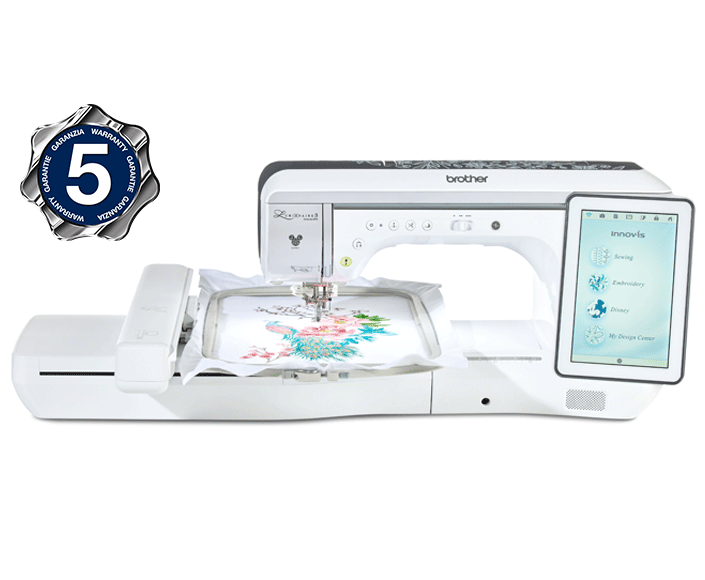

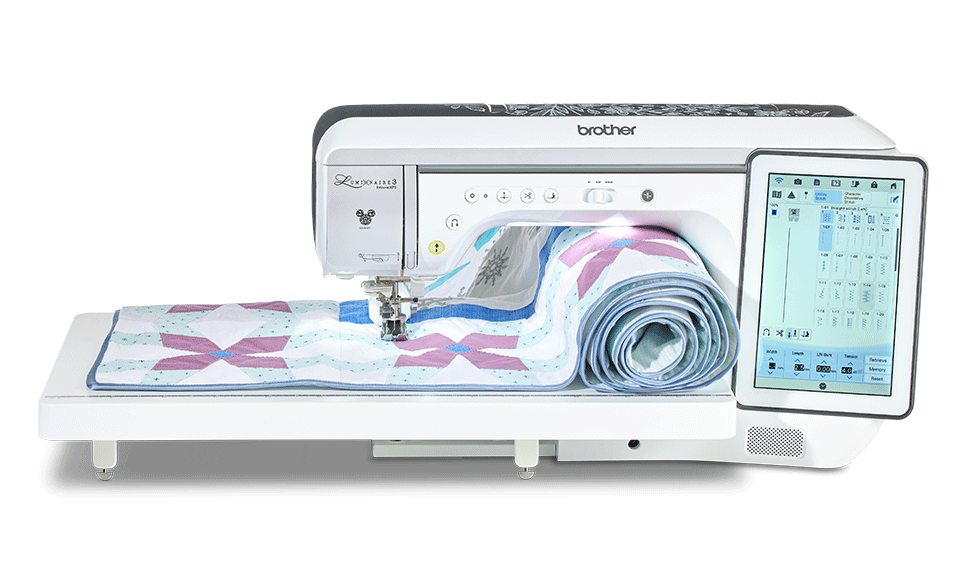

Luminaire Innov-is XP3 Sewing, Quilting and Embroidery Machine

Say hello to the Luminaire Innov-is XP3 – the latest and greatest sewing, embroidery and quilting machine from Brother.

£13,499.00 Inc. VAT

Where to buy


The Luminaire Innov-is XP3 is the ultimate word in luxury sewing experience. Packed with Brother’s revolutionary Stitchvision projection technology, over 1,500 embroidery patterns, 844 stitch designs, Disney magic, built-in design capabilities and wireless connectivity, it’s a machine that’s as brilliant as your ideas.

Stitch with consistent quality, tie-off stitches at the touch of a button, feed denims and silks with ease, automatically sew buttonholes.

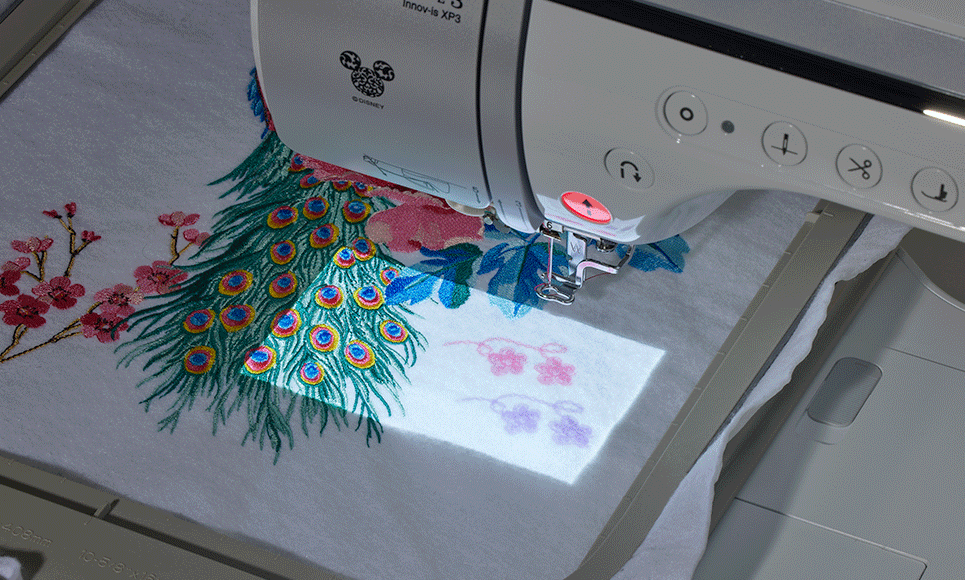

With StitchVision technology unlock the precise placement of stitches and embroidery designs. With our InnovEye technology you can even convert scanned images into embroidery data in just a few seconds – with no extra software required.

The ability to scan the entire embroidery area provides virtually endless creative options and helps take the guesswork out of your projects.

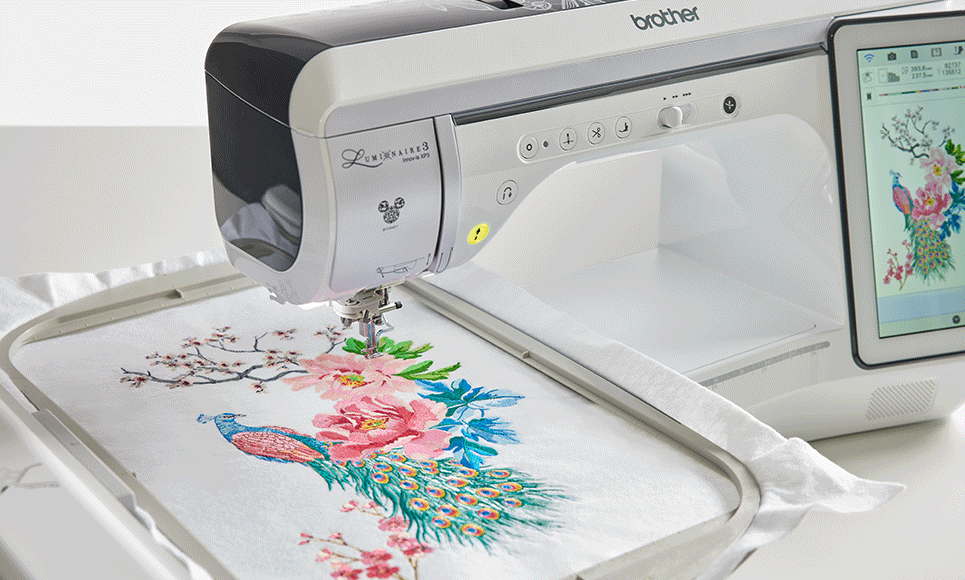

Size really does matter on the Luminaire XP3. With Brother’s largest workspace, longest arm and biggest embroidery frame oversize projects are effortlessly accommodated. Enjoy endless quilting with the Luminaire’s edge-to-edge quilting capability.

The Luminaire XP3 has powerful wireless capabilities, so you can transfer embroidery designs directly from your PC. You can even send your images from a smart phone or tablet, get alerts when it’s time to change thread and enable multiple Brother machines to work together. You can even connect your ScanNCut.

It’s a machine that’s as brilliant as your ideas.

The Luminaire Innov-is XP3 comes with built-in tutorials, so you’ll always have a sewing tutor at your side.
For more techniques, tutorials and inspiration download the Brother SupportApp here.
Or visit the Brother Support Center to download manuals, check for updates and access even more tutorials.

From presser feet for every project, to embroidery frames and sewing accessories - if you wish to push your creative experience even further you can explore our range of optional accessories on our accessories page. The only limit is your imagination!

Visit our special Luminaire Innov-is XP3 page for more information

Key features

  • Revolutionary built-in projector
  • Brother’s largest embroidery frame – 408 x 272 mm (16 x 10.7")
  • Super long arm 13.1" (332 mm) workspace
  • Hyper wide-view camera
  • Camera detecting buttonhole function
  • Over 1,500 embroidery designs – 192 are Disney!
  • My Design Center

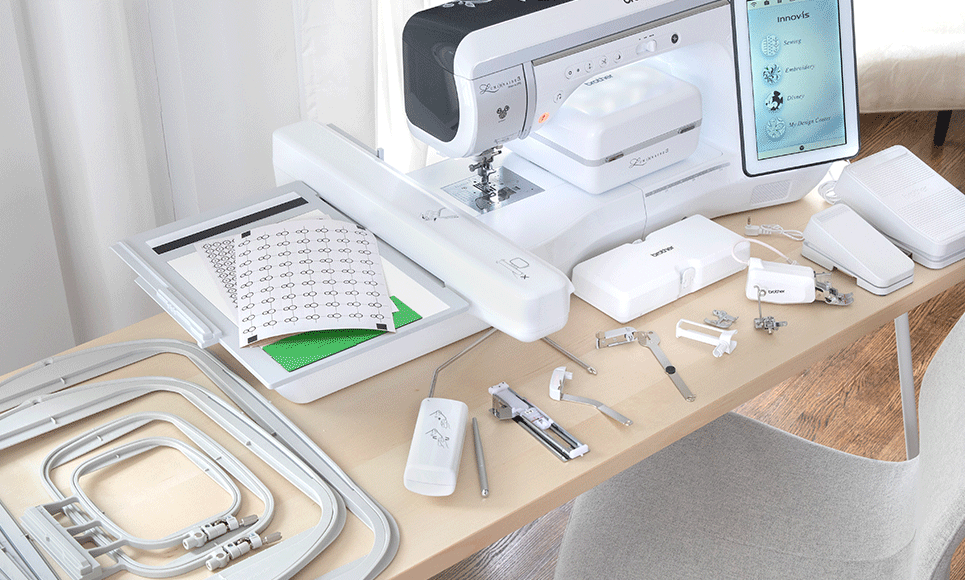

What's in the box

Accessories included:

  • Zigzag foot “J” (on machine)
  • Advanced monogramming foot „N+“
  • Overcasting foot “G”
  • Zipper foot “I”
  • Buttonhole foot “A+”
  • Buttonhole foot stabilizer
  • Blind stitch foot “R”
  • Button fitting foot “M”
  • Compact dual feed foot
  • Regular dual feed foot (on compact dual feed foot)
  • Straight stitch foot
  • Free motion quilting foot “C”
  • Free motion echo quilting foot “E”
  • Free motion open toe quilting foot “O”
  • Embroidery Foot “W”
  • ¼“ Quilting Foot (Piecing Foot) with Guide
  • Adapter
  • Screw (small)
  • Needle set
  • Twin needle
  • Ball point needle set
  • Bobbin × 10 (One bobbin is on machine.)
  • Seam ripper
  • Scissors
  • Cleaning brush
  • Eyelet punch
  • Screwdriver (small)
  • Screwdriver (large)
  • Multi-purpose screwdriver
  • Spool cap (small)
  • Spool cap (medium) × 2 (One spool cap is on machine.)
  • Spool cap (large)
  • Thread spool insert (mini king thread spool)
  • Spool Stand
  • Spool cap (XL) x 2
  • Spool holder x 2
  • Spool cap base x 2
  • Spool felt x 2
  • Ring x 4
  • Bobbin clip × 10
  • Spool felt (on machine)
  • Spool net × 2
  • Embroidery needle plate cover
  • Knee Lifter
  • Alternate bobbin case (no colour on the screw)
  • Standard bobbin case (green marking on the screw) (on machine)
  • Straight Stitch Needle Plate
  • Cord guide bobbin cover (with single hole)
  • Bobbin cover (with mark) (on straight stitch neelde plate)
  • Bobbin cover (on machine)
  • Embroidery frame (medium) H 100 mm × W 100 mm (H 4 inches × W 4 inches)
  • Embroidery frame (large) H 180 mm ×W 130 mm (H 7 inches × W 5 inches)
  • Embroidery frame H 272 mm × W 272 mm (H 10-5/8 inches × W 10-5/8 inches)
  • Embroidery frame (LL) H 408 mm × W 272 mm (H 16 inches × W 10-5/8 inches)
  • Scanning frame
  • Magnet × 6
  • Embroidery bobbin thread
  • Embroidery positioning sticker sheets x 2
  • White calibration stickers (solid)
  • Stabilizer material
  • Grid sheet set
  • Chalk pencil
  • Dual purpose stylus
  • Dual purpose stylus holder
  • Accessory case
  • Advanced multi-function foot controller
    - Main foot controller
    - Side pedal
    - Mounting plate
    - Mounting screw × 2
  • Couching dual feed foot
  • Yarn guide for sewing couching
  • Embroidery couching foot “Y”
  • Yarn guide for embroidery couching
  • Yarn threader
  • End point stickers (4 sheets, 243 stickers per sheet)
  • Fine tipped stylus pen
  • Dust cover
  • Operation Manual (Sewing)
  • Operation Manual (Embroidery)
  • Embroidery Design Guide
  • Disney Design Guide


Machine net weight 32KG.
Included accessories subject to change without notice.

Specification details

Specification Details

Machine Size X-Large
Product Type Crafting, Embroidery, Quilting, Sewing
Skill Level Expert
Accessory Box Yes
Accessory Compartment Yes
Bobbin Type Horizontal
Machine Type Electronic
Insertion of Bobbin Quick Set Bobbin
Instructional Manual PDF Viewer Yes
Lighting 8 LEDs
Number Of Needles 1
One-Finger Needle Plate Removal Yes
USB Port 2 Hosts (2.0/2.0) / 0 Slave
Wi-LAN Function Yes
Design Database Transfer app for Windows PC Yes
My Design Snap App Yes
My Stitch Monitor App Yes
Display Size 10,1"
Type of Screen High-Resolution IPS LCD-Touchscreen
Colour Shuffling Yes
Creating a Custom Thread Table Yes
Echo Quilting Around the Motif Button Yes
Embroidery Frame Clearance for Bobbin Change Yes
Font Size Selection (L-M-S) Yes
Jump Stitch Trim Yes
Max Embroidery Speed (Stitches per Minute) 1050
Multiple Line Text Input Yes
My Design Center Yes more enhanced
New UI (Slide Scroll Operation) Yes, Enhanced (Slide Scrolling, Pinch-in/out, Flick)
Number of Hoops (Standard Accessory) 4
Number of Spool Stands 2
On Screen Video Tutorials Yes
Pattern - Size, Change Rotation & Mirror Yes
Progress Indication Bar Yes
Realistic Preview of Patterns Yes
Redo/Undo When Embroidery Editing Yes
Single Colour Pattern Converter Yes
Stippling Function Trapunto-like Camera Scan and Add Stippling/ Stippling in Embroidery Edit/ Free Hand Quilitng
Thread Colour Sorting Yes
Built-in Embroidery Frame Patterns 140 (10 shapes x 14 stitch types)
Built-In Lettering Styles (Embroidery) 28
Built-In Patterns 1554
Camera with Scan Function (Built-in Camera) Background Scanning, Image Scanning, Live Camera Positioning, Viewing needle drop point
Converting scanned images to embroidery data Yes with My Design Center
Couching Embroidery Yes
Embroidery Area in mm 408 x 272
Embroidery Positioning Function Live camera positioning, Projector embroidery
Extension Wide Table Optional
Font Editing Functions/Multiple Lines and Alignment (L-C-R) L-C-R
Frames Included 100 x 100 mm (4 x 4”), 180 x 130 mm (7 x 5”), 360 x 240 mm (14 x 9.5”), 408 x 272 mm (16 x 10.7”)
LED Pointer Embroidery foot included
My Design Snap Mobile app for perfect placement of embroidery designs
Projector Embroidery Pointer Yes
Eco Mode (Auto Power Off/Sleep Mode) Yes
Voltage 220 - 240V
7 Point Feed Dog Yes
Adjustable presser foot Electronic
Automatic reverse / reinforcement stitch Yes
Bobbin Work Optional
Built-In Lettering Styles 3
Camera Detecting Buttonhole foot Yes
Circular Sewing Optional
Continuous Automatic Pressure System (ICAPS) Yes
Customizable Presser Foot Movement Yes with enhanced UI
Drop feed setting Electronic
Electronic slide speed control yes
Extension Wide Table Optional
Free Motion Embroidery Kit Optional
Knee lift 5 Steps Electronic
Lock stitch button Yes
Longer Feed Dog Yes
Longer J-Foot Yes
Max. Sewing Speed (Stitches per minute) 1050
Max Sewing Speed for Decorative Stitches 710
Mechanical Dual Feed Optional
Multi-Directional Sewing Yes (up to 8 sideways)
My Custom Stitch Yes
Needle Stop Position Control Up/Down Yes
Projector Guideline Marker Yes
Snap on Presser Feet System Yes
Speed control customised for zigzag width Yes
Workspace (cm) 33.3
Buttonholes 25
Combine stitches Yes
Direct Dual Feed Yes
End Point Setting Pin Function Yes
Free arm sewing Yes
Mirror imaging Yes
Multi-function foot controller Yes
Number of sewing stitches *incl. buttonholes 844
Presser Foot Levelling Button Yes
Projector Gridline Marker Yes (gridlines, 3 colours)
Repeated single sewing Yes
SFDS (Square Feed Drive System) Yes
Stitch Length (mm) 5
Stitch Width (mm) 7
Warranty Brother 5 year Warranty *Commercial use only 1 year warranty
Adjustable Bobbin Winding Amount Yes
Adjustable Thread Tension Automatic
Automatic Thread Cutter Yes
Bobbin Winder Independant
Lower Thread Sensor Yes
Upper Thread Sensor Yes
Needle Threading System Automatic
Machine Dimension (mm) 690 x 322 x 349
Weight (kg) 20
