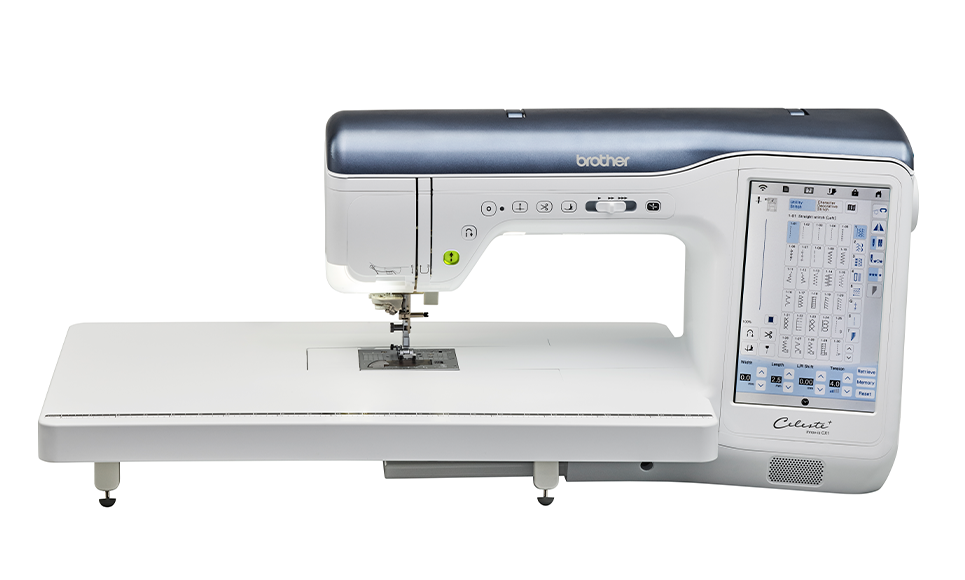

Celeste Innov-is CX1 | Brother

Overview

Your every stitch is a quest for perfection, that’s why the Celeste CX1 has been built for serious crafters like you. We’ve concentrated on creating a machine that’s full of superior sewing and quilting innovation, so you can concentrate on perfecting your craft.

The Brother Celeste CX1 has an impressive extra-large 285mm (11.25”) long arm. You can expand your workspace even further with the included wide table. Perfect for bulky sewing projects like curtains, wedding dresses or king-sized quilts.

The generous 10.1” HD LCD screen, with My Custom Stitch^TM stitch designer, stitch tapering and enhanced control options such as stitch width up to 7mm and length of up to 5mm, laser sewing guideline for ultimate precision, stitch speed control, presser foot height adjuster, drop feed and pivot functions give you the creative control you need.

It’s never been easier to master free motion quilting, than with Brother’s Intelligent Stitch Regulator (ISR) with infrared edge detection. With the included-as-standard ISR your stitches will be perfectly equal, and you’ll quickly gain confidence with free motion patterns. With adjustable height settings and curved design, fabric flows smoothly under any of the three included presser feet.

Work smarter, not harder with Brother’s built-in innovation – advanced auto needle threader, auto thread trimmer, auto tension, independent bobbin winder, auto presser foot lift, upper and lower thread sensors, ICAPS auto fabric thickness detection, Start/stop button, knee lifter and more.

Isn’t it time you got serious about your sewing and quilting?

For help and advice on setting up your sewing machine, visit support.brother.com, and you can also take a look at our accessories page to make sure you have everything you need to get started. Or visit our Video Gallery for more feature videos.

Key Features

Extra-large workspace: 285mm (11.25") long arm, plus included wide table
760 built-in decorative and utility sewing stitches, inc 16 buttonholes and 92 satin stitches
Master free motion quilting – included Intelligent Stitch Regulator
Fast – up to 1,050spm sewing speed
Precise – laser sewing guideline
Easy-access needle plate and newly designed multi-tool
Automatic electronic needle threader
My Custom Stitch^TM – design your own decorative stitches
10.1” High resolution LCD touchscreen
Built-in movie tutorials and MP4 upload function
Wireless connectivity
5-year warranty

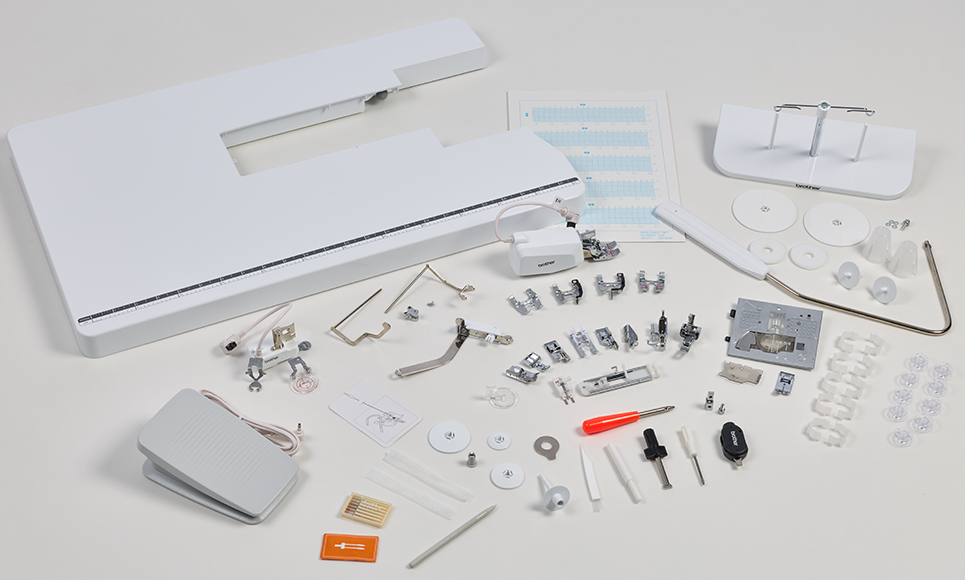

What's in the box

Advanced monogramming foot “N+”
Overcasting foot “G”
Zipper foot “I”
Buttonhole foot “A”
Blind stitch foot “R”
Button fitting foot “M”
Stitch regulator
Stitch regulator quilting foot
Stitch regulator open toe quilting foot
Stitch regulator echo quilting foot
Compact dual feed foot
Regular dual feed foot (on compact dual feed foot)
Adjustable zipper/piping foot for high shank
Open toe for the dual feed foot
Stitch in the ditch dual feed foot
Dual feed 1/4 inch guide foot
Dual feed quilting guide
Couching dual feed foot
Yarn guide
Yarn threader
Straight stitch foot
Free motion open toe quilting foot “O”
Free motion quilting foot “C”
Free motion echo quilting foot “E” *attach the included adapter to use this product
1/4" piecing foot with guide
Adapter
Screw (small)
Needle set 75/11 2 needles 90/14 2 needles 90/14 2 needles: ball point needle (gold colored)
Twin needle 2/11 needle
Bobbin × 10 (one in machine.)
Seam ripper
Cleaning brush
Eyelet punch
Screwdriver (small)
Screwdriver (large)
Disc-shaped screwdriver
Multi-purpose screwdriver
Spool cap (small)
Spool cap (medium) × 2 (one on machine.)
Spool cap (large)
Thread spool insert (mini king thread spool)
Bobbin clip × 10
Spool felt (on machine)
Spool net × 2
Stylus
Knee lifter
Foot controller
Standard bobbin case (green marking on the screw) (on machine)
Straight stitch needle plate
Cord guide bobbin cover
Bobbin cover (with mark) (on straight stitch needle plate)
Bobbin cover (on machine)
Grid sheet set
Accessory bag
Telescopic thread guide
Spool support
Spool pin × 2
Screw and washer
Spool cap (XL) × 2
Spool holder × 2
Spool cap base × 2
Spool felt × 2
Ring × 4
Wide table
Vertical spool pin
Operation manual
Quick reference guide
Dust cover

Features in depth

Sewing Features

Built-in sewing stitches
760 utility and decorative stitches, including 20 tapering, 3 sashiko, 130 compatible with the Dual Feed foot, 16 buttonholes and 92 satin stitch patterns.

Lettering fonts
Four sewing lettering fonts (3 alphabet, 1 cyrillic).

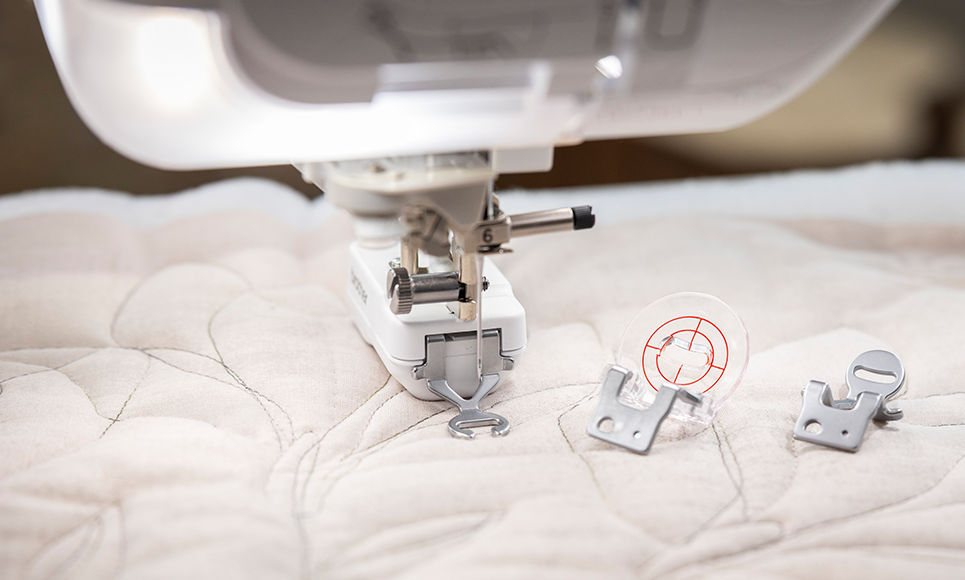

Intelligent Stitch Regulator
Included as standard. With infrared edge detection, adjustable height settings, curved design, and three included presser feet.

Sewing speed
Sew up to 1,050 stitches per minute.

Combination stitches
Individual adjustment for combined stitches (depending on category).

My Custom Stitch™
Create, combine and edit custom stitches; includes 185 built-in sample stitches.

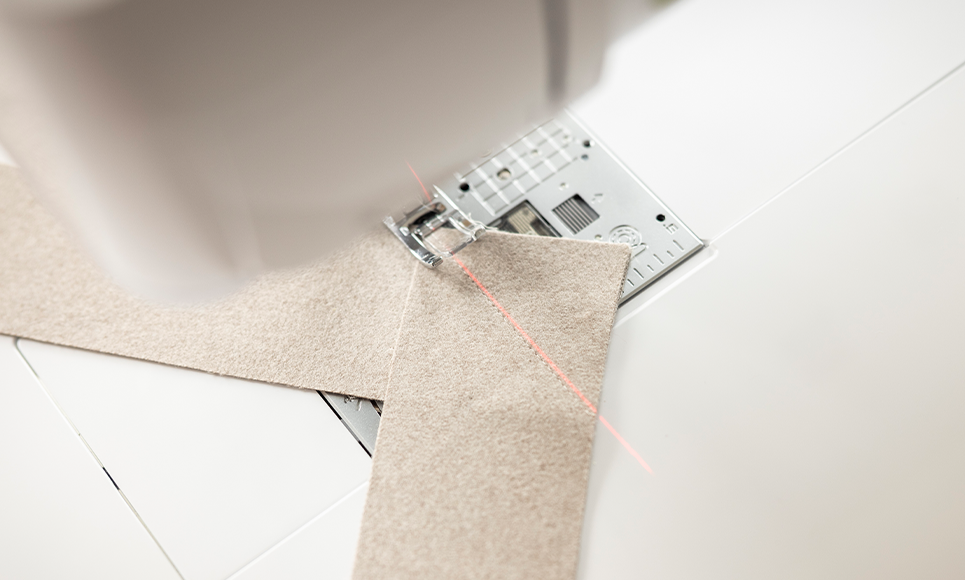

Laser guideline marker
Guideline marker with 19mm side shift capability.

ICAPS fabric sensor system
Continuously adjusts presser foot pressure and auto detects fabric thickness.

Automatic presser foot pressure
Automatic Height Adjuster (AHA) for automatic presser foot pressure.

Lockstitch
Reinforcement stitch at start and end of sewing.

Dual feed
Digital Dual Feed System for even and consistent sewing on all fabrics.

Pivot and foot height
Lightning-quick pivoting functionality with customisable foot height.

Square Feed Drive System
Square feeding system with powerful and long feed dogs.

Needle plate detector
Needle plate detector for safe operation.

Easy to remove needle plate
Swap needle plates easily with newly designed tool.

Straight stitch
Straight stitch needle plate and straight stitch foot included.

Sashiko designs
Three sashiko stitches.

Ruler
Ruler design with zero mark at the needle.

Free motion
Presser foot height adjusts according to the thickness of the fabric.

Drop feed function
Convert to free motion mode easily with a touch of a button on screen.

Automatic presser foot functions
Bring presser foot down automatically using the Start/Stop button, knee lift and foot pedal.

Included accessories
A wide range of presser feet, including the newly designed adjustable zipper foot, as well as the wide extension table are included with the CX1.

Ergonomic multi-function foot controller (optional accessory)
Can be programmed to cut threads, reverse stitch, sew one stitch, needle up/down and No Sew function.

General Features

Lighting
Almost 11” of full-spectrum lighting around the needle with five adjustable brightness settings including off.

Needle threader
Easy to use, automatic needle threading system.

Bobbin winder
Independent bobbin winder system with adjustable winding speed.

Wireless
Wireless capability for easy firmware updates.

Thread tension
Automatic thread tension.

Thread cutter
Trims upper and lower threads automatically.

Presser foot
Automatic presser foot lift and extra high lift.

Thread sensors
Gives you a warning when your upper and lower threads are running low.

Teaching movies
Wide selection of built-in tutorial videos and MP4 playability.

Start/stop button
Ergonomic large start/stop button.

Environment
Save energy with the Eco and Deep Sleep modes.

LCD Display
Large and clear 10.1” (800 x 1280px) built-in HD LCD display.

Intuitive user interface
Easy-to-use screen layout and realistic preview of selected stitches and patterns.

USB connectivity
Connect a USB device such as a memory stick.

Multilingual operational languages
12 built-in languages.

Safety features
Easily disengage needle to make changing presser feet and needles safer and lock the screen to avoid any accidental stitch changes.

Updates
Automatic wireless software update capability.

Specification Details

Features and Specifications

Machine Size	X-Large
Product Type	Quilting, Sewing, Small Business Use
Skill Level	Expert, Small Business Use

Accessory Compartment	Yes
Bobbing Type
Case	Stable Soft Cover
Hardware Type	Electronic
Insertion of Bobbin	Quick Set Bobbin
Lighting	7 LEDs
Number Of Needles	1

USB Port	2 Hosts (2.0/2.0)
Wi-LAN Function	Yes
Wireless firmware updates	Yes

Display Size	10,1"
Stitch Selection	LCD Touchscreen
Type of Screen	High-Resolution IPS LCD-Touchscreen

Eco Mode (Auto Power Off/Sleep Mode)	Yes

7 Point Feed Dog	Yes - SFDS (Square Feed Drive System)
Adjustable Presser Foot	Electronic
Automatic Reverse/Reinforcement Stitch	Yes
Bobbin Work	Optional
Built-In Lettering Styles	4 (3 Alphabet, 1 Cyrillic)
Buttonholes	16
Circular Sewing	Optional
Combine Stitches	Yes
Continuous Automatic Pressure System (ICAPS)	Yes
Direct Dual Feed	Yes
Drop Feed Setting	Electronic
Electronic Slide Speed Control	yes
Extension Wide Table	Yes
Free Arm Sewing	Yes
Knee Lift	Yes
Laser Function	Yes
Lock Stitch Button	Yes
Longer Feed Dog	Yes
Longer J-Foot	Yes
Max. Sewing Speed (Stitches per minute)	1050
Max Sewing Speed for Decorative Stitches	710spm for wide stitches
Mirror Imaging	Yes
Multi-Directional Sewing	Yes (up to 8 sideways)
Multi-Function Foot Controller	Optional
My Custom Stitch	Yes
Needle Positions	29
Needle Stop Position Control Up/Down	Yes
Number of Sewing Stitches *incl. Buttonholes	760
Pivot Function	Yes
Presser Foot Levelling Button	Yes
Repeated Single Sewing	Yes
SFDS (Square Feed Drive System)	Yes
Snap on Presser Feet System	Yes
Speed Control Customized for Zigzag Width	Yes
Stitch Length	5
Stitch Width	7
Workspace	28.5

Warranty

Adjustable Thread Tension	Automatic
Automatic Thread Cutter	Yes
Bobbin Winder	Independant
Lower Thread Sensor	Yes
Needle Threading System	Automatic
Upper Thread Sensor	Yes

Machine Dimension (mm)	662x324x348 mm
Weight (kg)	17.1 kg
