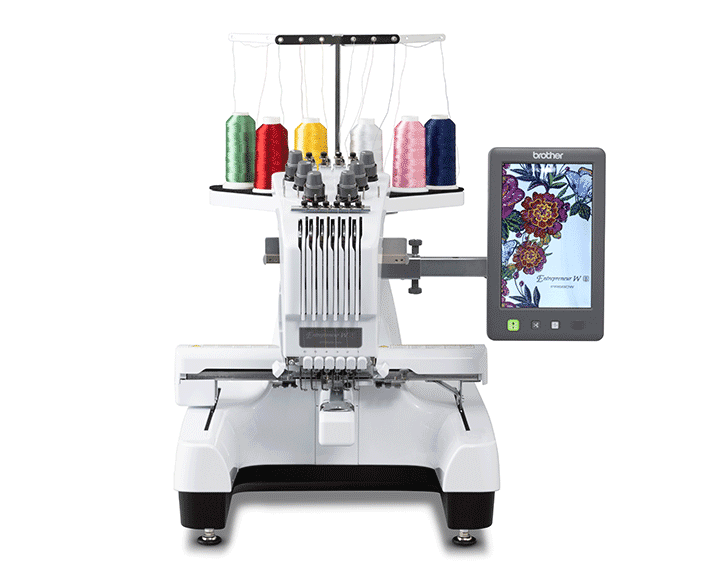

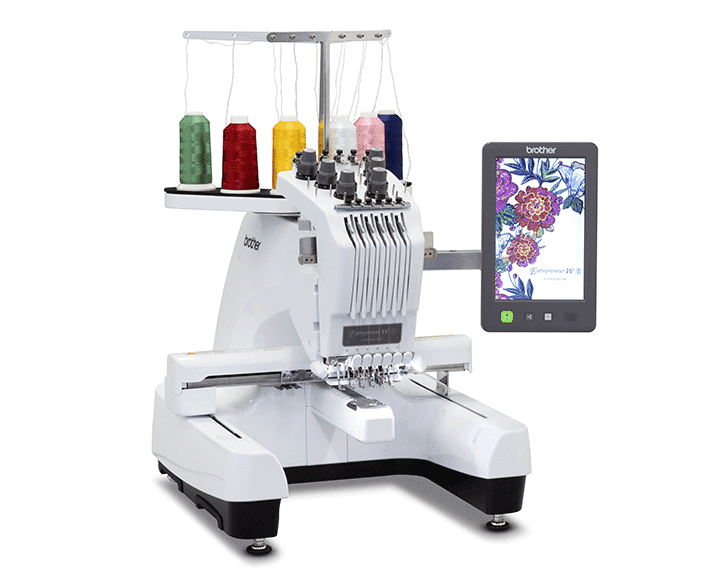

PR680W 6-Needle embroidery machine

When you’ve got your sights on going from home hobbyist to small business owner, choose the easy-to-use Entrepreneur W PR680W 6-Needle Embroidery machine to get you there.

€7,199.00 Inc. VAT

Where to buy

Overview

The PR680W, for when embroidery means business

When you’ve got your sights on going from home hobbyist to small business owner, choose the easy-to-use Entrepreneur W PR680W 6-Needle Embroidery machine to get you there.

With individually customisable six-needles and industrial acceleration the PR680W can handle different-sized projects with ease. Reaching up to 1,000 stitches per minute in seven seconds projects will be completed faster, with minimal noise.

Give yourself space to create on the generous 200 x 300 mm work area and easily work on the large 10.1'' built-in high-definition LCD display. View your designs in crisp, vivid colour and really see the detail with the zoom function which goes up 200%. Easily adjust your design by rotating in 0.1-degree, 1-degree, 10-degree, or 90-degree increments.

There’s a perfect pattern for every perfect order with the 673 built-in embroidery designs (including monogram and buttonhole styles) and 50 built-in lettering fonts. Stitch out the built-in designs as they are, or express your creativity with the design editing features.

Customise fonts by adjusting the spacing, colour shuffling, or changing the thread density to improve the look of stitching. Add an instant pattern outline with the appliqué feature and reduce editing time with colour grouping.

Save time and mistakes with the built-in stitch simulator, automatic colour stitch sequence, basting stitch outline feature and smart stitch management. The PR680W will also automatically resume the embroidery design at the exact stitch when the machine either stopped or lost power.

With the largest crosshair pointer on the market, you can see exactly where your needles will drop, ensuring perfect pattern placement every time. Easily position jobs faster and more accurately. Nine points can be set: centre, four corners and four middles.

We’ve upgraded the upper thread tension dials and expanded the thread tension range to give you ultimate control in fine tension settings. You’ll see less puckering on lighter fabrics like satin and organza.

Customise your business workflow with the new key optimisation and shortcut keys. Added administrator and operator locks adds a new level of security and safety.

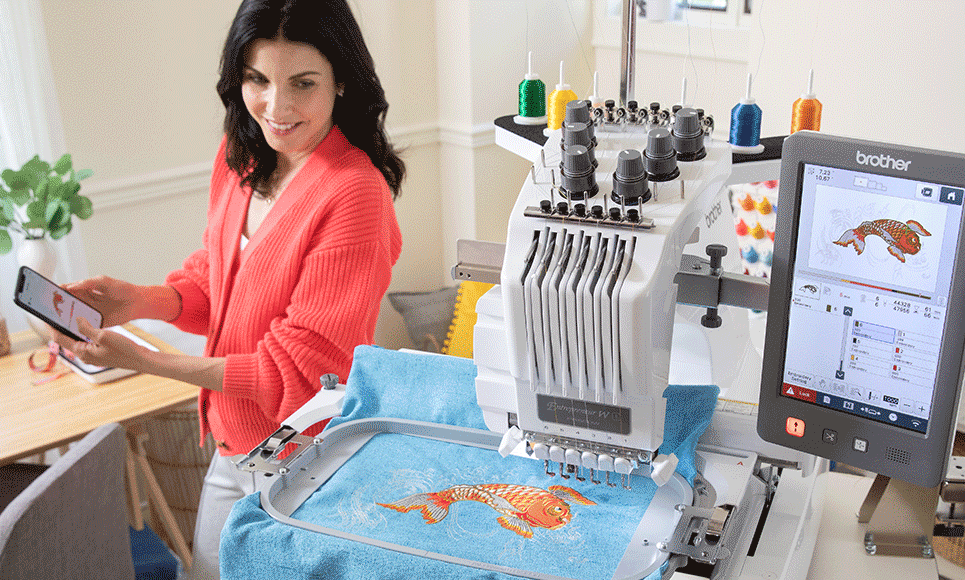

Wirelessly connected you stay in control, wherever you are. Keep track of your embroidery with the My Stitch Monitor app from your mobile device. Send designs wirelessly from your PC to the PR680W with Design Database Transfer (Windows desktop devices only). You can also get machine updates automatically. And with Brother’s PE-Design 11 software (additional purchase required), you can link as many as 10 machines without a cable.

And don’t worry, with 24 pre-installed tutorial videos – covering everything from basic operations to embroidery functions - you and your staff can learn as you go. You’ll be experts in no time!

Next-level versatility, next-level speed, and next-level editing – all in an easy-to-use package. Turn any challenge into an opportunity and see how the Entrepreneur W PR680W can take your passion, and business, to the next level.

For more techniques, tutorials and inspiration download the Brother SupportApp here. Or visit the Brother Support Center to download manuals, check for updates and access even more tutorials.

From different threads to magnetic embroidery frames, if you wish to push your creative experience even further, explore our range of optional accessories on our accessories page. The only limit is your imagination!

Key Features

  • Large 10.1" built-in HD LCD touchscreen display
  • 200 x 300 mm embroidery area
  • Large crosshair LED needle drop precision pointer for perfect positioning
  • 6 needles, each with their own customisable settings
  • Automatic colour change, needle threader and thread trimmer
  • 763 built-in embroidery designs, including 50 fonts and monograms
  • Industrial acceleration – complete your projects faster
  • Up to 1000 spm variable embroidery speed
  • Wireless LAN connectivity - connect up to 10 machines with optional PE-Design 11 software
  • My Stitch Monitor mobile app
  • 24 built-in video tutorials so you can learn as you go

What's in the box

  • Accessory case
  • Needle set × 2
  • Pre-wound bobbin × 6
  • Spool net × 6
  • Seam ripper
  • Scissors
  • Tweezers
  • Touch pen
  • Needle changing tool (Threader)
  • Needle plate cover
  • Spacer (on machine)
  • Phillips screwdriver
  • Standard screwdriver
  • Allen screwdriver
  • 3-way screwdriver
  • Wrench 13 mm × 10 mm
  • Oiler
  • Cleaning brush
  • Weight (L)
  • Spool mat × 6
  • Spool cap × 6
  • USB cable
  • Embroidery frame (extra-large) 200 mm (H) × 300 mm (W) (7-7/8 inches (H) × 11-3/4 inches (W))
  • Embroidery frame (large) 130 mm (H) × 180 mm (W) (5-1/8 inches (H) × 7-1/8 inches (W)
  • Embroidery frame (medium) 100 mm (H) × 100 mm (W) (4 inches (H) × 4 inches (W))
  • Embroidery frame (small) 40 mm (H) × 60 mm (W) (1-1/2 inches 2-3/8 inches (W)
  • Embroidery sheet (extra-large) 200 mm (H) × 300 mm (W) (7-7/8 inches × 11-3/4 inches (W)
  • Embroidery sheet (large) 130 mm (H) × 180 mm (W) (5-1/8 inches × 7-1/8 inches (W))
  • Embroidery sheet (medium) 100 mm (H) × 100 mm (W) (4 inches (H) × 4 inches (W)
  • Embroidery sheet (small) 40 mm (H) × 60 mm (W) (1-1/2 inches (H) x 2-3/8 inches (W))
  • Embroidery frame holder A
  • Embroidery frame holder B
  • Power cord
  • Bobbin case (on machine)
  • Operation Manual
  • Quick Reference Guide
  • Embroidery Design Guide

    Included accessories subject to change without notice.

Features in depth

6 needles with customisable settings
You can individually customise each of the PR680W’s six needles for speed, colour lock and now, the disengagement of the needle threader – useful when using a thin needle!

Thread tension range expansion
We’ve expanded the thread tension range on the PR680W creating a wider range of tension settings. It’s now easier to embroider on difficult fabrics with the correct tension – without distorting or puckering the fabric!

6-needle auto-threading

Make threading simple! With just the touch of a button you can automatically thread each needle in a matter of seconds. For added efficiency this can even be done without a design on the screen!

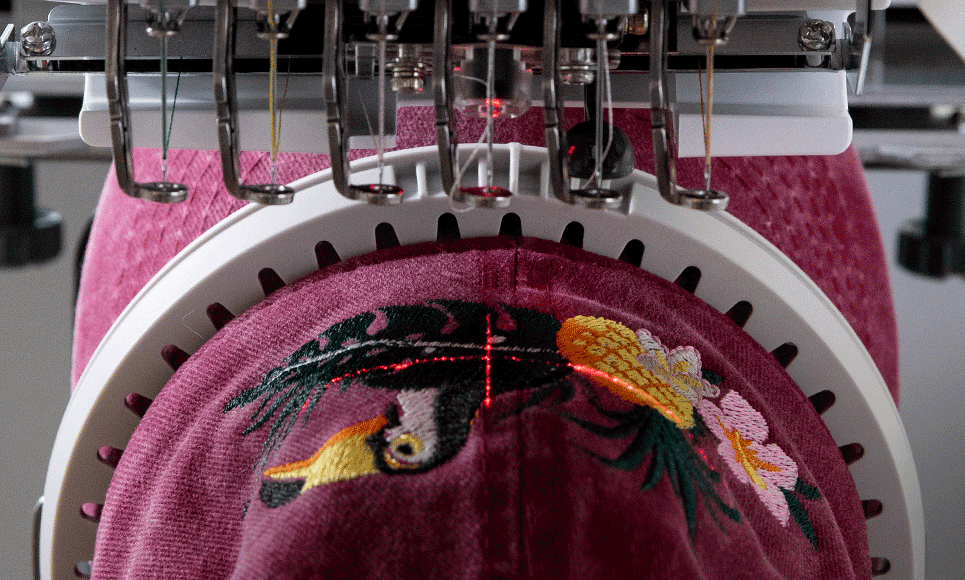

Crosshair LED pointer for perfect needle positioning
See exactly where your needles will drop and ensure perfect pattern placement, so you can position jobs faster and more accurately. Nine points can be set: centre, four corners and four middles.

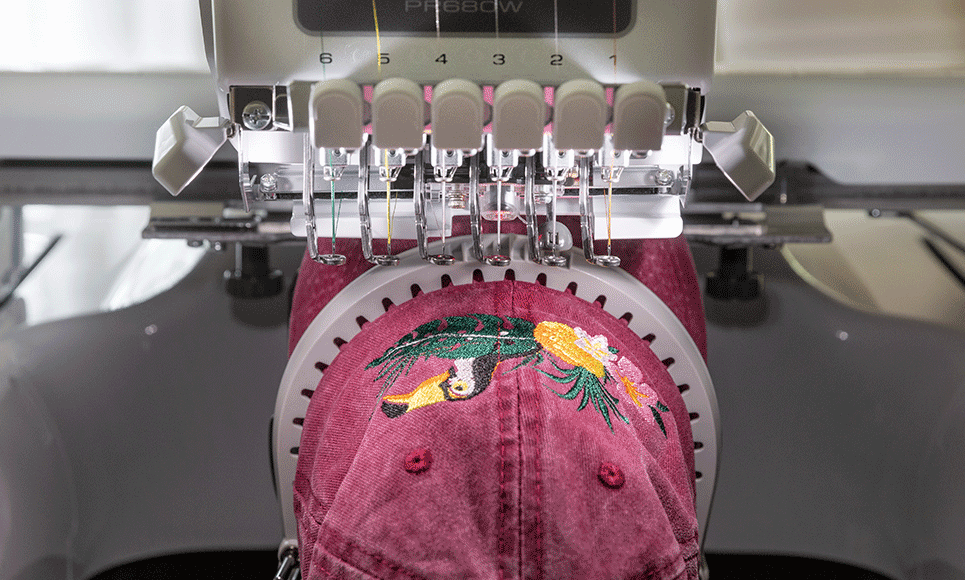

Customisable lighting system
See your work clearly with the four built-in LED lights. With five brightness settings you can find your ideal lighting level. The bight LEDs will illuminate your work with virtually no shadows.

Industrial level acceleration
Increase your productivity and efficiency with industry-leading high-speed acceleration! Reach up to 1,000 stitches per minute in seven seconds. Projects will be completed faster, with minimal noise.

Fast and adjustable embroidery

Get a professional finish, even on tricky items and using speciality threads. Embroidery speeds can be reduced to 400spm for flats, as well as for the (optional) cap and cylinder frame.

Automatic thread cutter

Cuts upper and lower thread automatically at the end of each colour change on embroidery.

Basting function

Apply a basting stitch outline to the perimeter of any design to hold the fabric to the stabilizer. Great for larger fabrics and hard-to-hoop items.

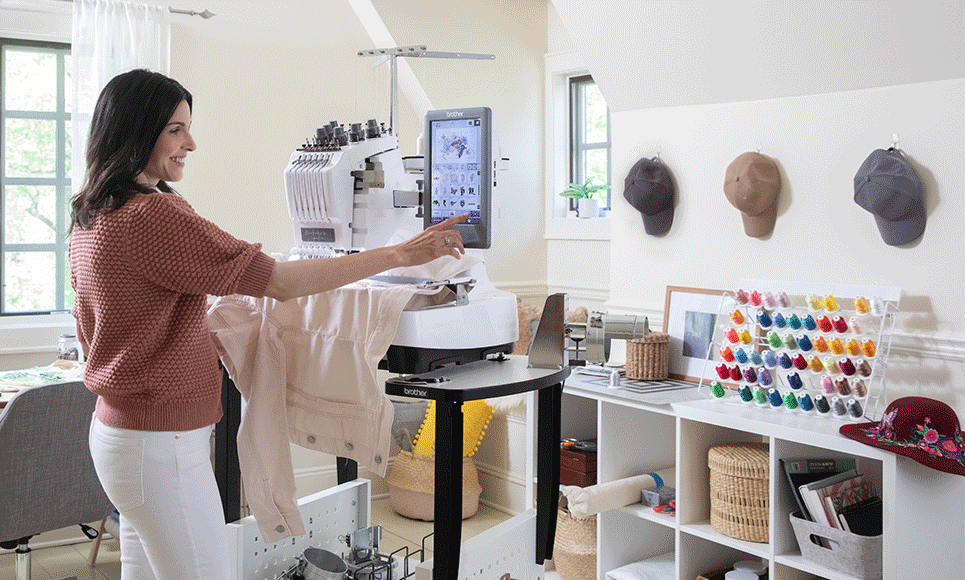

10.1” HD LCD touchscreen
Navigate the easy-to-use interface and see your designs in full colour on the crystal clear display – zoom in up to 200%. Fine quality thumbnail preview available for both external and built-in patterns.

Expandable library of built in tutorials
Learn as you go with the 24 pre-installed tutorial videos – covering everything from basic operations to embroidery functions. Download more via the WLAN connectivity.

Smart stitch management
Check the stitch progress bar to see how much time is left to stitch out each part of the embroidery design. Key in the stitch number to go forward or backward by any number of stitches.

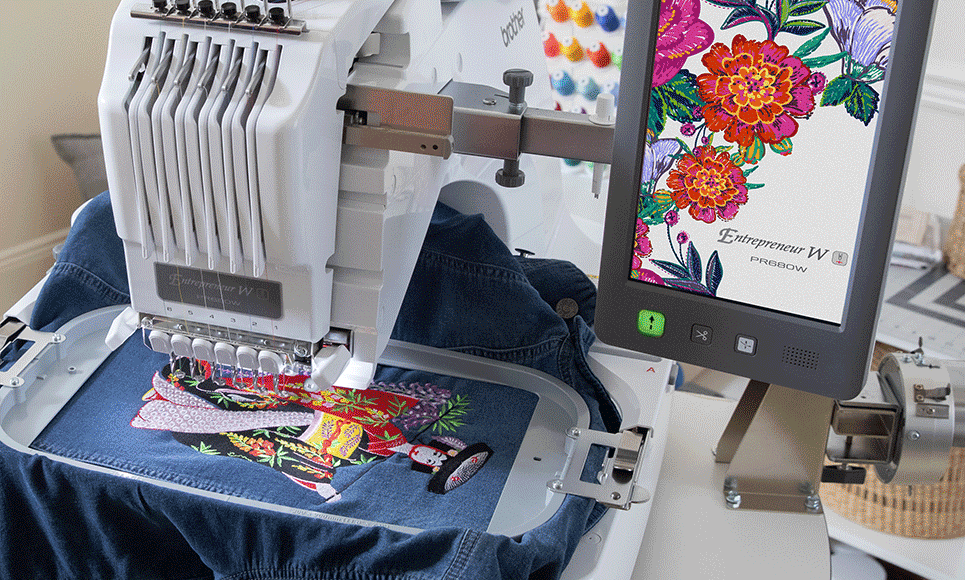

Large embroidery area (200 x 300 mm)
Generous embroidery area for just about any project. Includes four embroidery frames: 200 x 300 mm, 130 x 180 mm, 100 x 100 mm and 40 x 60 mm, making it easy to go pro!

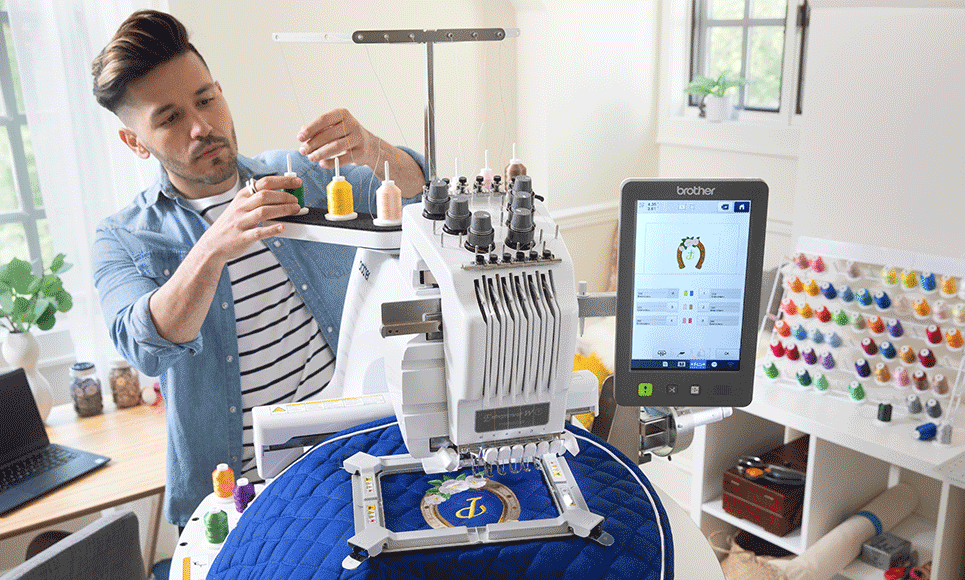

New magnetic frames (optional)
Save time with Brother’s new flash magnetic embroidery frames – just hoop and go. Sewing area: 100 x 100 mm (4 x 4”) and 130 x 180 mm (5 x 7”)

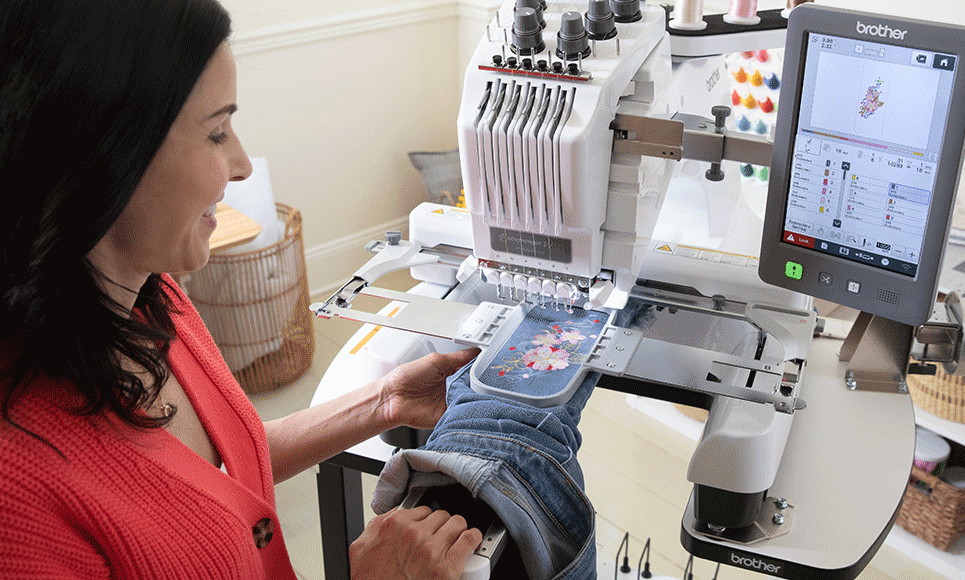

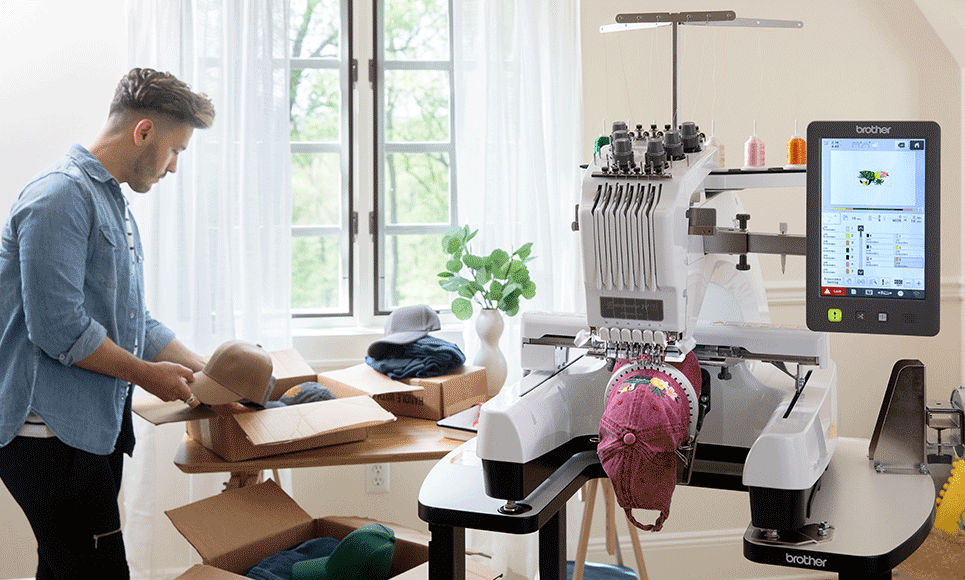

Cylinder arm
Easily embroider hard to reach items such as caps, tote bags, sleeves, trouser legs and much more.

Easy embroidery features
Use the built-in touchscreen to convert multi-colour designs to single-colour embroidery. Add registration marks for easy, continuous borders.

Colour shuffling 2 function
Get even more colour possibilities with the colour shuffling 2 function. Use the pin graphic function in Random and Gradient modes to ensure your favourite colours are always included in your shuffle.

Colour grouping
Save time by selecting multiple regions at a time for editing colour.

Intuitive colour management
Customise designs even further by selecting areas of embroidery designs that you wish to skip before you start stitching.

Stitch simulator

Minimise mistakes! See your design on screen before a stitch is sewn, with the stitch simulator.

Auto-density adjustment
When enlarging designs, the stitch count is automatically recalculated, so your resized design will fit your custom project and maintain stitch quality. Designs can be adjusted from 60% to 200% of the original.

Customise designs on screen
There’s no limit to what you can create. Arrange and align text, add an easy applique outline, pattern rotation in 0.1, 1, 10, 90 degree increments, add lettering, adjust sizes and combine designs – and much more!

Group and ungroup
Selected multiple regions at a time for editing colour. Easily group letters to move all at once, combine designs and edit them as one, or separate design elements and edit pieces individually.

Variety of built in embroidery designs
Choose from 102 embroidery patterns, 50 utility stitches, 3 monogram fonts, 611 decorative alphabet patterns, 10 buttonholes in 3 sizes and 140 frame pattern combinations.

50 built-in lettering fonts

Input multiple lines of text or lettering, all with the capability to edit. Rearrange words or phrases, combine selected words, change the style and size of individual letters, and even change the font style of a whole line. Easily align text left, centre or right. Perfect for embroidering multiple line poems, phrases, and wedding announcements.

WLAN connectivity and My Stitch MonitorTM app
With wireless connectivity keep track of your embroidery with the My Stitch Monitor app from your mobile device. Follow the progress of your project, get thread change alerts and know when your embroidery is finished.

Connect and grow your work room
With wireless connectivity and Brother’s PE-Design 11 software (additional purchase required), you can link as many as 10 machines without a cable.

Wireless image transfer
When connected to your wireless network, send designs wirelessly from your PC to the PR680W with Design Database Transfer. You can also get machine updates automatically. (Design Database Transfer only compatible with Windows).

Administrator and operator lock
Security lock modes and key optimisation let you customise your business’ workflows. Use the shortcut key allows to jump directly to the embroidery screen.

Auto resume

The PR680W will automatically resume the embroidery design at the exact stitch when the machine either stopped or lost power.

Three built-in USB ports

A high-speed port for fast design transfers, a second port for machine peripherals, and a third port for computer connectivity.

Specification Details

Features and Specifications

Machine Size Not Portable (Needs Wheels)
Product Type Embroidery, Small Business Use
Skill Level Expert, Intermediate, Small Business Use
Accessory Box Yes
Bobbing Type Vertical
Hardware Type Electronic
Insertion of Bobbin Anytime Access
Lighting 3 LEDs
Number Of Needles 6
Design Database Transfer app for Windows PC Yes
Wireless firmware updates Yes
My Stitch Monitor app Yes
USB Port PC and 2x High Speed USB Port
Wi-LAN Function Yes
Display Resolution (Pixel) 800 x 1280
Display Size 10,1"
Type of Screen High-Resolution IPS LCD-Touchscreen
Embroidery Positioning Function
Built In Monogram Styles 3 lettering & 15 frames
Built-in Embroidery Frame Patterns 140 (10 shapes x 14 stitch types)
Built-In Lettering Styles (Embroidery) 50
Built-In Patterns 763
Colour Shuffling Yes
Creating a Custom Thread Table Yes
Embroidery Area in mm 300 x 200
Extension Wide Table Optional
Font Editing Functions/Multiple Lines and Alignment (L-C-R)
Font Size Selection (L-M-S) Yes
Frames Included
Free Arm Embroidery Yes
High Speed Acceleration Yes
Jump Stitch Trim Yes
Max Embroidery Speed (Stitches per Minute) 1000
Multiple Line Input Yes
Number of Hoops (Standard Accessory) 4
Number of Spool Stands 6
On Screen Video Tutorials Yes
Pattern - Size, Change Rotation & Mirror Yes
Realistic Preview of Patterns Yes
Single Colour Pattern Converter Yes
Thread Colour Sorting Yes
Consumption Power 116 W
Eco Mode (Auto Power Off/Sleep Mode) Yes
Warranty
Adjustable Thread Tension Manual
Automatic Thread Cutter Yes
Bobbin Winder Optional
Lower Thread Sensor Yes
Needle Threading System Automatic
Upper Thread Sensor Yes
Machine Dimension (mm) 587 x 512 x 589 mm
Weight (kg) 38 kg
