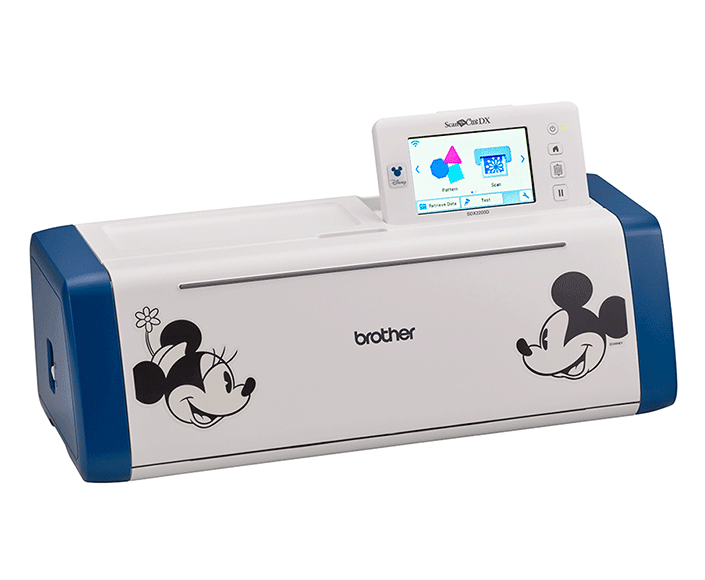

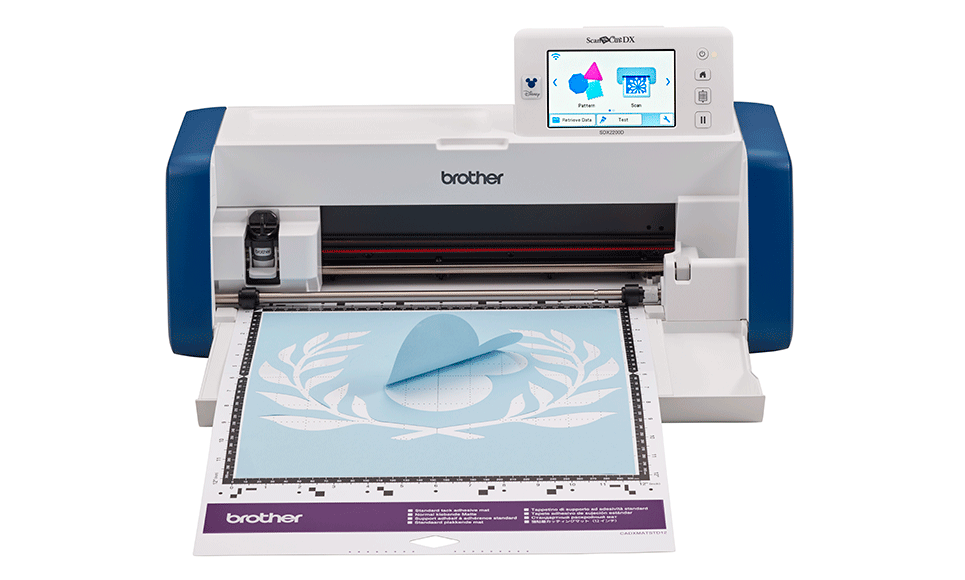

ScanNCut SDX2200D Disney Home and hobby cutting machine

Now you can recreate the magic of Disney in your own home! Whether it’s personalising your family’s wardrobe, creating beautiful home décor or making magical gifts, the SDX2200D is the only home and hobby cutting machine you need.

Overview

Scan it, cut it and create it in a matter of minutes with the SDX2200D, our most enchanted electronic craft cutting machine.

With 132 new and unique Disney designs, plus 1,303 built-in designs, including 140 quilt patterns and 17 lettering fonts, the SDX2200D is robust, quiet and packed full of incredible features. It’s your go-to crafting companion.

Standalone, the ScanNCut is the only home and hobby cutting machine that requires no extra hardware or software. The 600dpi built-in scanner allows you to scan any image or sketch and then precisely cut the shapes or outlines, with no need for design cartridges or a PC. Create endless cut and draw designs and save to your machine’s memory.

With automatic blade adjustment, anyone of any skill can quickly create with materials up to 3mm thick. Perfect for those at the start of their crafting journey, and to those who have been creating for years.

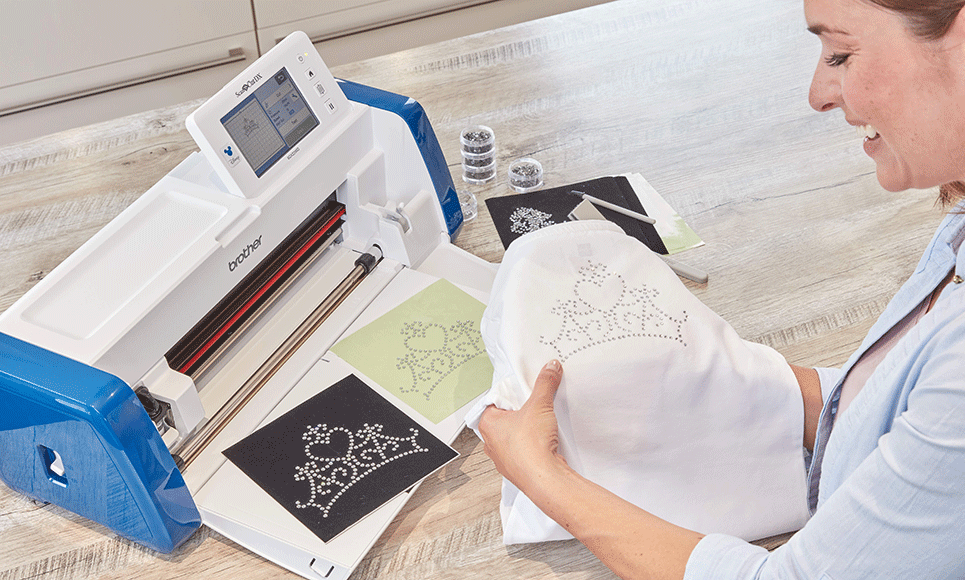

With the SDX2200 it’s even easier to add that special sparkle, as it comes with a free rhinestone trial kit. You can also unleash your inner artist with the included universal pen holder, which holds pens between 9.6 and 11.4mm in diameter.

Whether you’re a paper crafter looking to make your cards pop, a fashionista searching for your perfect look, or even if interior design is more your thing, our range of optional accessory kits will take your creative projects to the next level.

For help and advice on setting up your sewing machine, visit support.brother.com, and you can also take a look at our accessories page for our rhinestone, foiling and embossing, calligraphy, stickers and stencils kits, plus so much more.

Key Features

  • Extra-large LCD touchscreen – 5” / 12.7cm
  • Built-in scanner (scans up to 24” / 610mm)
  • Totally standalone – no PC needed
  • 1300+ built-in designs plus 132 Disney designs
  • 17 built-in fonts
  • Up to 3mm cutting depth with fully automatic blade
  • Thin fabric fully automatic blade
  • Scan your design and convert it into cut or draw data
  • 11.7” (297 mm) width cutting area
  • Reads most PES/PHC/PHX embroidery data
  • Wireless LAN connectivity
  • Includes Rhinestone Trial Kit
  • Includes Universal Pen Holder
  • Extra 20 long Disney/Pixar designs for roll feeder can be downloaded* *optional purchase of Roll Feeder necessary
  • 2 year warranty

What's in the box

Accessories included:

Low Tack Adhesive Mat 12” x 12” (305 mm x 305 mm)
Standard Tack Adhesive Mat 12” x 12” (305 mm x 305 mm)

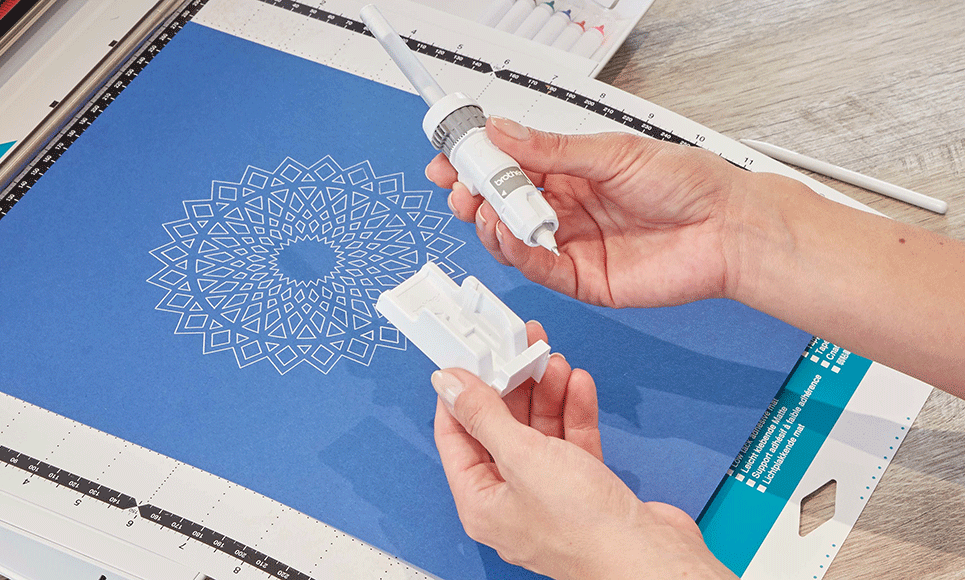

Auto Blade
Thin Fabric Auto Blade
Auto Blade Holder
Thin Fabric Auto Blade Holder
Color Pen Set
Erasable Pen Set
Pen Holder
Iron-on Fabric Appliqué Contact sheet
High Tack Adhesive Fabric Support Sheet
Universal Pen Holder
Rhinestone Trial Kit
Touch pen (stylus)
Spatula
Accessory bag
Cardstock (sample sheet: navy 12" × 12" (305 mm × 305 mm))
Product Safety Guide
Quick Reference Guide
Getting Started Guide

Features in Depth

Built-in scanner
Scan virtually anything – a drawing, magazine clipping, cherished photos and more. Create endless cut and draw designs and save to the machine’s memory.

600dpi Scan to USB
Scan and save your image jpegs direct to a USB flash drive using the built-in port.

Scan-to-cut-data
Scan, edit and create your own designs. Save and use to cut, draw, emboss, foil or paper pierce*.
*Additional purchase needed for premium functions

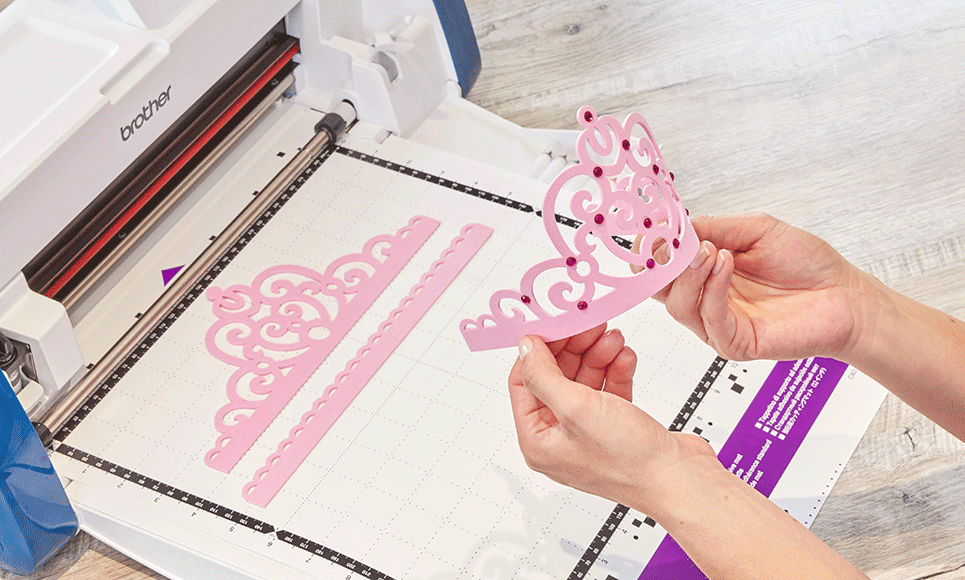

Cut up to 3mm thickness
Cut materials like foam and felt effortlessly with the auto blade.

Blade sensor technology
Auto blade detects material thickness, taking out any guesswork. Perfect cut every time.

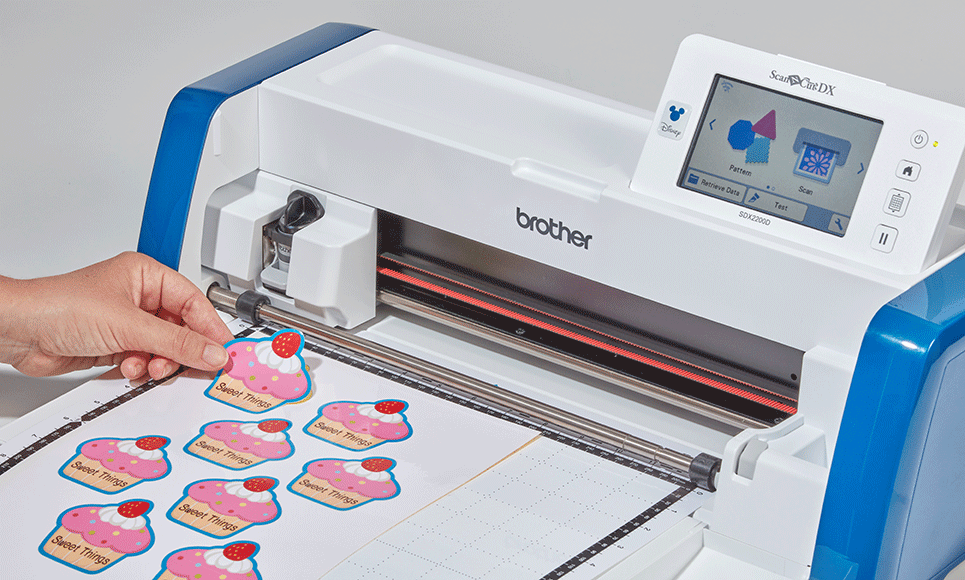

Direct cut
Remove the hassle of hand-cutting designs from papers and fabrics. Just scan, highlight and cut!
Cutting area of 297mm.

Thin Fabric Auto Blade
Especially designed to carefully cut fabric used for quilting and appliqué.

140 Built-in Quilt and Appliqué designs
Calling all quilters! Cut perfect quilting and patchwork pieces at the touch of a button.

Seam Allowance and sewing guidelines
Add a seam allowance in quarter inch increments for easy pattern piecing.

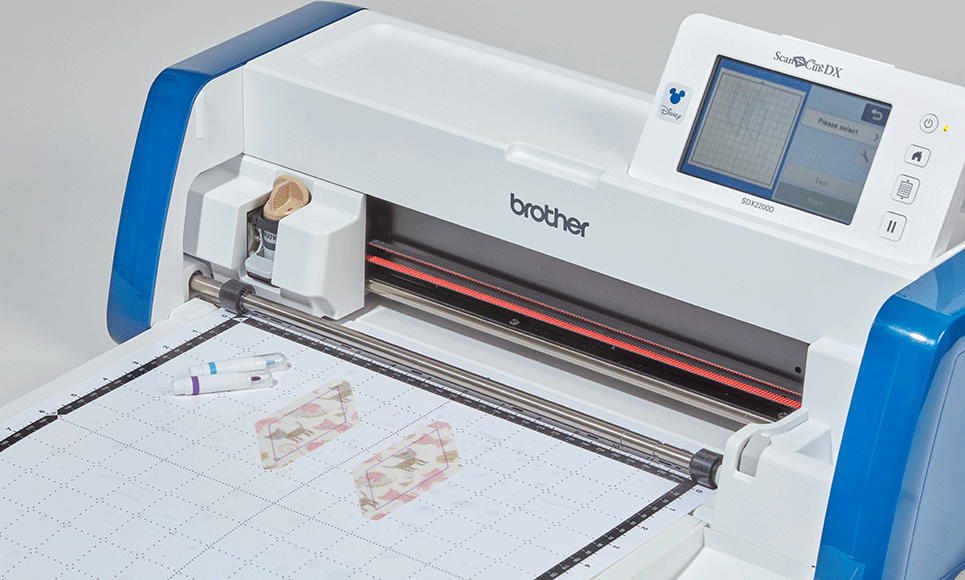

Background scanning
Scan and place your design exactly on any leftover pieces of card and fabric. Saving you mis-cuts, time and money.

Stand-alone
Create and edit your own designs. The extra-large 5” touchscreen makes it easier than ever to edit, zoom and customise with no PC or mobile device required.

1,435 Built-in patterns, including 132 Disney patterns and 17 fonts

The SDX2200D has something for every project or occasion. Comes with basic shapes, intricate designs, borders, quilt and appliqué patterns, fonts and more.

Wireless connection
Wireless connection allows you to send designs directly from your free CanvasWorkspace account.
No need for cables or USB flash drives.

SVG data readability
Can read SVG files directly - no need to convert first. More time crafting, less time converting.

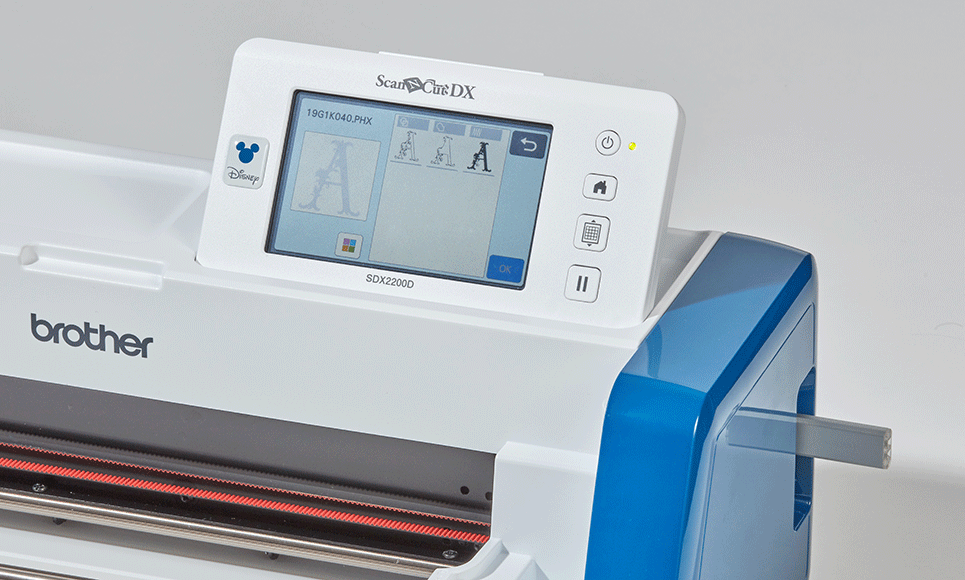

PES/PHC/PHX file readability
Convert PES/PHC/PHX embroidery data into cutting or drawing files directly on the SDX2200D.
Use as drawing, embossing and foiling data.

Pen draw
Convert cutting data into drawing designs in an instant. Use the built-in designs or your own scanned images, choose from a selection of fill patterns and watch at the ScanNCut precisely draws your design.

Specification Details

Specification Details

Machine Size Compact and Lightweight
Product Type Crafting, ScanNCut, Small Business Use
Skill Level Beginner, Expert, Intermediate, Small Business Use
Included Accessories Accessories Pouch, Auto Blade 3mm (CADXBLD1), Auto Blade Holder (CADXBLD1), Cardstock (sample sheet: 12" × 12" (305 mm × 305 mm)), Colour Pen - 6pcs (CAPEN1), Erasable Pen - 2pcs (CAPEN 2), High Tack Sheet for Fabric Cutting (CASTBL2), Instruction Manual (Online via Solution Center), Iron-on Contact Sheet (CASTBL1), Low Tack Mat 12 x 12" "/305 x 350mm (CADXMATLOW12), Pen Holder (CAPENHL1), Power Cord, Quick Reference Guide, Rhinestone Trial Kit, Spatula, Standard Mat 12 x 12" "/305 x 350mm (CADXMATSTD12), Thin Fabric Auto Blade (CADXBLDQ1), Thin Fabric Auto Blade Holder (CADXHLDQ1), Touch Pen, Universal Pen Holder (CAUNIPHL1)
Deep Cut Blade Yes
Full Auto Blade Yes
Standard Blade Yes
Thin Fabric Blade (auto blade) Yes
Direct Connection via USB Cable (cable not included) Yes
USP Port for Media 1 USB Port
Wireless Interface WLAN Connection
Scanner Resolution (optical) 600dpi
Scanning Area 12 x 24" (305 x 610 mm)
Display Size 5"
Display Type LCD Colour Touchscreen
Auto Power Off Yes
Sleep Mode Yes
Adjustable Holder Pressure Automatic
Blade Depth Adjustment Automatic
Built-In Designs 1.435
Built-In Fonts 17
Built-In Quilt Patterns 140
Cutting Area 305 x 610mm (12 x 24")
Maximum Thickness for Cutting Auto Blade: 3mm, Deep Cut Blade: 1.5mm, Standard Blade: 0.7mm
PES Yes, all PES Data
SVG Via Canvas Workspace or Direct Import to the Machine
Edit On-screen Yes
Max Cutting Depth 3mm
Scanner Yes
Standalone/PC Peripheral Standalone
WLAN Capability Yes
Accessories Brayer (CABRY1), Precision Tweezers (CATWZ1), Scraper Tool (CASCP1), Spatula and Hook Set (CASPHK1)
Consumables Auto Blade 3mm (CADXBLD1), Auto Blade Holder (CADXBLD1), Colour Pen - 6pcs (CAPEN1), Deep Blade Holder (CAHFL1), Deep Cut Blade (CABLDF1), Erasable Pen - 2pcs (CAPEN 2), High Tack Sheet for Fabric Cutting (CASTBL2), Iron-on Contact Sheet (CASTBL1), Low Tack Mat 12 x 12" "/305 x 350mm (CADXMATLOW12), Low Tack Mat 12 x 24" "/305 x 610mm (CADXMATLOW24), Pen Holder (CAPENHL1), Scanning Mat 12 x 24"/305 x 610mm (CADXMATS24), Standard Blade Holder (CAHLP1), Standard Cut Blade (CABLDP1), Standard Mat 12 x 24" "/305 x 610mm (CADXMATSTD24), Standard Mat 12 x 12" "/305 x 350mm (CADXMATSTD12), Thin Fabric Auto Blade (CADXBLDQ1), Thin Fabric Auto Blade Holder (CADXHLDQ1)
Design Collections 3D model Pattern USB4 (CAUSB4), Applique Pattern USB2 (CAUSB2), Box Collection (CAPPNP02), Calligraphy Font Collection - Gothic and Uncial (CADXCLGFP01), Christmas Decoration Collection (CACDCP01), Design Collection 1 for Roll Feeder (CADXRFDP01), Disney Alice in Wonderland Design Collection (CADSNP09), Disney Cinderella and Ariel Paper Craft Collection (CADSNP07), Disney Rapunzel and Aurora Paper Craft Collection (CADSNP08), Home Decor USB3 (CAUSB3), Paper Piercing Design Collection (CADXPPDP01), Quilt Pattern USB1 (CAUSB2), Tattered Lace Collection 1 (CATTLP01), Tattered Lace Collection 10 (CATTLP10), Tattered Lace Collection 11 (CATTLP11), Tattered Lace Collection 12 (CATTLP12), Tattered Lace Collection 13 (CATTLP13), Tattered Lace Collection 14 (CATTLP14), Tattered Lace Collection 15 (CATTLP15), Tattered Lace Collection 2 (CATTLP02), Tattered Lace Collection 3 (CATTLP03), Tattered Lace Collection 4 (CATTLP04), Tattered Lace Collection 5 (CATTLP05), Tattered Lace Collection 6 (CATTLP06), Tattered Lace Collection 7 (CATTLP07), Tattered Lace Collection 8 (CATTLP08), Tattered Lace Collection 9 (CATTLP09)
Premium Functions ScanNCut Canvas Premium Pack No. 1 (Enhanced Image Tracing / 125 design patterns) (CACVPPAC1), ScanNCut Canvas Premium Pack No. 2 (Enhanced Image Tracing / 25 design patterns) (CACVPPAC2)
Premium Kits and Refills Acrylic Stamp Block Set (CASTPBLS1), Calligraphy Pen Set (CADXCLGPEN1), Calligraphy Starter Kit (CADXCLGKIT1), Embossing Mat (CAEBSMAT1), Embossing Metal Sheets (Silver) (CAEBSSMS1), Embossing Metal Sheets (Bronze) (CAEBSBMS1), Embossing Starter Kit (CAEBSKIT1), Embossing Template Sheets (CAEBSTS1), Embossing Tool Set (CAEBSKIT1), Foil Blue (CAFTSBLU1), Foil Glue Pens (CAFTGP1), Foil Gold (CAFTSGLD1), Foil Green (CAFTSGRN1), Foil Pink (CAFTSPNK1), Foil Red (CAFTSRED1), Foil Silver (CAFTSSIL1), Foiling Starter Kit (CAFTKIT1), Paper Piercing (CADXPPKIT1), Paper Piercing Mat 12" × 12" (305 mm × 305 mm) (CADXPPMAT1), Paper Piercing Tools (CADXPPTL1), Printable Mini Sticker Sheet Set (CAPSSMINI1), Printable Sticker Sheet Set (CAPSS1), Printable Sticker Starter Kit (CAPSKIT1), Rhinestone Sheet Set (CARSSH1), Rhinestone Starter Kit (CARSKIT1), Rhinestone Transfer Sheets (CARSTS1), Stamp Sheets (CASTPS1), Stamp Starter Kit (CASTPKIT1), Stencil sheet (CASTCL1)
Roll Feeder Roll Feeder (CADXRF1), Roll Feeder Cutter (CADXRFC1)
CanvasWorkspace for PC and Mac Yes
CanvasWorkspace for Web Yes
Size 531 x 215 x 173 mm
Weight 58 kg
Warranty Brother 2 year Warranty *Commercial use only 1 year warranty
