Innov-is Stellaire XJ1 sewing, quilting and embroidery machine

Because you’re an accomplished creative who wants a perfect finish, every time, we’ve designed the Stellaire Innov-is XJ1 just for you. With the latest in sewing and embroidery technologies you’ll get consistent stitch length, laser straight lines and uniform edge stitching, whenever you sit down to sew.

Overview

The Stellaire Innov-is XJ1 sewing and embroidery machine is designed for those whose creativity knows no bounds.

Express yourself with 727 built-in decorative stitches, and four sewing fonts and 727 embroidery designs, including Disney and monograms, colour shuffling and enhanced thread palettes.

With Stellaire’s new My Design Snap app you can use your mobile device for quick, easy and precise embroidery positioning. Just take a picture of your fabric in the special embroidery hoop and wirelessly send the data to your Stellaire.

You don’t even need a PC to get designing on your Stellaire!

The Stellaire comes with My Design Center built in, for powerful, easy-to-use editing where you can create your own custom works of art. Draw straight into My Design Center using the Stellaire’s large touch screen or import your own jpegs and turn them into embroidery. You can even pair My Design Center with My Design Snap to convert your own images into unique embroidery designs. You can ‘draw’ straight onto your fabrics, using the touchscreen to convert your designs into embroidery data.

The extra large embroidery area of 240 x 360mm (9.5 x 14”) allows you to work on bigger projects, and with the bright 10.1” HD LCD display with five adjustable light settings, you can create at any time.

With 11.25” from needle to arm you can achieve anything you can imagine. From quilts to curtains, wedding dresses to bulky coats, there’s always space on the Stellaire Innov-is XJ1 to work quickly and comfortably.

For help and advice on setting up your sewing machine, visit support.brother.com, and you can also take a look at our accessories page to make sure you have everything you need to get started.

Key Features

  • Extra-large embroidery area: 9.5 x 14" (360 x 240mm)
  • Up to 1050spm embroidery speed
  • 10.1” High resolution LCD screen
  • Wireless capability to work with My Design Snap app, and to import data from PE-Design 11
  • My Design Snap positioning app for easy positioning
  • 727 built-in embroidery designs, including 101 Disney designs
  • 24 embroidery fonts (22 alphabets and 2 cyrilic fonts)
  • Stitch to Block funtion - change size of embroidery keeping the stitch density
  • LED pointer embroidery foot
  • Enhanced font editing functions
  • Colour shuffling with favourite setting
  • Automatic electronic needle threader
  • Auto jump stitch trimmer
  • USB port – making it easy to import designs
  • 17 Built-in teaching movies
  • 5 year warranty (1 year for commercial use)

What's in the Box

Accessories included:

Zigzag foot “J” (on machine)
Monogramming foot “N”
Overcasting foot “G”
Zipper foot “I”
Buttonhole foot “A”
Blind stitch foot “R”
Button fitting foot “M”
Dual feed foot
Straight stitch foot
Free motion open toe quilting foot “O”
Embroidery foot “W+” with LED pointer
1/4 quilting foot with guide
Adapter
Screw (small)
Needle set: 75/11 2 needles, 90/14 2 needles, 90/14 2 needles: Ball point needle (gold colored)
Twin needle: 2.0/11 needle
Ball point needle set: 75/11 2 needles: Ball point needle for embroidery
Bobbin × 10  (One bobbin is in machine.)
Seam ripper
Scissors
Cleaning brush
Eyelet punch
Screwdriver (small)
Screwdriver (large)
Disc-shaped screwdriver
Spool cap (small)
Spool cap (medium) × 2 (One spool cap is on machine.)
Spool cap (large)
Thread spool insert (mini king thread spool)
Bobbin clip × 10
Spool felt (on machine)
Spool net × 2
Embroidery needle plate cover
Touch pen (stylus)
Knee lifter
Foot controller
Standard bobbin case (green marking on the screw) (on machine)
Alternate bobbin case (no color on the screw)
Straight stitch needle plate
Cord guide bobbin cover (with single hole)
Bobbin cover (with mark)
Bobbin cover (on machine)
Embroidery frame with decal set: H 36 cm × W 24 cm (H 14 inches × W 9-1/2 inches)
Embroidery frame with decal set: H 18cm × H 13cm (H 7 inches × W 5 inches)
Embroidery positioning sticker sheets × 4
Lens calibration sheet
Embroidery bobbin thread (#60, white)
Stabilizer material
Grid sheet set
Chalk pencil
Operation Manual
Quick Reference Guide
Accessory Bag
Vertical spool pin
Dust cover

Included accessories subject to change without notice.

Features in Depth

General Features

Workspace

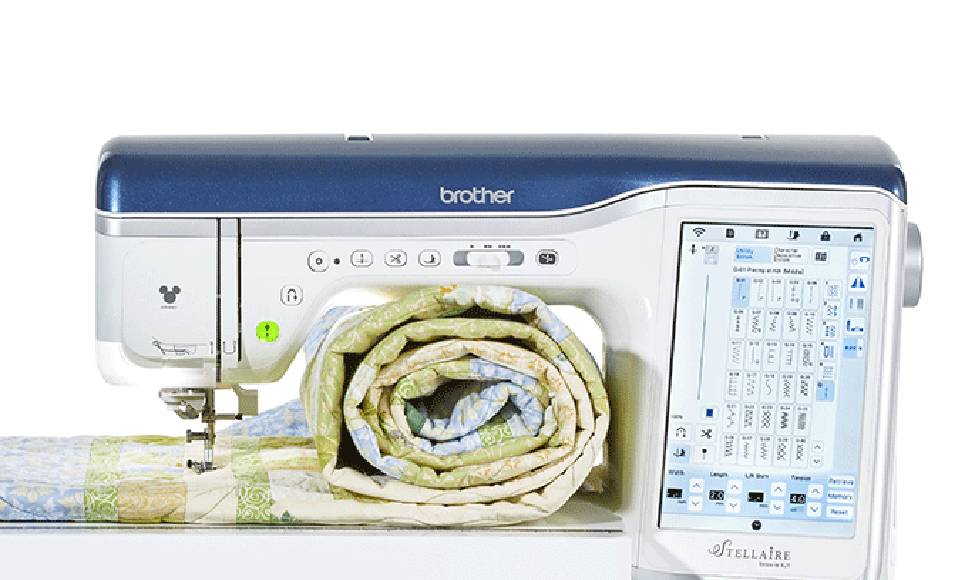

11.25” (285) long arm to the right of the needle and 5” height from sewing bed to top of machine arm

Lighting
Almost 11” of full-spectrum lighting around the needle with five adjustable brightness settings

Needle threader
Easy to use, automatic needle threading system

Bobbin winder
Independent bobbin winder system with adjustable winding speed

Wireless
Wireless LAN capability for exchange of embroidery data with PE-Design 11 and My Design Snap mobile app

Thread tension
Automatic thread tension

Thread cutter
Trims upper and lower threads automatically

Presser foot
Automatic presser foot lift and extra high lift

Thread sensors
Gives you a warning when your upper and lower threads are running low

Teaching movies
Up to 24 built-in teaching videos and MP4 playability

Environment
Save energy with the Eco and Deep Sleep modes

My Design Center
Create your own designs on-screen

My Design Snap
Mobile app for perfect placement of embroidery designs

LCD Display
Large and clear 10.1" (800 x 1280px) built-in HD LCD display

Intuitive user interface
Easy-to-use screen layout and realistic preview of selected stitches and patterns

USB connectivity

Two high-speed USB ports to upload designs easily. Can also use an optional external USB embroidery card reader for older Brother design cards

Multilingual
12 built-in languages

Safety features
Easily disengage needle to make changing presser feet and needles safer, and lock the screen to avoid any accidental stitch changes

Updates
Software update capabilit


Embroidery Features

Embroidery area
Large 9.5 x 14" / 240 x 360mm embroidery area

Embroidery speed

Embroidery up to 1,050 stitches per minute

Built-in designs

Total 727 embroidery pattterns including 101 Disney, monogram and buttonhole shapes

Built-in fonts
Built-in 24 embroidery fonts (22 Alphabet & 2 Cyrillic)

Text edit functions
Simplified user interface for text input and editing, with various editing capabilities such as curving, arraying and space adjustment

Font sizes
S/M/L size for font designs

Built-in frame designs
140 frame pattern combinations

Thread trimming
Jump stitch thread trimming with thread wiper

Density
On-screen auto density adjustment (Stitch-To-Block) available for embroidery and letters

LED pointer
Laser pointer for precise pattern placement

Advanced editing functions
Design editing, flip designs horizontally, pattern rotating (0.1, 10 and 90 degrees), drag and drop operation, zoom up to 200%

Basting

Embroidery basting

Colour Shuffling
Color shuffling function that can choose one thread brand with more colour variations, with pinning, and favourite mark capability

Stippling
No-fuss stippling in embroidery edit

Selecting Designs
Advanced multiple design selection

Colour change
Direct touch button for changing colours of embroidery patterns

Resume function
Resume your embroidery at the exact spot where you stopped incase of a power failure or accidental interruption

Appliqué creator
Built-in Appliqué Creator; create multiple appliqués in one hoop

Optimised colour sorting
Quickly sort colours in different designs for optimised sewing order and to minimise thread changes

Frame detection

Automatic embroidery frame size detection

Progress bar

View the progress of an embroidery pattern or individual colour, and use to move forwards/backwards through the design

Thread palettes
Select various thread brands for built-in and external designs

Included frames

Two standard frames, compatible with My Design Snap,  included 240 x 360mm (9.5 x 14") and 130 x 180mm (5 x 7")



Sewing Features

Built-in sewing stitches
Total of 727 utility, decorative stitches and buttonholes

Lettering fonts
Four built-in sewing lettering fonts (three alphabet, 1 Cyrillic)

Sewing speed
Sew up to 1,050 stitches per minute

Combination stitches
Individual adjustment for combined stitches (depending on category)

My Custom Stitch™
My Custom Stitch™ gives you the ability to combine and edit custom stitches. Includes 185 built-in sample stitches

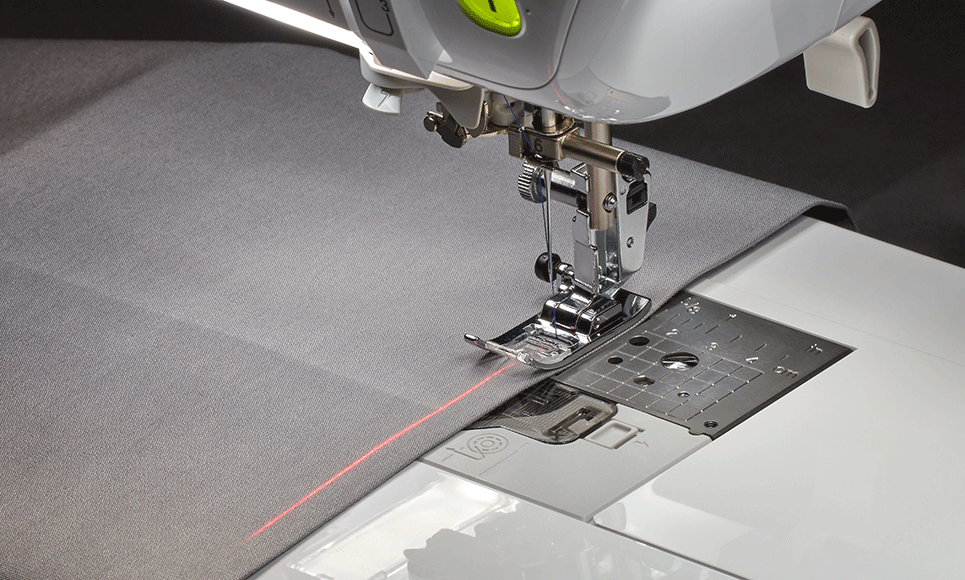

Laser guideline marker
Guideline marker with 19mm side shift capability

ICAPS fabric sensor system
Continuously adjusts presser foot pressure

Lock stitch
Reinforcement stitch at start and end of sewing

Dual feed
Digital Dual Feed System for even and consistent sewing on all fabrics

Pivot and foot height
Lightning-quick pivoting functionality with customisable foot height

SFDS
Square feeding system with powerful and long feed dogs

Needle plate detector
Needle plate detector for safe operation

Straight stitch
Straight stitch needle plate and straight stitch foot included

Ruler
Ruler design with zero mark at the needle

Free motion

Presser foot height adjusts according to the thickness of the fabric

Drop feed function
Convert to free motion mode easily with a touch of a button on screen

Automatic presser foot functions
Bring presser foot down automatically using the Start/Stop button, knee lift and foot pedal

Specification Details

Specification Details

Machine Size X-Large
Product Type Embroidery, Quilting, Sewing, Small Business Use
Skill Level Expert, Small Business Use
Accessory Box Yes
Bobbin Type Horizontal
Case Semi-rigid soft case
Machine Type Electronic
Insertion of Bobbin Top Load Drop-in Bobbin
Instructional Manual PDF Viewer Yes
Lighting 7 LEDs
Number Of Needles 1
USB Port 2 Hosts (2.0/2.0) / 0 Slave
Wi-LAN Function Yes
Display Size 10,1"
Type of Screen High-Resolution IPS LCD-Touchscreen
Built In Monogram Styles 265
Built-In Embroidery Frame Patterns 140 (10 shapes x 14 stitch types)
Built-In Lettering Styles (Embroidery) 24(22 Alphabet, 2 Cyrillic)
Built-In Patterns 727
Colour Shuffling Yes
Embroidery Area in mm 240 x 360mm (9.5 x 14")
Font Editing Functions/Multiple Lines and Alignment (L-C-R) C
Font Size Selection (L-M-S) Yes
Frames Included Embroidery frame: 9.5 x 14" (240 x 360 mm), Embroidery Frame: 5 x 7" (130 x 180 mm)
Jump Stitch Trim Yes
LED Pointer Embroidery foot included
Max Embroidery Speed (Stitches per Minute) 1050
Multiple Line Text Input Yes
My Design Center Yes
New UI (Slide Scroll Operation) Yes
Number of Spool Stands 2
On Screen Video Tutorials Yes
Pattern - Size, Change Rotation & Mirror Yes
Realistic Preview of Patterns Yes
Single Colour Pattern Converter Yes
Thread Colour Sorting Yes
Eco Mode (Auto Power Off/Sleep Mode) Yes
Adjustable presser foot Electronic
Automatic reverse / reinforcement stitch Yes
Bobbin Work Optional
Built-In Lettering Styles 4
Buttonholes 16
Circular Sewing Optional
Combine stitches Yes
Continuous Automatic Pressure System (ICAPS) Yes
Direct Dual Feed Yes
Drop feed setting Electronic
Electronic slide speed control yes
Extension Wide Table Optional
Free arm sewing Yes
Knee lift Yes
Laser Function Yes
Max. Sewing Speed (Stitches per minute) 1050
Mirror imaging Yes
Multi-Directional Sewing Yes (up to 8 sideways)
Multi-function foot controller Optional
My Custom Stitch Yes
Needle Positions 29
Needle Stop Position Control Up/Down Yes
Number of sewing stitches *incl. buttonholes 727
Pivot function Yes
Presser Foot Levelling Button Yes
Repeated single sewing Yes
Snap on Presser Feet System Yes
Speed control customised for zigzag width Yes
Workspace (cm) 28.5
Warranty Brother 5 year Warranty *Commercial use only 1 year warranty
Adjustable Thread Tension Automatic
Automatic Thread Cutter Yes
Bobbin Winder Independant
Lower Thread Sensor Yes
Needle Threading System Automatic
Upper Thread Sensor Yes
Machine Dimension (mm) 662x321x348
Weight (kg) 17.1
