Features and Specifications
Other
| Machine Size | Large |
|---|---|
| Product Type | Embroidery |
| Skill Level | Expert |
General Machines
| Case | Soft Case |
|---|---|
| Hardware Type | Electronic |
| Insertion of Bobbin | Quick Set Bobbin |

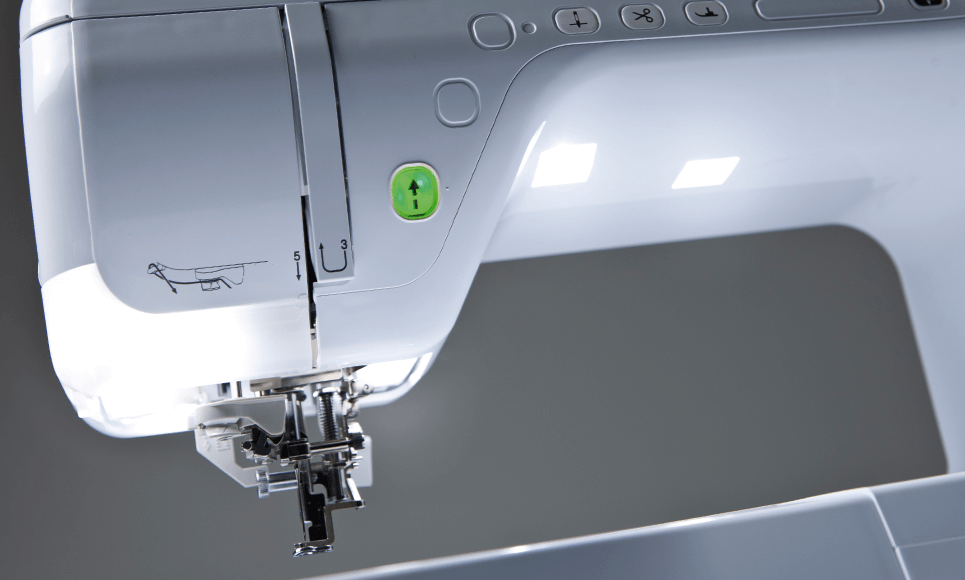

| Lighting | 6 LEDs |
| Number Of Needles | 1 |
Connectivity

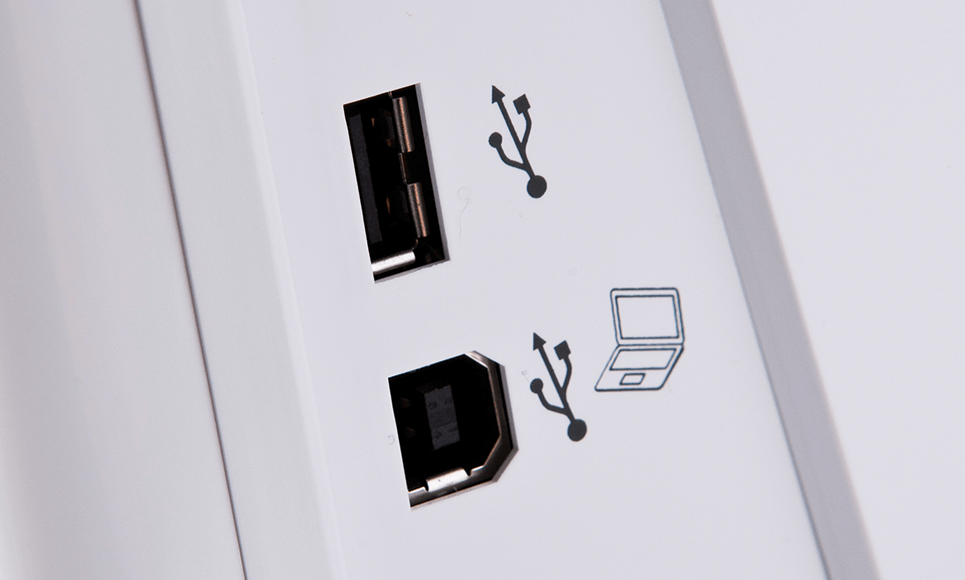

| USB Port | PC and USB Port |
|---|
Display
| Display Resolution (Pixel) | 480 x 800 |
|---|---|
| Display Size | 7" |
| Type of Screen | LCD-Touchscreen 260.000 Colous |
Embroidery
| Built-In Lettering Styles (Embroidery) | 17 |
|---|---|
| Built-In Patterns | 224 |
| Creating a Custom Thread Table | Yes |

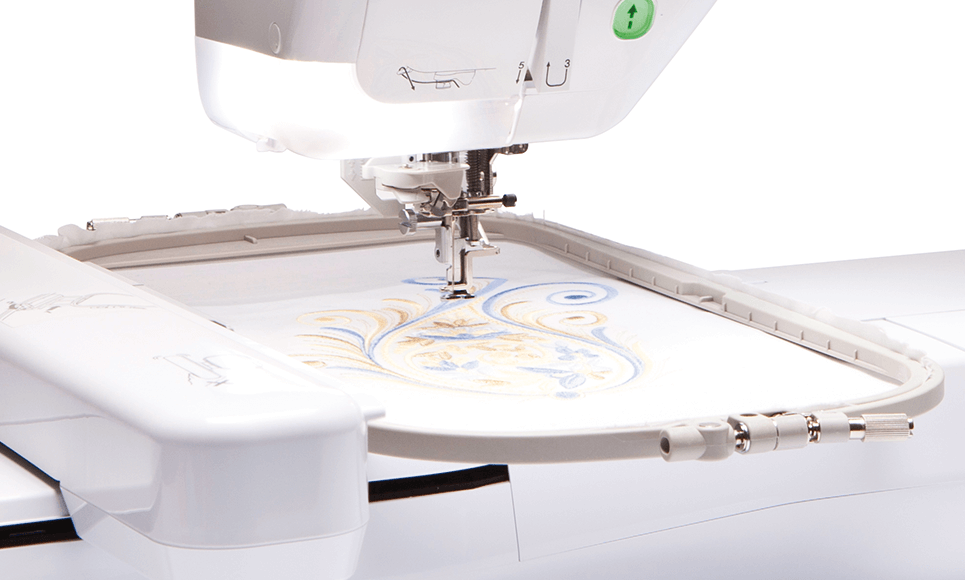

| Embroidery Area in mm | 180 x 300 (200 x 300**) |
| Font Editing Functions/Multiple Lines and Alignment (L-C-R) | |
| Font Size Selection (L-M-S) | Yes |
| Frames Included | 100 x 100 mm (4 x 4”), 180 x 130 mm (7 x 5"), 300 x 180 mm (12 x 7”), 300 x 200 mm (12 x 8”) |
| Jump Stitch Trim | Yes |
| LED Pointer | Optional Foot |
| Max Embroidery Speed (Stitches per Minute) | 1050 |
| Multiple Line Input | Yes |
| Number of Hoops (Standard Accessory) | 2 |
| Number of Spool Stands | 2 |
| On Screen Video Tutorials | Yes |
| Pattern - Size, Change Rotation & Mirror | Yes |
| Realistic Preview of Patterns | Yes |
| Single Colour Pattern Converter | Yes |
| Built-In Embroidery Frame Patterns | 140 (10 shapes x 14 stitch types) |
Environment
| Consumption Power | 67 W |
|---|---|
| Eco Mode (Auto Power Off/Sleep Mode) | Yes |
Warranty Information
| Warranty |
|---|
Threading
| Automatic Thread Cutter | Yes |
|---|---|

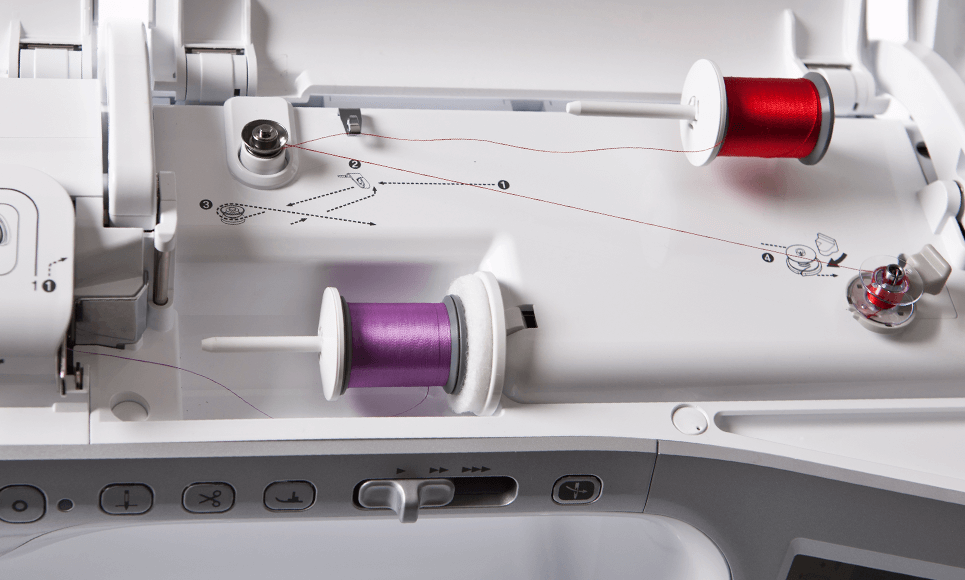

| Bobbin Winder | Independant |
| Lower Thread Sensor | Yes |

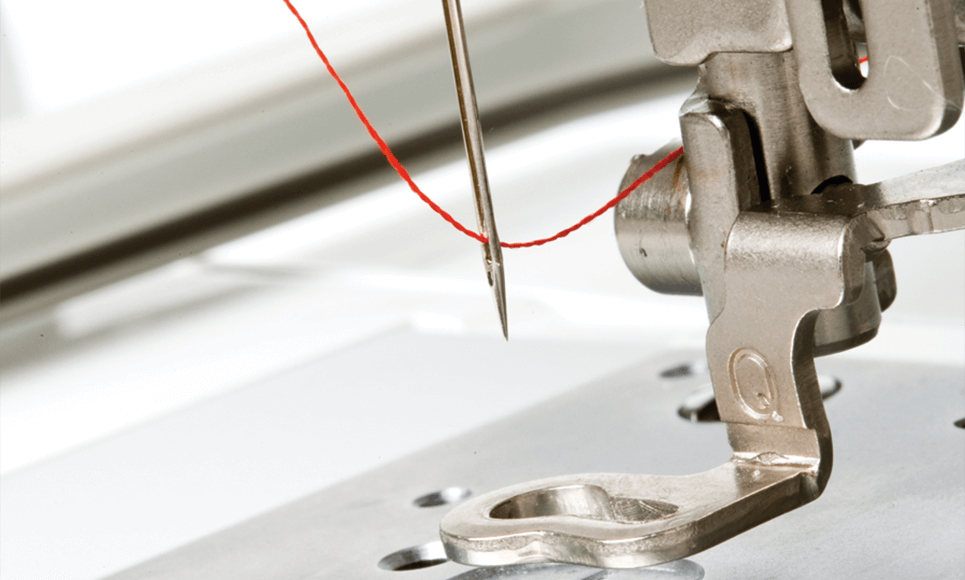

| Needle Threading System | Advanced Electronic |
| Upper Thread Sensor | Yes |
Weight and Measurements
| Machine Dimension (mm) | 571x284x332 mm |
|---|---|
| Weight (kg) | 13.8 kg |
